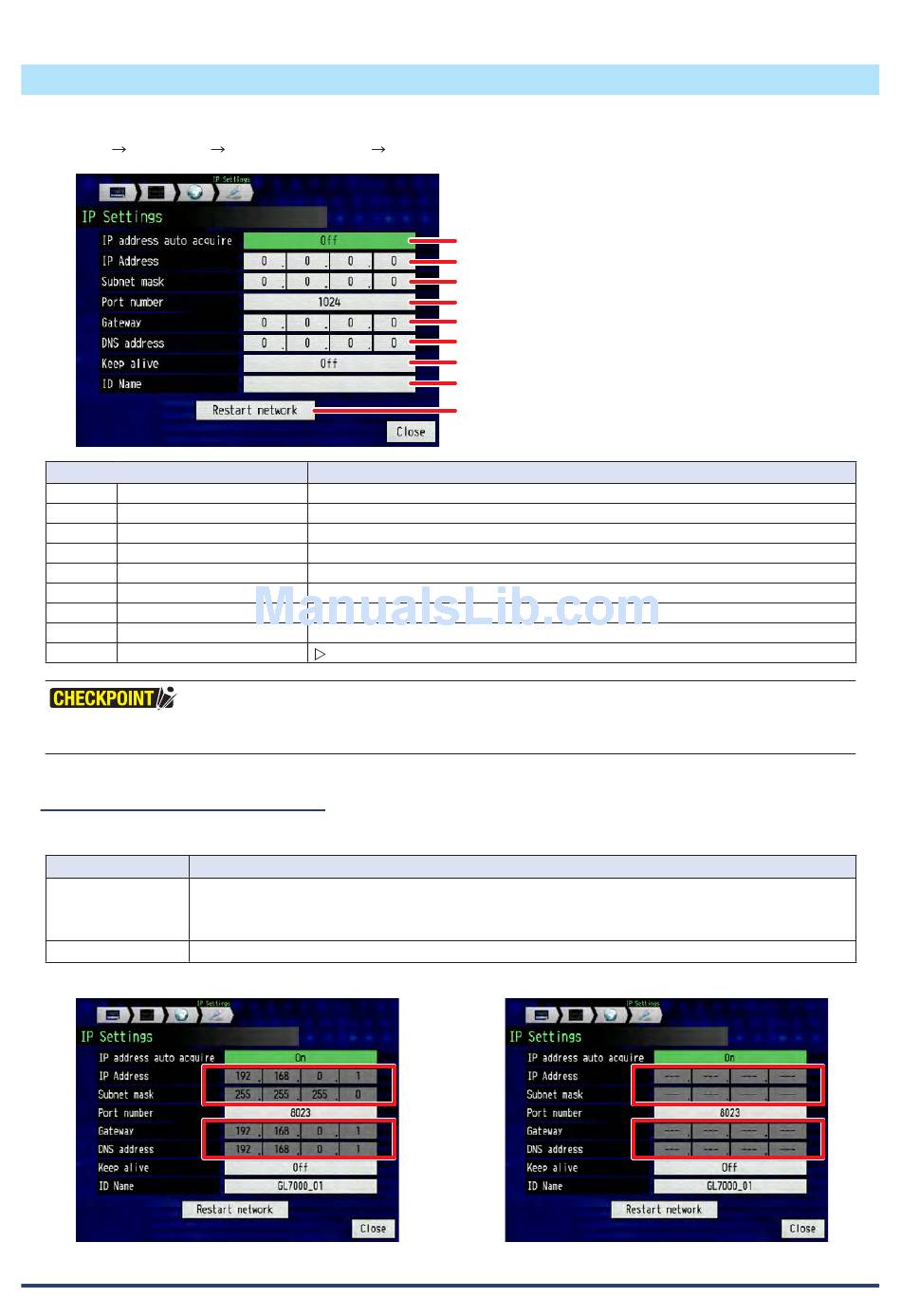

(7) IP settings

Settings for connecting to the GL7000 by Ethernet.
("Home" "Machine" "Network settings" " IP settings")
Item select
(7)-1 IP address auto acquire
(7)-2 IP Address
(7)-3 Subnet mask
(7)-4 Port number
(7)-5 Gateway
(7)-6 DNS address
(7)-7 Keep alive
(7)-8 ID Name
(7)-9 Restart network
Settings (7)-1 through (7)-6 manage network connections for the GL7000. Please consult you network administrator
before making any changed.
(7)-1 IP address auto acquire
Sets whether the IP address should be acquired automatically or entered manually.
Item select
On (Use) Sets it to automatic acquisition. (7)-2, (7)-3, (7)-5, (7)-6 cannot be selected.
* When setting it to "Use", the automatic acquisition action (occurs when the power is turned on
Off (Don't use) Sets it to manual entry. Please set the (7)-2 to (7)-6 items in the table above.
<When IP address is successfully auto-accrued>
After a successful automatic acquisition, the automatically set IP address is displayed.
On (Use), Off (Don't use)
0 to 255
0 to 255
1024 to 65535
0 to 255
0 to 255
Off, 10 and 30 sec., 1, 10 and 30 min., 1 hr.
Text input
Execute
or when executing settings reflecting) may take from a few seconds up to 1 minute.
(7)-1
(7)-2
(7)-3
(7)-4
(7)-5
(7)-6
(7)-7
(7)-8
(7)-9
Examples of item
Description
< When IP address is not auto-accrued>
CHAPTER 3 Measure and Set
3-69
