CHAPTER 3 Measure and Set
(4) Turn on the machine. When powered up, external memory will be recognized on the PC allowing file
exchange.
•
When clearing the USB Drive Mode, turn off the power once, slide the switch on the side to "OFF", and turn the
power back on.
•
When using the USB Drive Mode, all operations, such as data recording and data replay, temporarily stop
functioning.
•
When using the USB Drive Mode, the USB driver must be installed on the PC.
The "USB driver" and "USB driver installation instructions" are stored on the attached CD. Please install
according to the instructions.
Location of Instructions:
D:¥USB Driver¥Japanese¥GL-USB-UM15X.pdf (D:¥ is the drive where the CD is inserted. It changes depending
on the computer.)

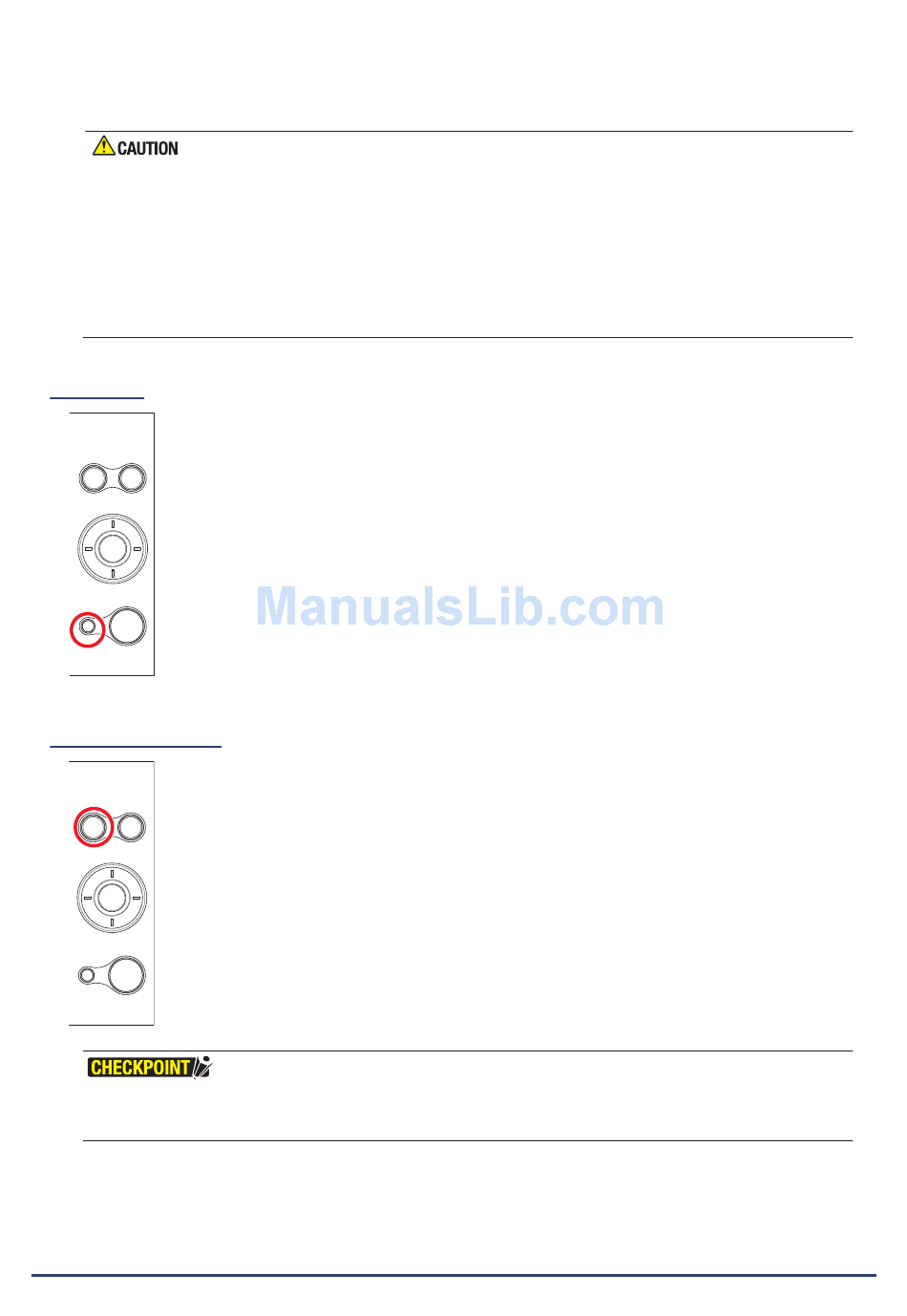

(5) LOCK
DATA PLATFORM GL7000
QUIT HOME
ENTER
START
STOP
LOCK
(6) QUIT (LOCAL)
DATA PLATFORM GL7000
QUIT HOME
ENTER
START
STOP
LOCK
•
Pressing the QUIT key on the screen that icons and buttons are displayed will close all menus and open the
waveform display.
•
Pressing the QUIT key on the screen that setting values are selected will return to the previous screen.
3-42
Pressing this key for 2 seconds or more lets you set or clear the key-lock.
A password can also be set to clear the key-lock. For details, see the "Set and clear the
key-lock with the password" on page 3-43.
These keys are primarily used for the following functions:
•
In the MENU settings, cancels the settings selections.
•
Clears the remote status (where the keys are not functioning) depending on the
interface arrangement.
•
Closes the MENU screen.
•
Ends data replay.
•
For the Alarm settings, when "Alarm hold" is set to On, the retained alarms are cleared.
