CHAPTER 3 Measure and Set

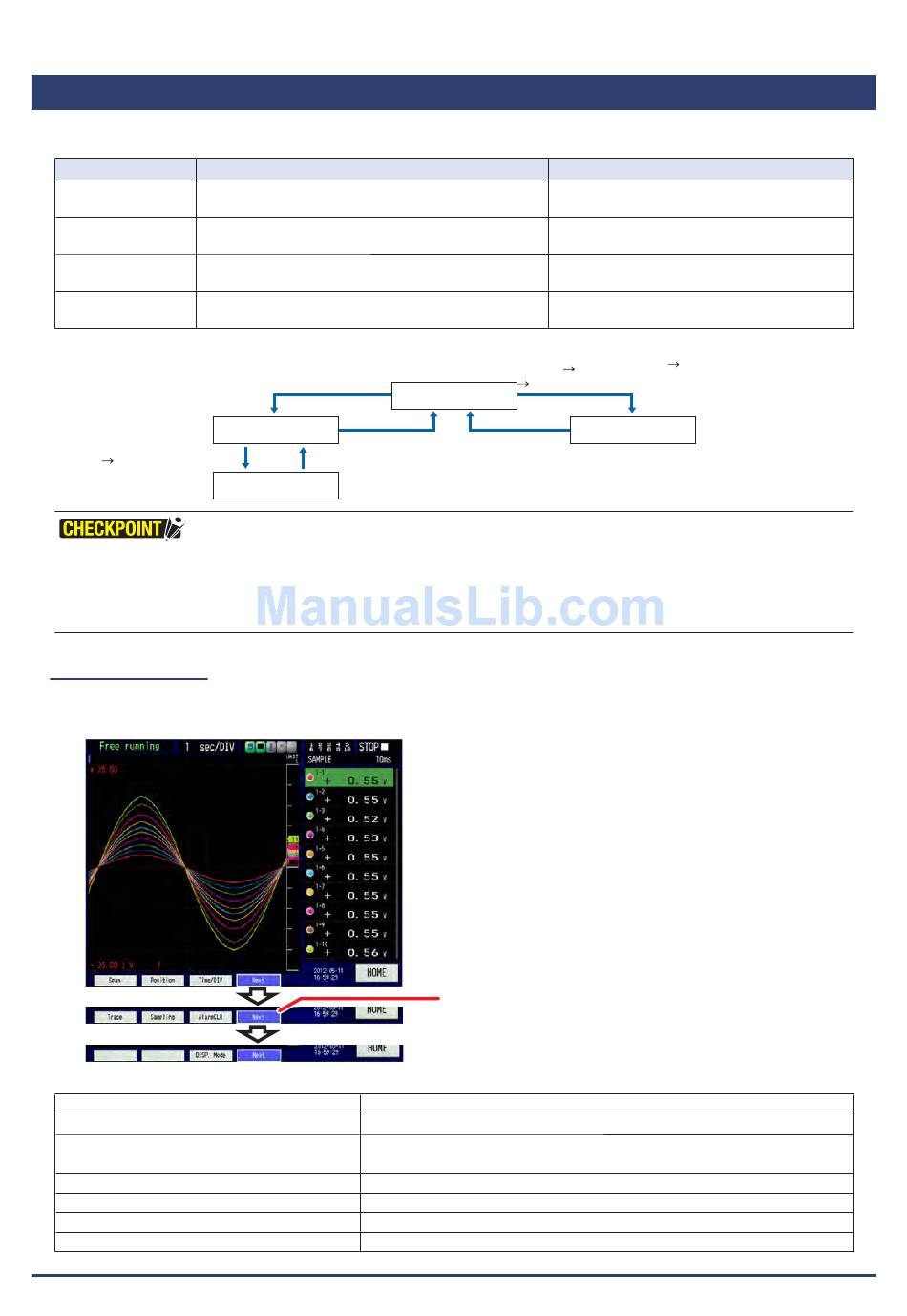

3.5 Description of Each Operating Mode

Each operation status can be checked with the "Simple message display".
Action
Free running
Recording
2 screen replaying
Replaying
<Action status transition diagram>
"Home" "Double-screen relay"
•
For recording with the built-in RAM, the "Double-screen" cannot be selected.
•
When the sample interval is less than 100 ms, "Double-screen replay" is not available.
•
When the recording format is "CSV", "Double-screen replay" is not available.
•
When the sampling interval used in recording with the built-in RAM is 500 μs or less, the recording stops, and then it is
automatically replayed.
(1) Free running
During free running, mainly settings for recording are being carried out.
The current input signal can be accessed as a waveform or a digital value.
Possible main actions during free running
Changing the measurement conditions settings Various measuring conditions can be set (See page 3-48).
Waveform control
Change the display mode
Clearring the alarm
File operations
Data replay
Changing the timescale
3-44
Action name
When neither being launched nor when a recording
is performed.
Data is being recorded to the various sorage device
devices.
Playback of the current waveform display and data
during recording.
Replaying already recorded data.
START/STOP key
Recording
START/STOP key
QUIT key
2 screen replaying
The waveform position can be moved, and zoomed in or out (See page 3-112).
Y-T, Y-T (all screens), logger, XY, FFT displays can be switched.
(See page 3-114).
If an alarm is set, it may be cleared. (See page 3-5).
Various file operations can be performed (See page 3-28).
Recorded data can be replayed (See page 3-129).
Changes timescale on the time axis (See page 3-112).
Free running
RAM recording, Memory recording,
SD card recording, SSD recording.
Memory recording, SD card recording,
SSD recording.
Replaying RAM, Memory Review,
Replaying SD card, Replaying SSD.
"Home" "Replay" Select
"Replay" Execute
Free running
QUIT key
Each time you touch the "Next", the function of the Function
button is changed. The Function button allows you to modify
the time scale, to process the waveform, to set the sampling, to
clear the alarm, and to change the display mode.
Simple message display
"Replay source" Select
Replaying
