Item select
(4)-3 Repeat output
(4)-4 Emergency stop alarm CH
(4)-5 Output level at the time of Stop
(4)-6 Data load
(4)-7 Start output
(4)-1 DCO module settings
Set the Voltage Output Module (GL7-DCO).
This can be set from "Home"
(4)-1-(a) Output source
Select the processing destination in which the analog voltage data has been recorded.
Built-in RAM: The data recorded in the built-in RAM in the module.
File: The data in the recording destination (storage media)
(4)-1-(b) File name
When the output source is set to File in (4)-1-(a), select the data file in the recording destination.
However, when the built-in RAM is selected, this item is not displayed.
The file to be use here is GBD file data (binary format) only.
When the CSV file wave-generated by the GL-WaveEditor (software supplied with the GL-Connection) is saved, the CSV
file can be converted to the GBD file data with the conversion saving function (refer to "Convert then save" in "11-11-2.
File Operations") of the GL-Connection.
(4)-1-(c) Output sampling interval
The data output interval for the analog voltage output can be set within the range of 10_s to 1h.
(4)-1-(d) Data points
Set the data points for the analog voltage output. The data points can be set up to 28,000,000 points.

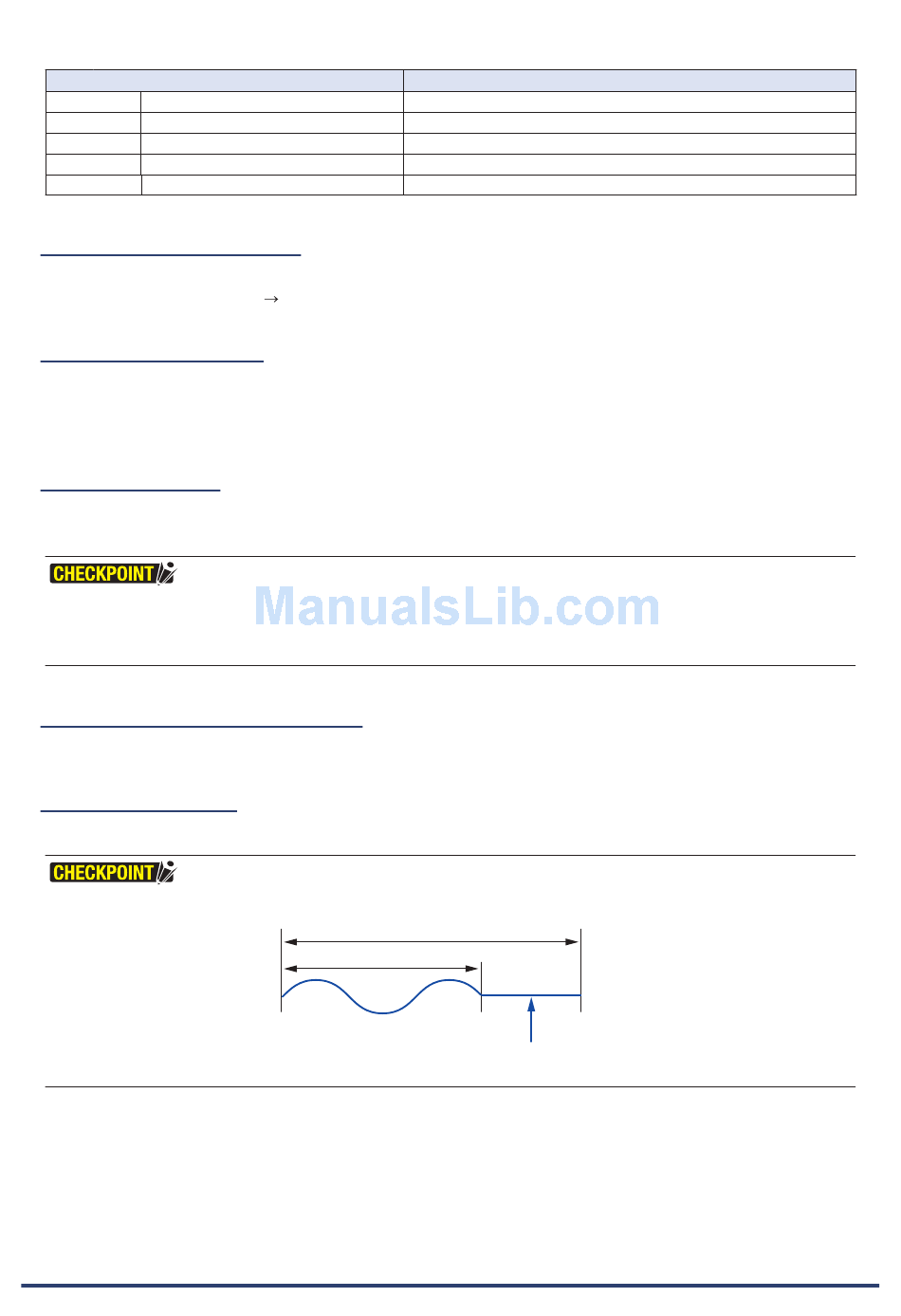

When the data type is set to Data file, the data with more data points than the recording points is the same as the analog
voltage of the last data in data file.
* When the set data points are less than the number of file data, the data for the set data points is output.
Off, On
Off, CH1, CH2, CH3, CH4, CH5, CH6, CH7, CH8, CH9, CH10
0V, Retain
Reading the analog voltage output data and conditions
Analog voltage output start / output stop
"DCO module".
Set data points
Number of file data
The last data of file data is output.
CHAPTER 3 Measure and Set
Examples of item
3-59
