7 Mechanical Installation - Frame size D, E and
F
7

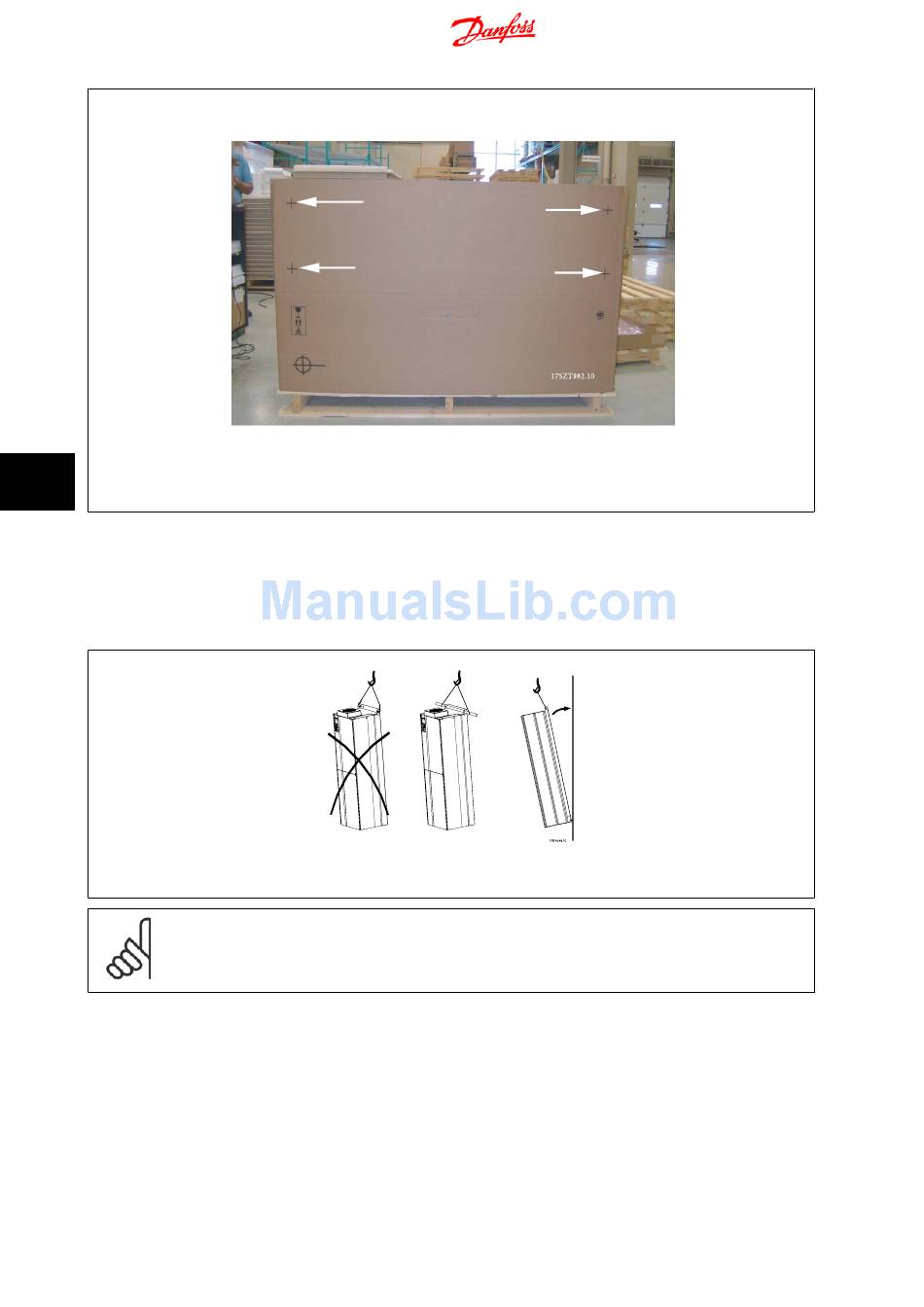

Illustration 7.1: Mounting Template

7.1.4 Lifting

Always lift the frequency converter in the dedicated lifting eyes. For all D and E2 (IP00) enclosures, use a bar to avoid bending the lifting holes of the
frequency converter.
Illustration 7.2: Recommended lifting method, frame sizes D and E .
NB!
The lifting bar must be able to handle the weight of the frequency converter. See
frame sizes. Maximum diameter for bar is 2.5 cm (1 inch). The angle from the top of the drive to the lifting cable should be 60 degrees
or greater.
122
MG.33.BC.02 - VLT ® is a registered Danfoss trademark
FC 300 Design Guide

Mechanical Dimensions

for the weight of the different
