Danfoss FC 300 Design Manual page 91

FC 300 Design Guide
Frame size C (except C2 525-690 V)
60º AVM - Pulse Width Modulation

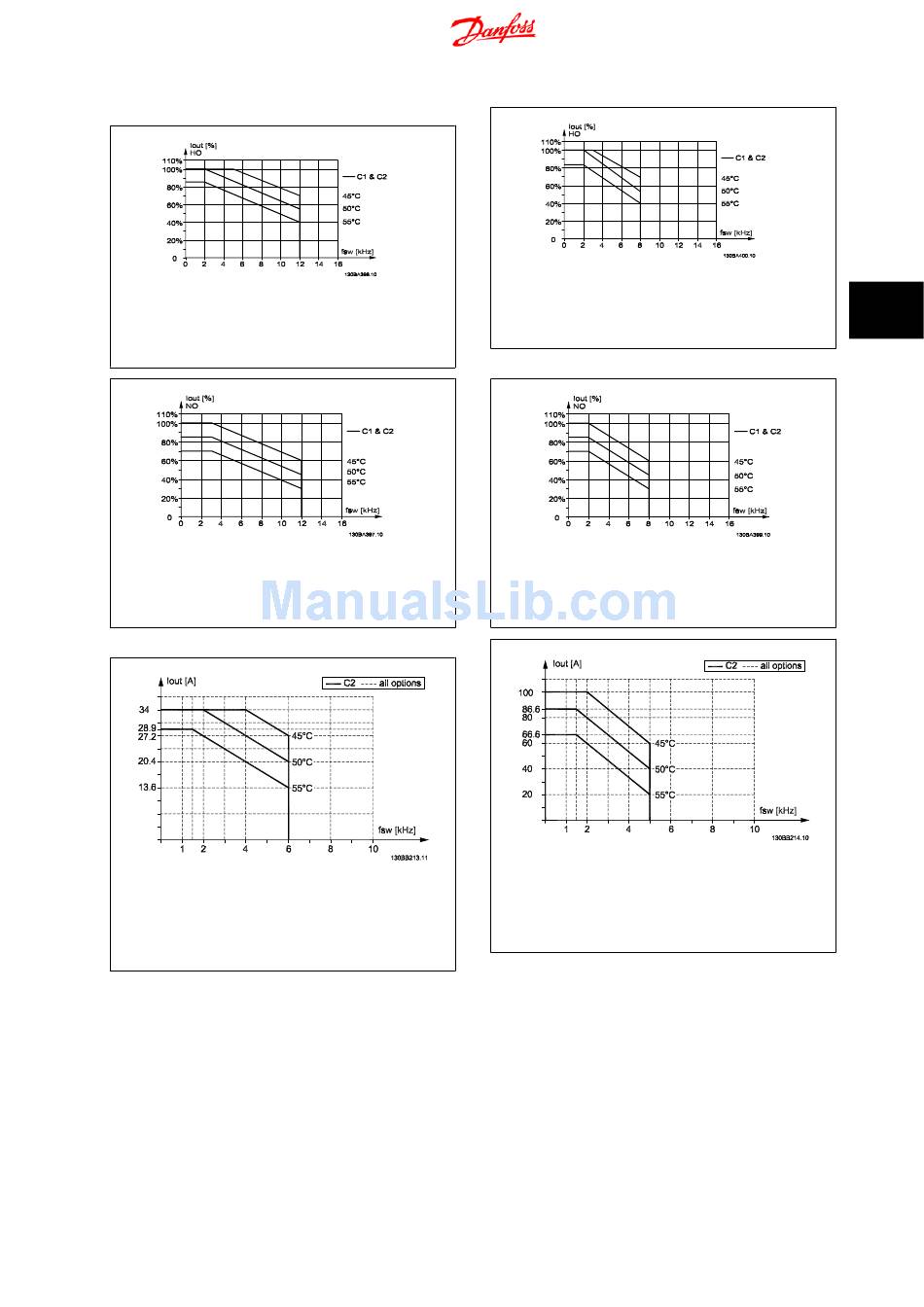

Illustration 4.12: Derating of I
frame size C, using 60º AVM in High torque mode (160%
over torque)
Illustration 4.14: Derating of I
frame size C, using 60º AVM in Normal torque mode (110%
over torque)
Frame size C2, 525-690 V
Illustration 4.16: Output current derating with switching fre-
quency and ambient temperature for frame size C2, 60º
AVM. Note: The graph is drawn with the current as absolute
value and is valid for both high and normal overload.
for different T for
out AMB, MAX
for different T for
out AMB, MAX
MG.33.BC.02 - VLT ® is a registered Danfoss trademark
4 AutomationDrive FC 300 Selection
SFAVM - Stator Frequency Asyncron Vector Modulation
Illustration 4.13: Derating of I
frame size C, using SFAVM in High torque mode (160% over
torque)
Illustration 4.15: Derating of I
frame size C, using SFAVM in Normal torque mode (110%
over torque)
Illustration 4.17: Output current derating with switching fre-
quency and ambient temperature for frame size C2, SFAVM.
Note: The graph is drawn with the current as absolute value
and is valid for both high and normal overload.
for different T for
out AMB, MAX
for different T for
out AMB, MAX
4
91
