FC 300 Design Guide

3 Introduction to AutomationDrive FC 300

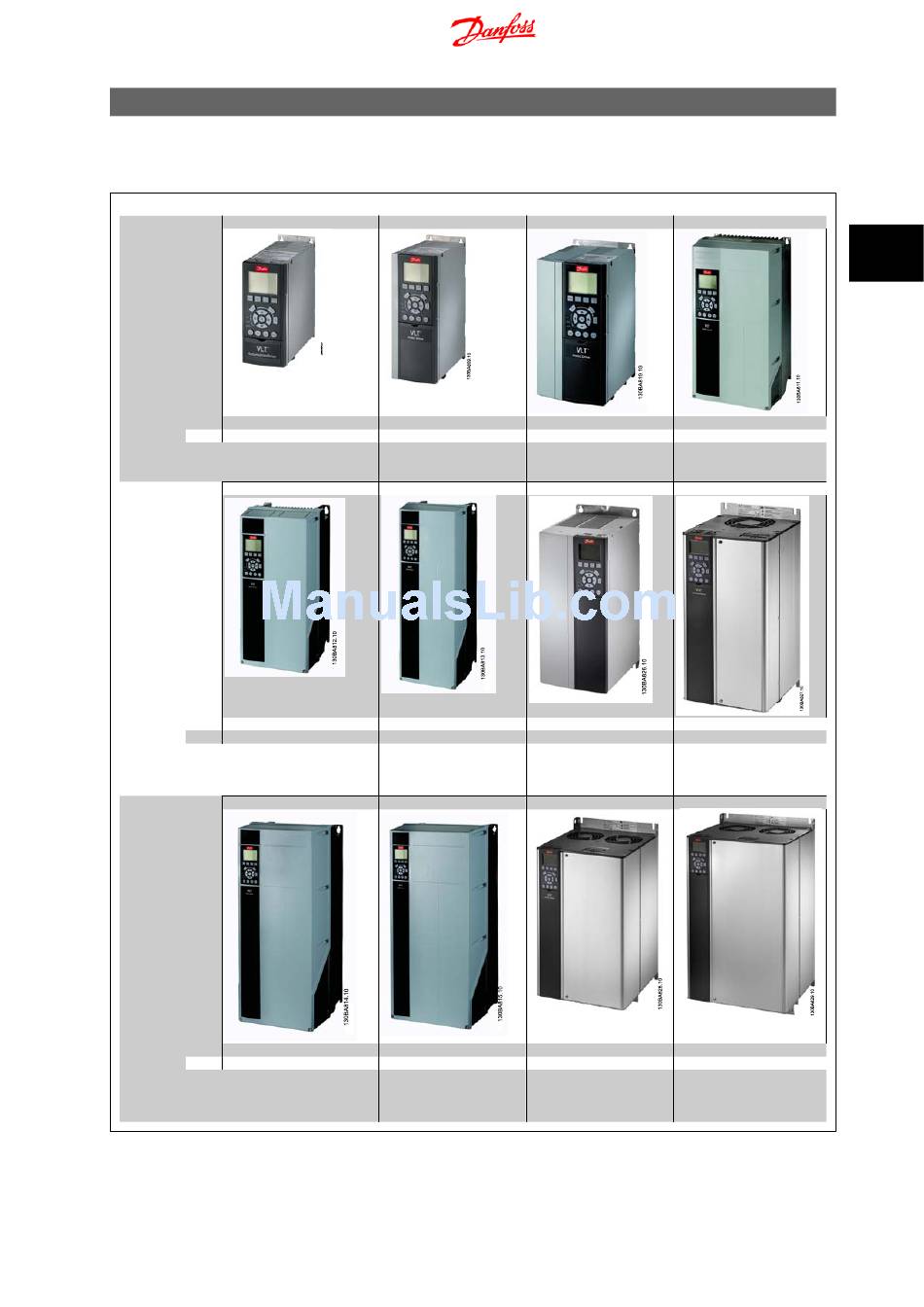

3.1 Product Overview

Frame size depends on enclosure type, power range and mains voltage
Frame size A1
Enclosure IP
protection NEMA Chassis/Type 1
High overload rated 0.25 – 1.5 kW (200-240 V)
power - 160% over- 0.37 – 1.5 kW (380-480 V)
load torque
Frame size B1
Enclosure IP 21/55/66
protection NEMA Type 1/Type 12
High overload rated 5.5-7.5 kW (200-240 V)
power - 160% over- 11-15 kW (380-480/ 500V)
load torque 11-15 kW (525-600 V)
Frame size C1
Enclosure IP 21/55/66
protection NEMA Type 1/Type 12
High overload rated 15-22 kW (200-240 V)
power - 160% over- 30-45kW (380-480/ 500V)
load torque 30-45 kW (525-600 V)
A2
20/21 20/21
Chassis/ Type 1
0.25-3 kW (200–240 V)
0.37-4.0 kW (380-480/ 500V)
0.75-4 kW (525-600 V)
B2
21/55/66
Type 1/Type 12
11 kW (200-250 V)
18.5-22 kW (380-480/ 500V)
18.5-22 kW (525-600 V)
11-22 kW (525-690 V)
C2
21/55/66
Type 1/Type 12
30-37 kW (200-240 V)
55-75 kW (380-480/ 500V)
55-90 kW (525-600 V)
30-75 kW (525-690 V)
MG.33.BC.02 - VLT ® is a registered Danfoss trademark
3 Introduction to AutomationDrive FC 300
A3 A5
20/21
Chassis/ Type 1
3.7 kW (200-240 V) 0.25-3.7 kW (200-240 V)
5.5-7.5 kW (380-480/ 500 V) 0.37-7.5 kW (380-480/500 V)
5.5-7.5 kW (525-600 V ) 0.75 -7.5 kW (525-600 V)
B3 B4
20
Chassis
5.5-7.5 kW (200-240 V) 11-15 kW (200-240 V)
11-15 kW (380-480/500 V) 18.5-30 kW (380-480/ 500 V)
11-15 kW (525-600 V) 18.5-30 kW (525-600 V)
C3 C4
20
Chassis
18.5-22 kW (200-240 V) 30-37 kW (200-240 V)
37-45 kW (380-480/500 V) 55-75 kW (380-480/ 500 V)
37-45 kW (525-600 V) 55-90 kW (525-600 V)
3
55/66
Type 12
20
Chassis
20
Chassis
17
