10 Options and Accessories

10.1.3 Mounting of Options in Slot C

The power to the frequency converter must be disconnected.
It is strongly recommended to make sure the parameter data is saved (i.e. by MCT10 software ) before option modules are inserted/removed from the
drive.
When installing a C option, a mounting kit is required. Please refer to the
using MCB 112 as an example. For more information on installation of MCO305, see separate operating instructions.
10
If both C0 and C1 options are to be installed, the installation is carried out as shown below. Note that this is only possible for frame sizes A2, A3 and B3.

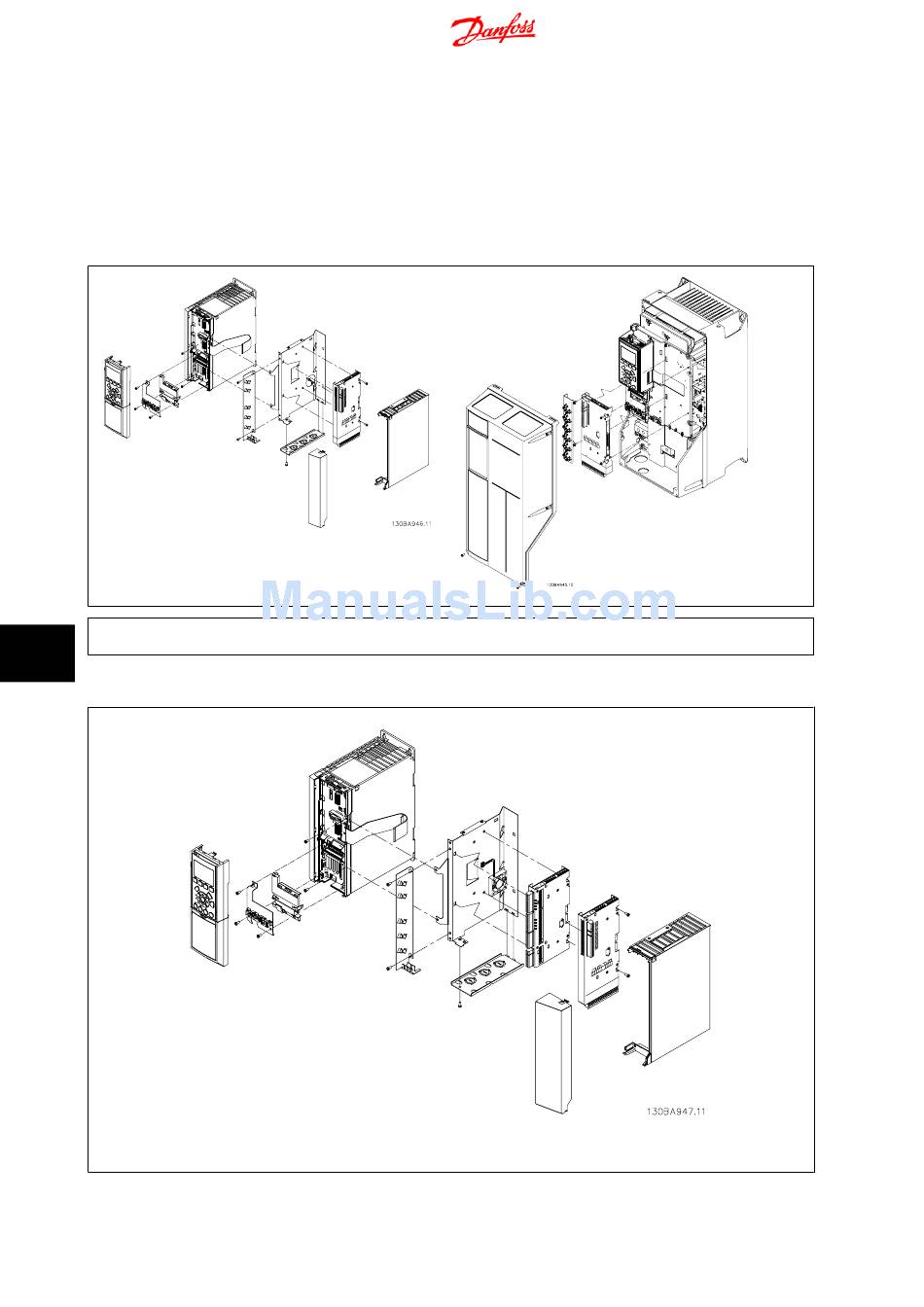

Illustration 10.1: Frame sizes A2, A3 and B3
208
Frame sizes A2, A3 and B3
MG.33.BC.02 - VLT
How to Order
section for a list of ordering numbers. The installation is illustrated
Frame sizes A5, B1, B2, B4, C1, C2, C3 and C4
