FC 300 Design Guide
Min. software version: 2.03 (par. 15-43
A2-A3-B3
1) IMPORTANT ! The label MUST be placed on the LCP frame as shown (UL approved).
Warning Dual supply

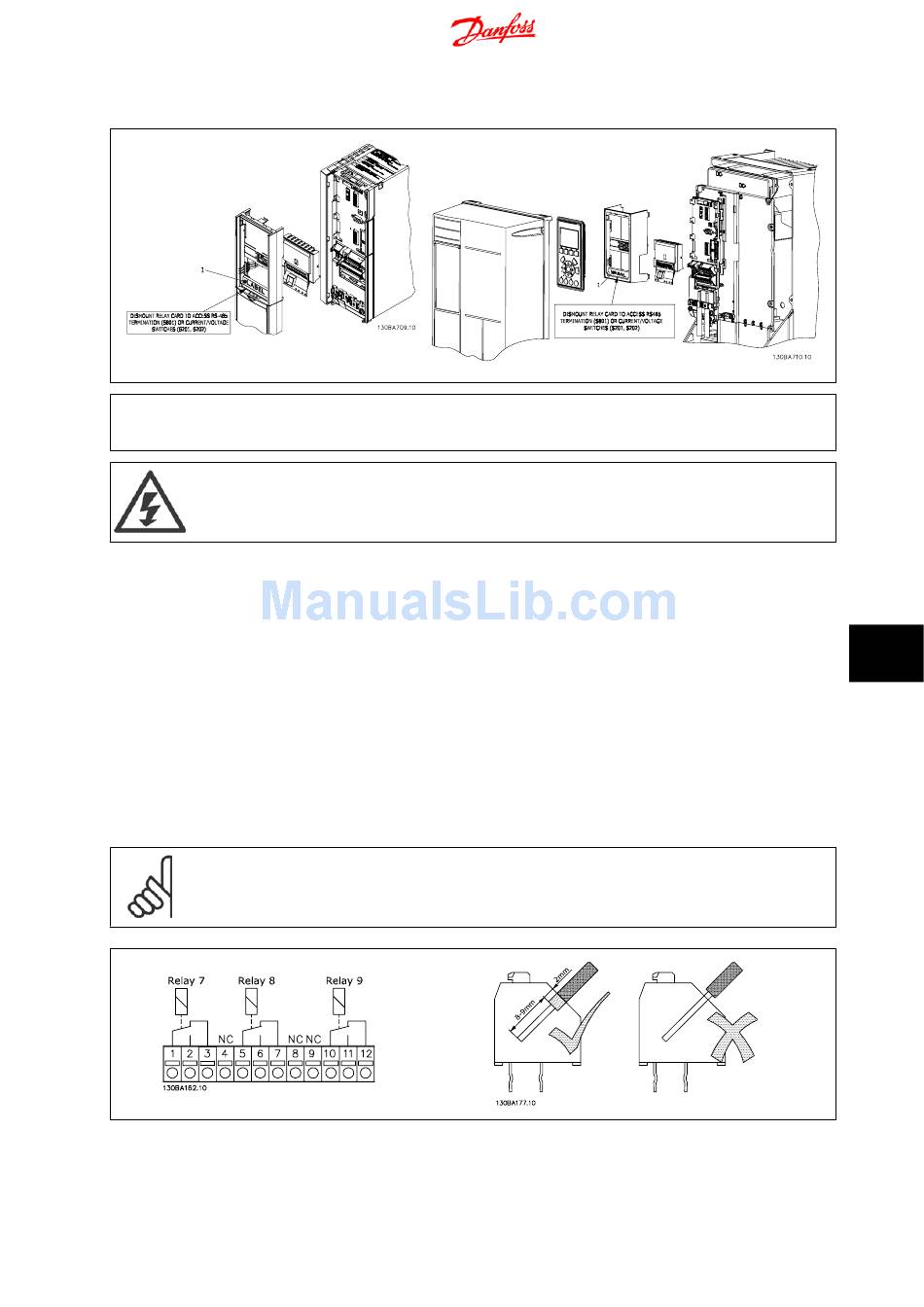

How to add the MCB 105 option:
• The power to the frequency converter must be disconnected.
• The power to the live part connections on relay terminals must be disconnected.
• Remove the LCP, the terminal cover and the LCP fixture from the frequency converter.
• Fit the MCB 105 option in slot B.
• Connect the control cables and fasten the cables with the enclosed cable strips.
• Make sure the length of the stripped wire is correct (see the following drawing).
• Do not mix live parts (high voltage) with control signals (PELV).
• Fit the enlarged LCP fixture and enlarged terminal cover.
• Replace the LCP.
• Connect power to the frequency converter.
• Select the relay functions in par. 5-40
NB!
Array [6] is relay 7, array [7] is relay 8, and array [8] is relay 9
Software Version
).
Function Relay
[6-8], par. 5-41
MG.33.BC.02 - VLT ® is a registered Danfoss trademark
A5-B1-B2-B4-C1-C2-C3-C4
On Delay, Relay
[6-8] and par. 5-42
10 Options and Accessories
Off Delay, Relay
[6-8].
10
