3 Introduction to AutomationDrive FC 300

3.2.5 Control Structure in Flux Sensorless (AutomationDrive FC 302 only)

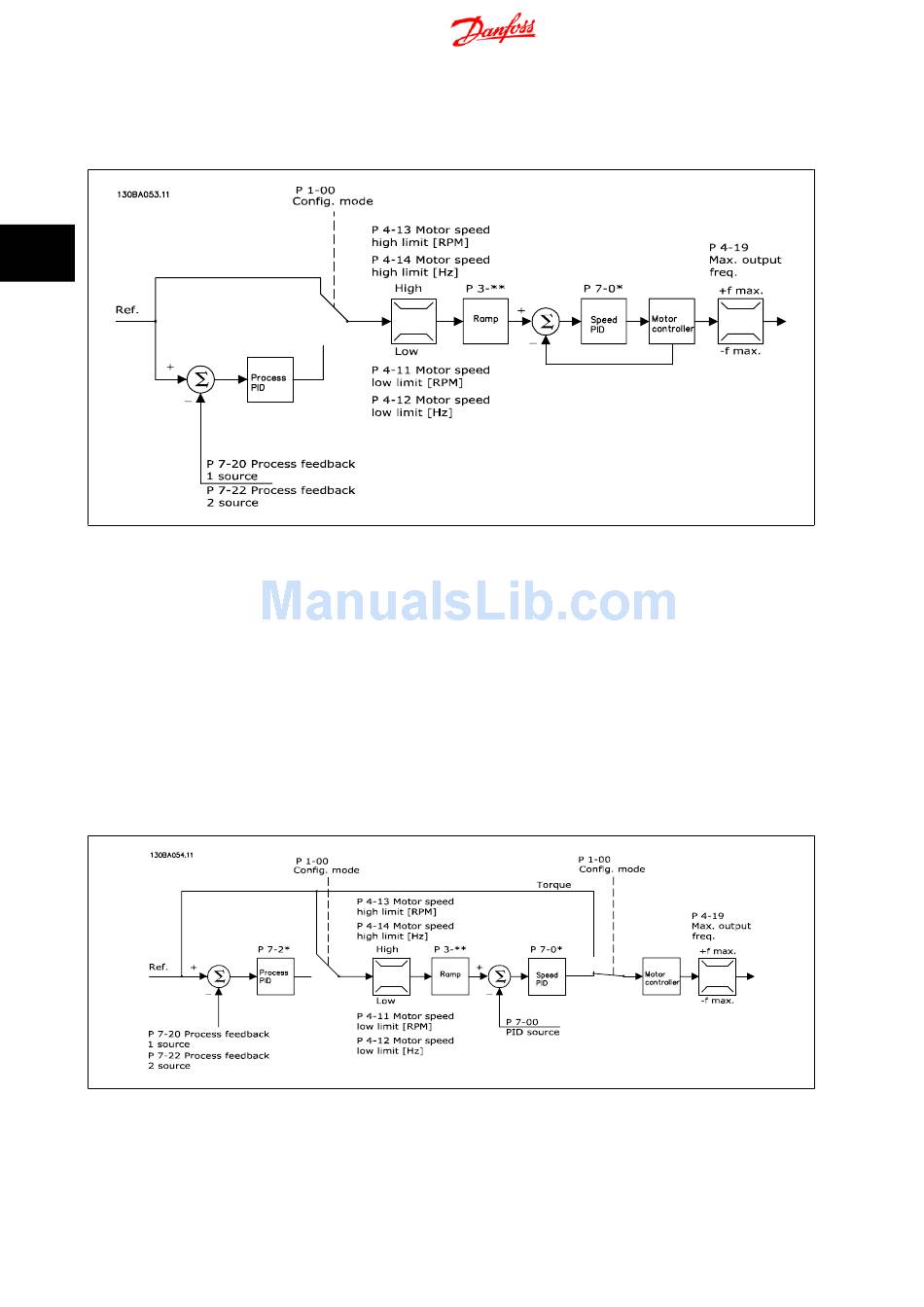

Control structure in Flux sensorless open loop and closed loop configurations.
3
In the shown configuration, par. 1-01
[0]". The resulting reference from the reference handling system is fed through the ramp and speed limitations as determined by the parameter settings
indicated.
An estimated speed feedback is generated to the Speed PID to control the output frequency.
The Speed PID must be set with its P,I, and D parameters (par. group 7-0*).
Select "Process [3]" in par. 1-00
application. The Process PID parameters are found in par. group 7-2* and 7-3*.

3.2.6 Control Structure in Flux with Motor Feedback

Control structure in Flux with motor feedback configuration (only available in AutomationDrive FC 302):
In the shown configuration, par. 1-01
loop [1]".
22
Motor Control Principle
is set to "Flux sensorless [2]" and par. 1-00
Configuration Mode
to use the process PID control for closed loop control of i.e. speed or pressure in the controlled
Motor Control Principle
is set to "Flux w motor feedb [3]" and par. 1-00
MG.33.BC.02 - VLT
Configuration Mode
Configuration Mode
® is a registered Danfoss trademark
FC 300 Design Guide
is set to "Speed open loop
is set to "Speed closed
