FC 300 Design Guide

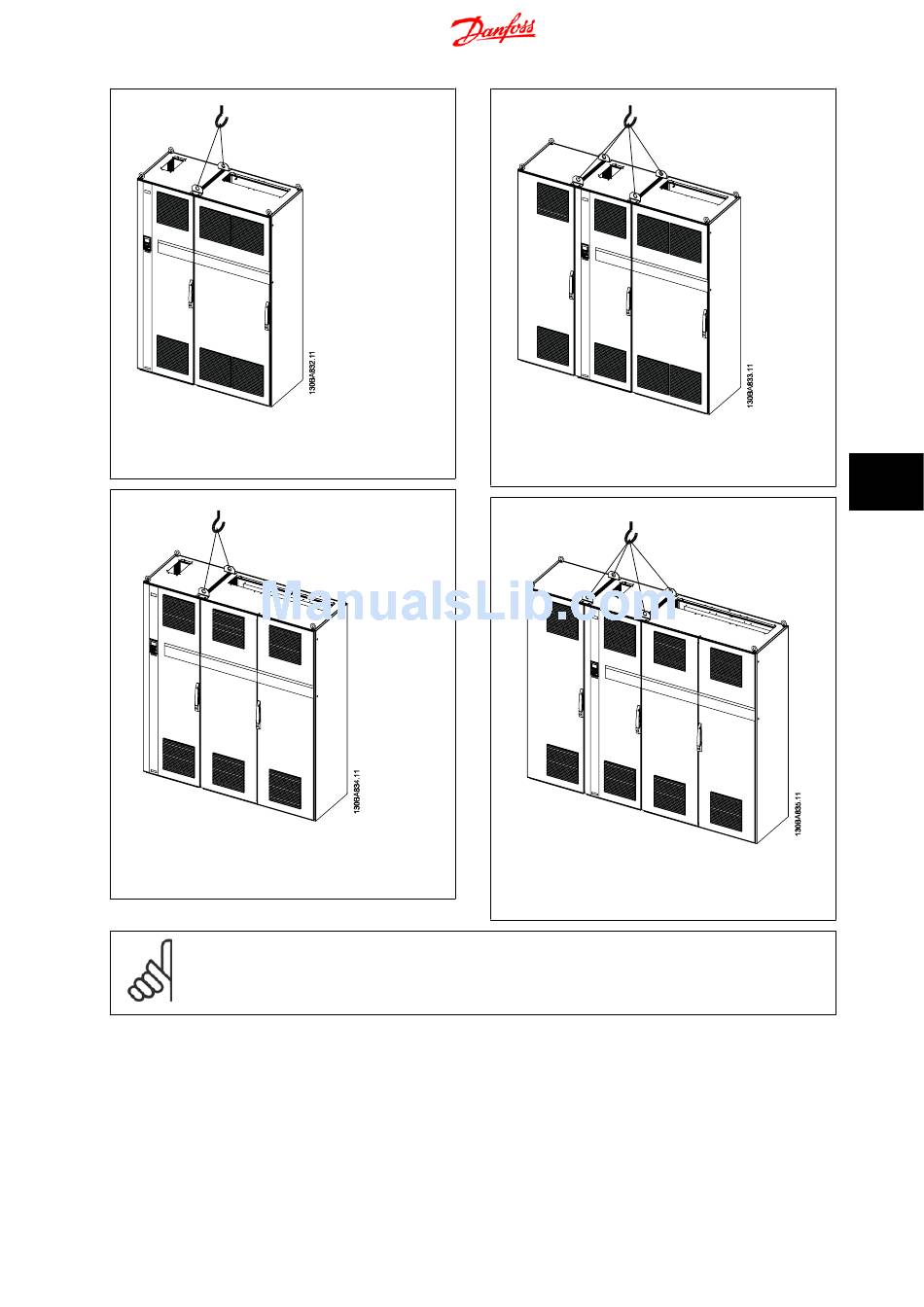

Illustration 7.3: Recommended lifting method, frame size
F1.
Illustration 7.4: Recommended lifting method, frame size
F2.
NB!
Note the plinth is provided in the same packaging as the frequency converter but is not attached to frame sizes F1-F4 during shipment.
The plinth is required to allow airflow to the drive to provide proper cooling. The F frames should be positioned on top of the plinth in
the final installation location. The angle from the top of the drive to the lifting cable should be 60 degrees or greater.
MG.33.BC.02 - VLT ® is a registered Danfoss trademark
7 Mechanical Installation - Frame size D, E and
Illustration 7.5: Recommended lifting method, frame size
F3.
Illustration 7.6: Recommended lifting method, frame size
F4.
F
7
123
