8 Electrical Installation
Mains connector frame size A5 (IP 55/66)
When disconnector is used (frame size A5) the PE must be mounted on the left side of the drive.
8

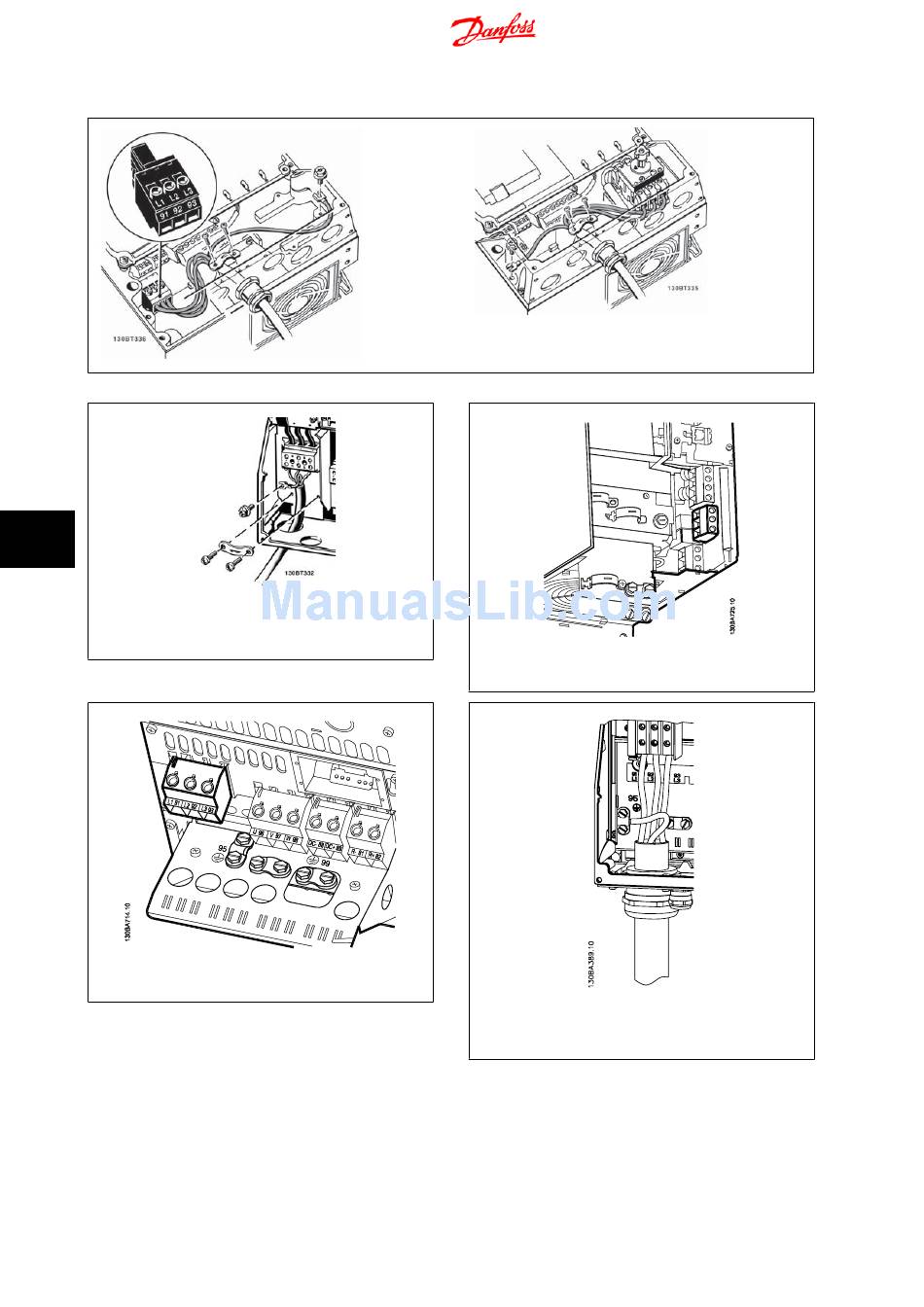

Illustration 8.1: Mains connection frame sizes B1 and B2 (IP
21/NEMA Type 1 and IP 55/66/ NEMA Type 12).
Illustration 8.3: Mains connection size B4 (IP20).
152
Illustration 8.2: Mains connection size B3 (IP20).
Illustration 8.4: Mains connection size C1 and C2 (IP 21/
NEMA Type 1 and IP 55/66/ NEMA Type 12).
MG.33.BC.02 - VLT
®
is a registered Danfoss trademark
FC 300 Design Guide
