8 Electrical Installation

8.12 Final Setup and Test

To test the set-up and ensure that the frequency converter is running, follow these steps.

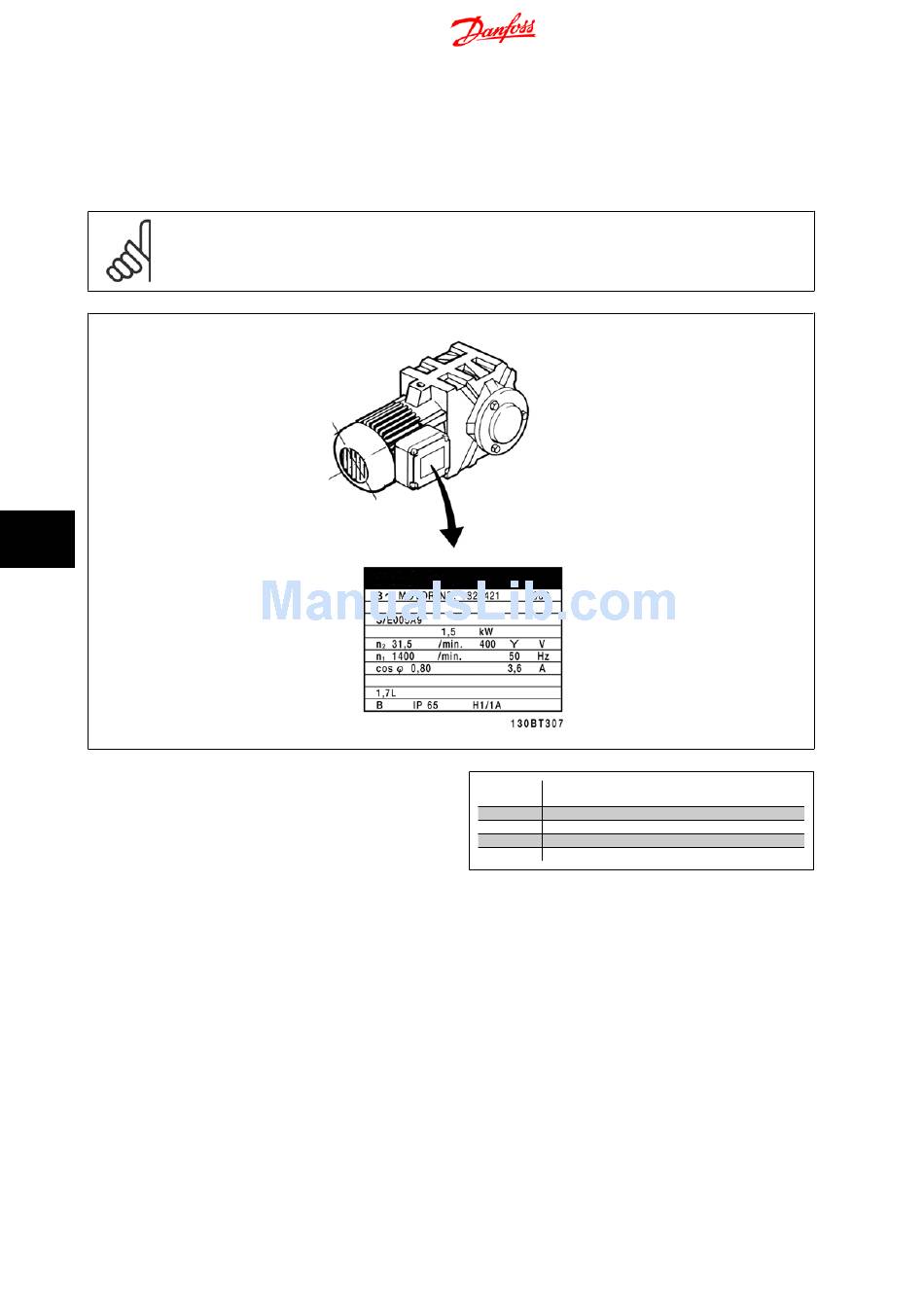

Step 1. Locate the motor name plate
NB!
The motor is either star- (Y) or delta- connected (Δ). This information is located on the motor name plate data.
8
Step 2. Enter the motor name plate data in this parameter list.
To access this list first press the [QUICK MENU] key then select "Q2 Quick
Setup".
Step 3. Activate the Automatic Motor Adaptation (AMA)
Performing an AMA will ensure optimum performance. The AMA measures the values from the motor model equivalent diagram.
1. Connect terminal 37 to terminal 12 (if terminal 37 is available).
2. Connect terminal 27 to terminal 12 or set par. 5-12
3. Activate the AMA par. 1-29
4. Choose between complete or reduced AMA. If a Sine-wave filter is mounted, run only the reduced AMA, or remove the Sine-wave filter during
the AMA procedure.
5. Press the [OK] key. The display shows "Press [Hand on] to start".
6. Press the [Hand on] key. A progress bar indicates if the AMA is in progress.
Stop the AMA during operation
1. Press the [OFF] key - the frequency converter enters into alarm mode and the display shows that the AMA was terminated by the user.
194
Terminal 27 Digital Input
Automatic Motor Adaptation (AMA) .
MG.33.BC.02 - VLT
Motor Power [kW]
1. par. 1-20
Motor Power [HP]
par. 1-21
2. par. 1-22 Motor Voltage
3. par. 1-23 Motor Frequency
4. par. 1-24 Motor Current
Motor Nominal Speed
5. par. 1-25
to 'No function'.
