8 Electrical Installation
8

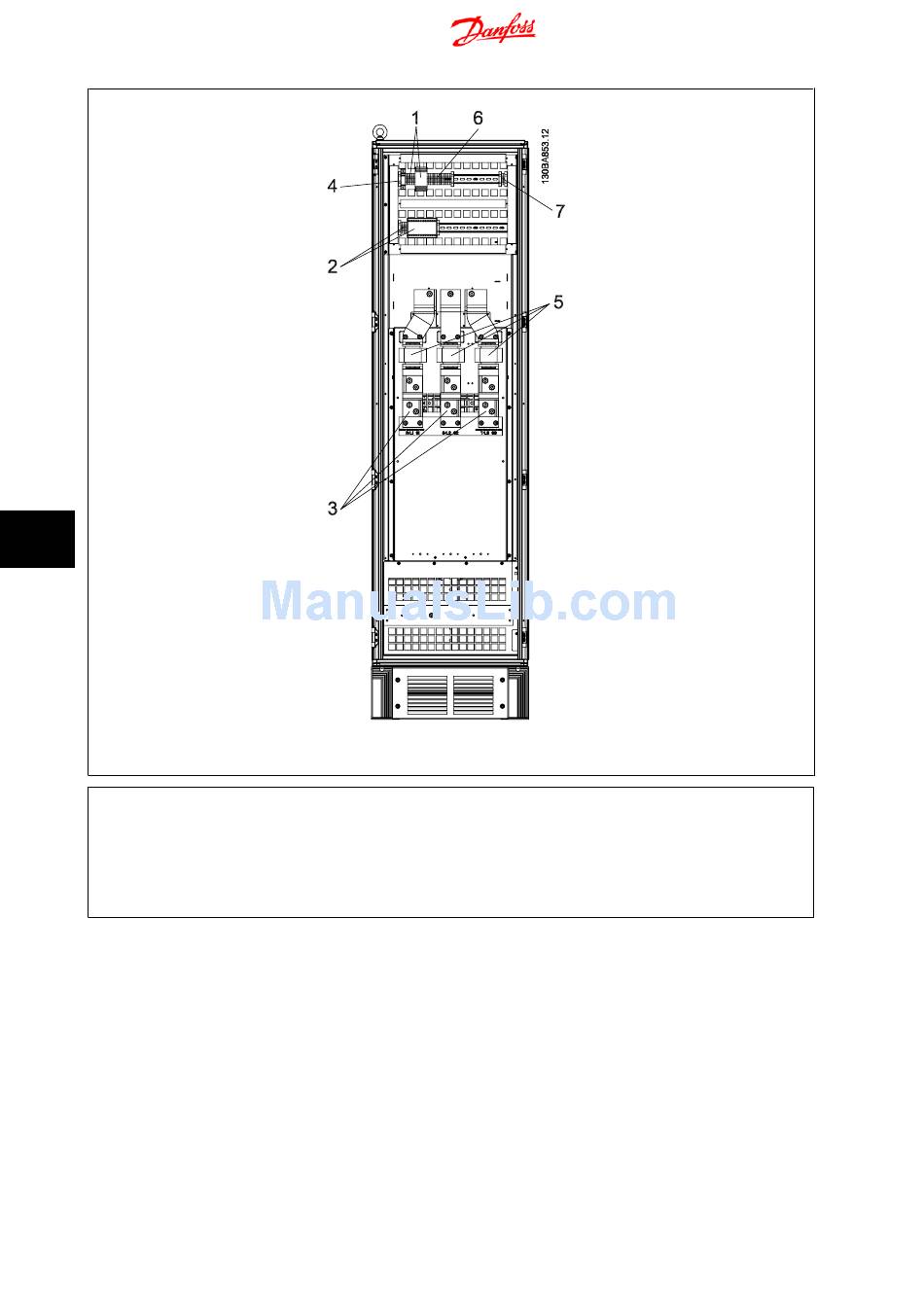

Illustration 8.31: Options Cabinet, frame size F3 and F4
1)
Pilz Relay Terminal
2)
RCD or IRM Terminal
3)
Mains
R
S
T
91
92
93
L1
L2
L3
166
4)
Safety Relay Coil Fuse with PILS Relay
See fuse tables for part numbers
5)
Line Fuses, F3 and F4 (3 pieces)
See fuse tables for part numbers
6)
Contactor Relay Coil (230 VAC). N/C and N/O Aux Contacts
7)
Circuit Breaker Shunt Trip Control Terminals (230 VAC or 230 VDC)
MG.33.BC.02 - VLT
®
is a registered Danfoss trademark
FC 300 Design Guide
