ANIMAS® VIBE™ SYSTEM

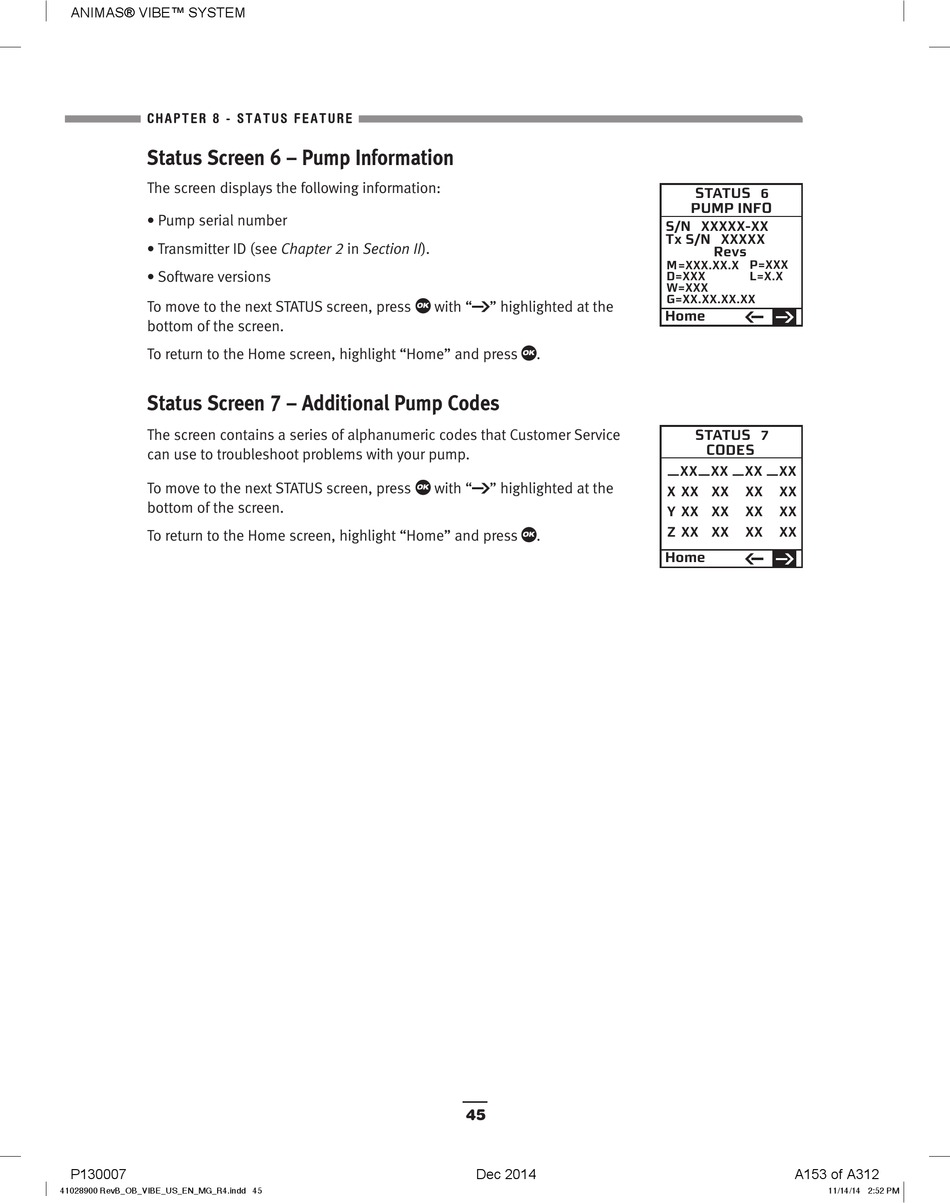

C H AP TE R 8 - S TA TU S F EA T UR E
Status Screen 6 – Pump Information
The screen displays the following information:
• Pump serial number
• Transmitter ID (see Chapter 2 in Section II).
• Software versions
To move to the next STATUS screen, press
bottom of the screen.
To return to the Home screen, highlight "Home" and press
Status Screen 7 – Additional Pump Codes
The screen contains a series of alphanumeric codes that Customer Service
can use to troubleshoot problems with your pump.
To move to the next STATUS screen, press
bottom of the screen.
To return to the Home screen, highlight "Home" and press
P130007
41028900 RevB_OB_VIBE_US_EN_MG_R4.indd 45
with " " highlighted at the
.
with " " highlighted at the
.
45
Dec 2014
STATUS 6
PUMP INFO
S/N XXXXX-XX
Tx S/N XXXXX
Revs
M =XXX.XX.X P=XXX
L=X.X
D=XXX
W=XXX
G=XX.XX.XX.XX
Home
STATUS 7
CODES
— XX — XX — XX — XX
X XX XX XX XX
Y XX XX XX XX
Z XX XX XX XX
Home
