CGM Data Screen
The CGM Data screen provides a snapshot of
your current CGM readings. Each CGM Data
screen displays the current time on your pump,
your current CGM reading, any Insulin on Board
(indicated by "IOB" on the screen), and Trend
Arrows that represent how fast your CGM
readings may be rising or falling.
See the charts on the following pages for the
meaning of the various symbols that might
appear on the CGM Data screen.
CGM Trend Screen
The CGM Trend screen provides a more
detailed view of your glucose status, and
includes a graphical display of your CGM
readings over a time period you select
(1, 3, 6, 12, or 24 hours). Each CGM Trend
screen also includes the current time on your
pump, your most recent CGM reading, High
(Glucose) and Low (Glucose) Alert settings,
and Trend Arrows that represent how fast
your CGM readings may be rising or falling.
See the charts on the following pages for the
meaning of the various symbols that might
appear on the CGM Trend screen. During an
active CGM session, you can access the CGM
Trend screen by pressing the Contrast button/
CGM shortcut
When the pump is in sleep mode, pressing the Contrast button/CGM shortcut
pump to the CGM Data or Trend screen last displayed when the pump went to sleep.
* Trend Arrows (on CGM Data and CGM Trend screens) and CGM data points (readings) on the CGM Trend screen
are color coded. An explanation of the Trend Arrows and the color coding appears on the following pages.
† A symbol may appear in place of your current CGM reading on CGM Data and CGM Trend screens. An
explanation of these symbols appears on the following pages.
P130007
41028900 RevB_OB_VIBE_US_EN_MG_R4.indd 142
to wake up the pump.

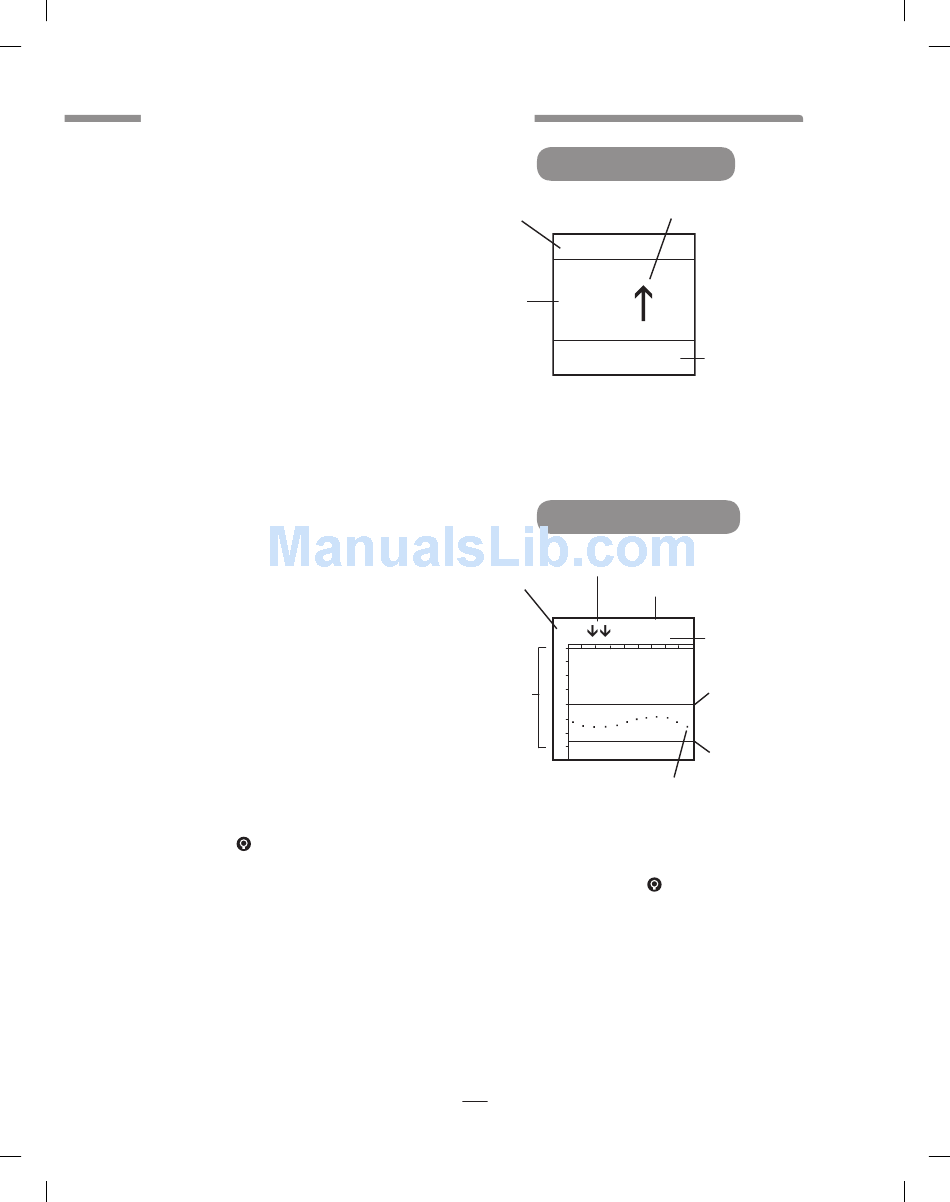

Example CGM Data Screen
