ANIMAS® VIBE™ SYSTEM
C H AP TE R 6 - V I EW IN G CGM IN F OR M A T ION O N Y O U R PU M P

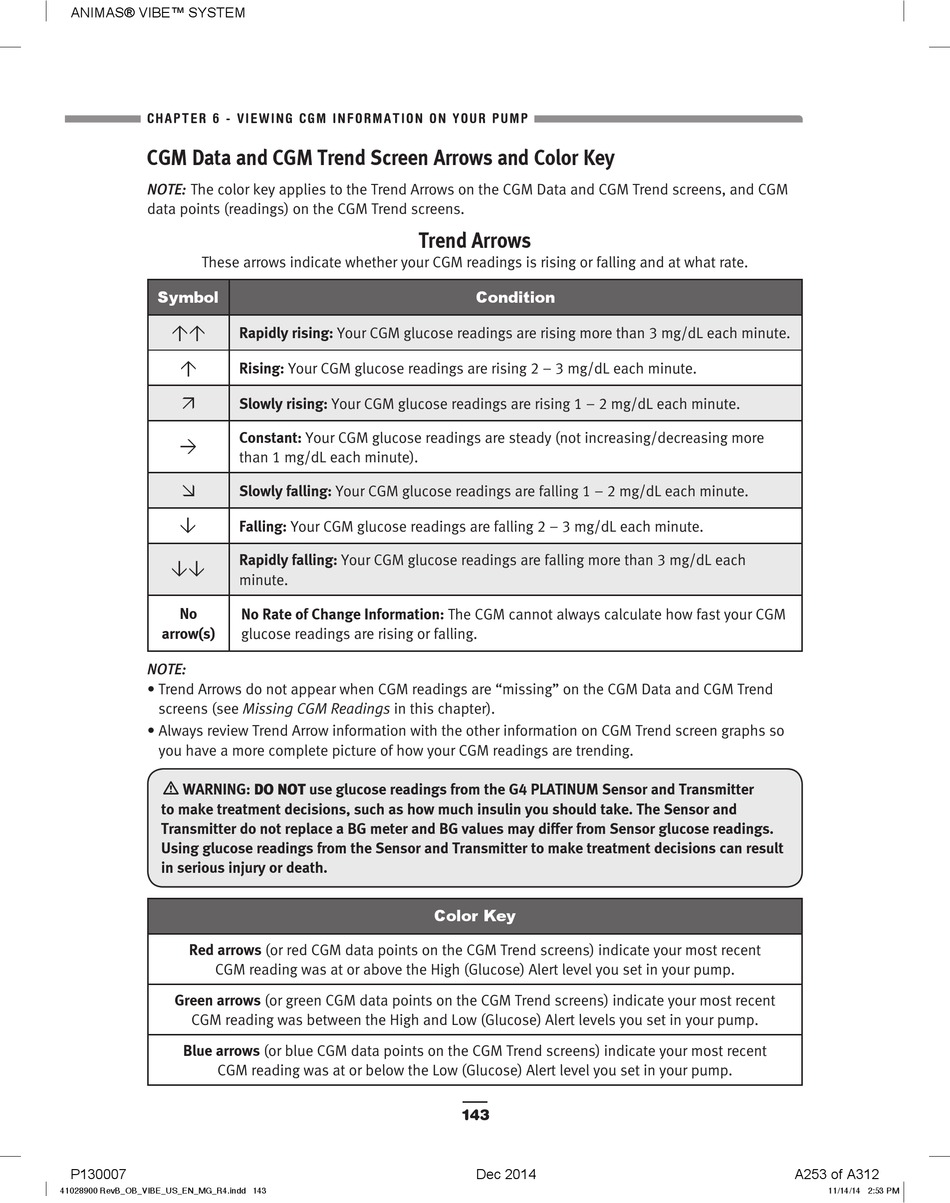

CGM Data and CGM Trend Screen Arrows and Color Key
NOTE: The color key applies to the Trend Arrows on the CGM Data and CGM Trend screens, and CGM
data points (readings) on the CGM Trend screens.
These arrows indicate whether your CGM readings is rising or falling and at what rate.
Symbol

Rapidly rising: Your CGM glucose readings are rising more than 3 mg/dL each minute.

Rising: Your CGM glucose readings are rising 2 – 3 mg/dL each minute.

Slowly rising: Your CGM glucose readings are rising 1 – 2 mg/dL each minute.
Constant: Your CGM glucose readings are steady (not increasing/decreasing more

than 1 mg/dL each minute).

Slowly falling: Your CGM glucose readings are falling 1 – 2 mg/dL each minute.

Falling: Your CGM glucose readings are falling 2 – 3 mg/dL each minute.
Rapidly falling: Your CGM glucose readings are falling more than 3 mg/dL each

minute.
No
arrow(s)
NOTE:
• Trend Arrows do not appear when CGM readings are "missing" on the CGM Data and CGM Trend
screens (see Missing CGM Readings in this chapter).
• Always review Trend Arrow information with the other information on CGM Trend screen graphs so
you have a more complete picture of how your CGM readings are trending.
m
WARNING: DO NOT use glucose readings from the G4 PLATINUM Sensor and Transmitter
to make treatment decisions, such as how much insulin you should take. The Sensor and
Transmitter do not replace a BG meter and BG values may differ from Sensor glucose readings.
Using glucose readings from the Sensor and Transmitter to make treatment decisions can result
in serious injury or death.
Red arrows (or red CGM data points on the CGM Trend screens) indicate your most recent
CGM reading was at or above the High (Glucose) Alert level you set in your pump.
Green arrows (or green CGM data points on the CGM Trend screens) indicate your most recent
CGM reading was between the High and Low (Glucose) Alert levels you set in your pump.
Blue arrows (or blue CGM data points on the CGM Trend screens) indicate your most recent
CGM reading was at or below the Low (Glucose) Alert level you set in your pump.
P130007
41028900 RevB_OB_VIBE_US_EN_MG_R4.indd 143
Trend Arrows
No Rate of Change Information: The CGM cannot always calculate how fast your CGM
glucose readings are rising or falling.
Condition
Color Key
143
Dec 2014 A253 of A312
