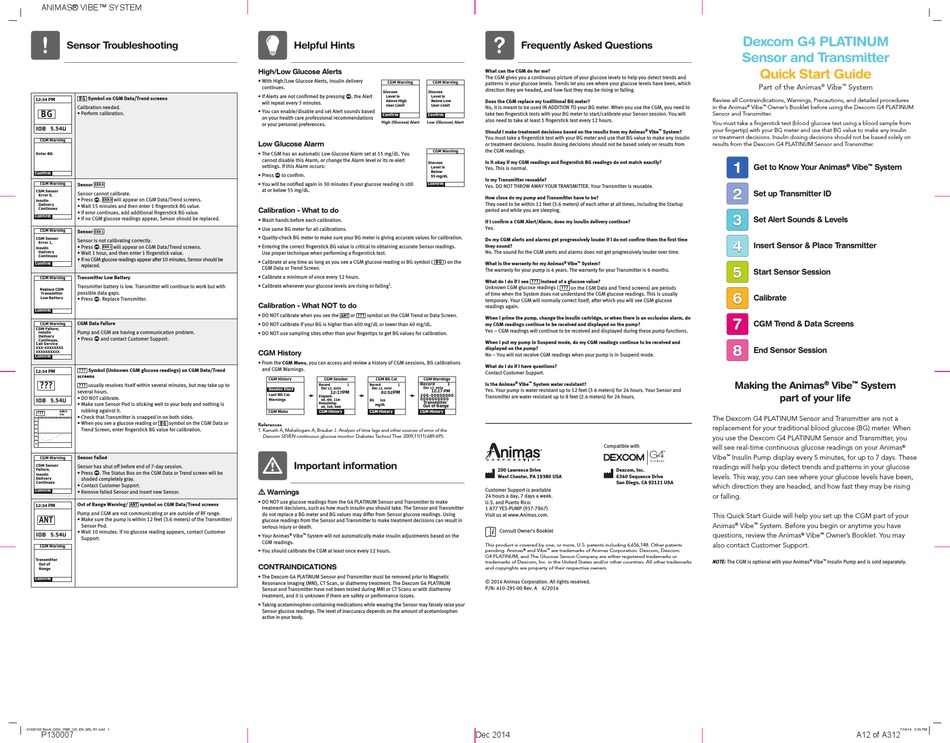

Dexcom g4 platinum Quick Start Manual

ANIMAS® VIBE™ SYSTEM
!
Sensor Troubleshooting
Symbol on CGM Data/Trend screens
12:34 PM
Calibration needed.
BG
• Perform calibration.
IOB 5.54U
CGM Warning
Enter BG
Confirm
CGM Warning Sensor
CGM Sensor
Sensor cannot calibrate.
Error 0,
• Press . will appear on CGM Data/Trend screens.
Insulin
Delivery
• Wait 15 minutes and then enter 1 fingerstick BG value.
Continues
• If error continues, add additional fingerstick BG value.
Confirm
• If no CGM glucose readings appear, Sensor should be replaced.
CGM Warning Sensor
CGM Sensor
Sensor is not calibrating correctly.
Error 1,
• Press . will appear on CGM Data/Trend screens.
Insulin
Delivery • Wait 1 hour, and then enter 1 fingerstick value.
Continues
• If no CGM glucose readings appear after 10 minutes, Sensor should be
Confirm
replaced.
Transmitter Low Battery
CGM Warning
Transmitter battery is low. Transmitter will continue to work but with
Replace CGM
possible data gaps.
Transmitter
Low Battery • Press . Replace Transmitter.
Confirm
CGM Data Failure
CGM Warning
CGM Failure,
Pump and CGM are having a communication problem.
Insulin
Delivery
• Press and contact Customer Support.
Continues,
Call Service
XXX-XXXXXXXX
XXXXXXXXXX
Confirm
Symbol (Unknown CGM glucose readings) on CGM Data/Trend
12:34 PM
screens
???
usually resolves itself within several minutes, but may take up to
several hours.
• DO NOT calibrate.
IOB 5.54U
• Make sure Sensor Pod is sticking well to your body and nothing is
rubbing against it.
??? 3:06 A
1 hr
• Check that Transmitter is snapped in on both sides.
400
• When you see a glucose reading or symbol on the CGM Data or
350
300
Trend Screen, enter fingerstick BG value for calibration.
250
200
150
100
50
Sensor Failed
CGM Warning
CGM Sensor Sensor has shut off before end of 7-day session.
Failure,
• Press . The Status Box on the CGM Data or Trend screen will be
Insulin
Delivery shaded completely gray.
Continues
• Contact Customer Support.
Confirm
• Remove failed Sensor and insert new Sensor.
Out of Range Warning/ symbol on CGM Data/Trend screens
12:34 PM
Pump and CGM are not communicating or are outside of RF range.
ANT
• Make sure the pump is within 12 feet (3.6 meters) of the Transmitter/
Sensor Pod.
• Wait 10 minutes. If no glucose reading appears, contact Customer
IOB 5.54U
Support.
CGM Warning
Transmitter
Out of
Range
Confirm
41029100 RevA_QSG_VIBE_US_EN_MG_R1.indd 1
P130007
Helpful Hints
High/Low Glucose Alerts
• With High/Low Glucose Alerts, insulin delivery
CGM Warning CGM Warning
continues.
Glucose Glucose
• If Alerts are not confirmed by pressing , the Alert
Level is Level is
Above High
Below Low
will repeat every 3 minutes.
User Limit User Limit
• You can enable/disable and set Alert sounds based
Confirm Confirm
on your health care professional recommendations
High (Glucose) Alert Low (Glucose) Alert
or your personal preferences.
Low Glucose Alarm
CGM Warning
• The CGM has an automatic Low Glucose Alarm set at 55 mg/dL. You
cannot disable this Alarm, or change the Alarm level or its re-alert
Glucose
settings. If this Alarm occurs:
Level is
Below
• Press to confirm.
55 mg/dL
• You will be notified again in 30 minutes if your glucose reading is still Confirm
at or below 55 mg/dL.
Calibration - What to do
• Wash hands before each calibration.
• Use same BG meter for all calibrations.
• Quality-check BG meter to make sure your BG meter is giving accurate values for calibration.
• Entering the correct fingerstick BG value is critical to obtaining accurate Sensor readings.
Use proper technique when performing a fingerstick test.
• Calibrate at any time as long as you see a CGM glucose reading or BG symbol (
CGM Data or Trend Screen.
• Calibrate a minimum of once every 12 hours.
• Calibrate whenever your glucose levels are rising or falling 1 .
Calibration - What NOT to do
• DO NOT calibrate when you see the or symbol on the CGM Trend or Data Screen.
• DO NOT calibrate if your BG is higher than 400 mg/dL or lower than 40 mg/dL.
• DO NOT use sampling sites other than your fingertips to get BG values for calibration.
CGM History
• From the CGM Menu, you can access and review a history of CGM sessions, BG calibrations
and CGM Warnings.
CGM History CGM Session CGM BG Cal CGM Warnings
Record
Record 1 Record
1
Dec 17, 2010 Dec 17, 2010
Session Start Dec 17, 2010
12:17 PM
12:17PM 02:52PM
Last BG Cal.
Elapsed: 2 0 6 - 0 0 0 0 0 0 0 0
Warnings 0 0 0 0 0 0 0 0 0 0
0d, 4hr, 11m BG
103
Transmitter
Remaining:
mg/dL
Out of Range
6d, 19h, 49m
CGM Menu CGM History CGM History CGM History
References
1. Kamath A, Mahalingam A, Brauker J. Analysis of time lags and other sources of error of the
Dexcom SEVEN continuous glucose monitor. Diabetes Technol Ther. 2009;11(11):689-695.
m
Important information
m Warnings
• DO NOT use glucose readings from the G4 PLATINUM Sensor and Transmitter to make
treatment decisions, such as how much insulin you should take. The Sensor and Transmitter
do not replace a BG meter and BG values may differ from Sensor glucose readings. Using
glucose readings from the Sensor and Transmitter to make treatment decisions can result in
serious injury or death.
• Your Animas ® Vibe ™ System will not automatically make insulin adjustments based on the
CGM readings.
• You should calibrate the CGM at least once every 12 hours.
CONTRAINDICATIONS
• The Dexcom G4 PLATINUM Sensor and Transmitter must be removed prior to Magnetic
Resonance Imaging (MRI), CT Scan, or diathermy treatment. The Dexcom G4 PLATINUM
Sensor and Transmitter have not been tested during MRI or CT Scans or with diathermy
treatment, and it is unknown if there are safety or performance issues.
• Taking acetaminophen-containing medications while wearing the Sensor may falsely raise your
Sensor glucose readings. The level of inaccuracy depends on the amount of acetaminophen
active in your body.
?
Frequently Asked Questions
What can the CGM do for me?
The CGM gives you a continuous picture of your glucose levels to help you detect trends and
patterns in your glucose levels. Trends let you see where your glucose levels have been, which
direction they are headed, and how fast they may be rising or falling.
Does the CGM replace my traditional BG meter?
No, it is meant to be used IN ADDITION TO your BG meter. When you use the CGM, you need to
take two fingerstick tests with your BG meter to start/calibrate your Sensor session. You will
also need to take at least 1 fingerstick test every 12 hours.
Should I make treatment decisions based on the results from my Animas
You must take a fingerstick test with your BG meter and use that BG value to make any insulin
or treatment decisions. Insulin dosing decisions should not be based solely on results from
the CGM readings.
Is it okay if my CGM readings and fingerstick BG readings do not match exactly?
Yes. This is normal.
Is my Transmitter reusable?
Yes. DO NOT THROW AWAY YOUR TRANSMITTER. Your Transmitter is reusable.
How close do my pump and Transmitter have to be?
They need to be within 12 feet (3.6 meters) of each other at all times, including the Startup
period and while you are sleeping.
If I confirm a CGM Alert/Alarm, does my insulin delivery continue?
Yes.
Do my CGM alerts and alarms get progressively louder if I do not confirm them the first time
they sound?
No. The sound for the CGM alerts and alarms does not get progressively louder over time.
) on the
What is the warranty for my Animas Vibe System?
® ™
The warranty for your pump is 4 years. The warranty for your Transmitter is 6 months.
What do I do if I see instead of a glucose value?
Unknown CGM glucose readings ( on the CGM Data and Trend screens) are periods
of time when the System does not understand the CGM glucose readings. This is usually
temporary. Your CGM will normally correct itself, after which you will see CGM glucose
readings again.
When I prime the pump, change the insulin cartridge, or when there is an occlusion alarm, do
my CGM readings continue to be received and displayed on the pump?
Yes – CGM readings will continue to be received and displayed during these pump functions.
When I put my pump in Suspend mode, do my CGM readings continue to be received and
displayed on the pump?
No – You will not receive CGM readings when your pump is in Suspend mode.
What do I do if I have questions?
Contact Customer Support.
Is the Animas ® Vibe ™ System water resistant?
1
Yes. Your pump is water resistant up to 12 feet (3.6 meters) for 24 hours. Your Sensor and
Transmitter are water resistant up to 8 feet (2.4 meters) for 24 hours.
Compatible with
200 Lawrence Drive Dexcom, Inc.
West Chester, PA 19380 USA 6340 Sequence Drive
San Diego, CA 92121 USA
Customer Support is available
24 hours a day, 7 days a week.
U.S. and Puerto Rico:
1 877 YES-PUMP (937-7867)
Visit us at www.Animas.com.
Consult Owner's Booklet
This product is covered by one, or more, U.S. patents including 6,656,148. Other patents
pending. Animas ® and Vibe ™ are trademarks of Animas Corporation. Dexcom, Dexcom
G4 PLATINUM, and The Glucose Sensor Company are either registered trademarks or
trademarks of Dexcom, Inc. in the United States and/or other countries. All other trademarks
and copyrights are property of their respective owners.
© 2014 Animas Corporation. All rights reserved.
P/N: 410-291-00 Rev. A 6/2014
Dec 2014
Dexcom G4 PLATINUM
Sensor and Transmitter
Quick Start Guide
Part of the Animas ®
Review all Contraindications, Warnings, Precautions, and detailed procedures
in the Animas Vibe Owner's Booklet before using the Dexcom G4 PLATINUM
® ™
Sensor and Transmitter.
You must take a fingerstick test (blood glucose test using a blood sample from
your fingertip) with your BG meter and use that BG value to make any insulin
® Vibe ™ System?
or treatment decisions. Insulin dosing decisions should not be based solely on
results from the Dexcom G4 PLATINUM Sensor and Transmitter.
1
Get to Know Your Animas
2
Set up Transmitter ID
3
Set Alert Sounds & Levels
4
Insert Sensor & Place Transmitter
5
Start Sensor Session
6
Calibrate
7
CGM Trend & Data Screens
8
End Sensor Session
Making the Animas
®
part of your life
The Dexcom G4 PLATINUM Sensor and Transmitter are not a
replacement for your traditional blood glucose (BG) meter. When
you use the Dexcom G4 PLATINUM Sensor and Transmitter, you
will see real-time continuous glucose readings on your Animas
Vibe Insulin Pump display every 5 minutes, for up to 7 days. These
™
readings will help you detect trends and patterns in your glucose
levels. This way, you can see where your glucose levels have been,
which direction they are headed, and how fast they may be rising
or falling.
This Quick Start Guide will help you set up the CGM part of your
Animas ® Vibe ™ System. Before you begin or anytime you have
questions, review the Animas Vibe
® ™
also contact Customer Support.
NOTE: The CGM is optional with your Animas ® Vibe ™
Vibe ™ System
Vibe System
® ™
Vibe System
™
®
Owner's Booklet. You may
Insulin Pump and is sold separately.
