ANIMAS® VIBE™ SYSTEM
C H AP TE R 3 - GE T TI N G Y O U R PU M P R EA D Y

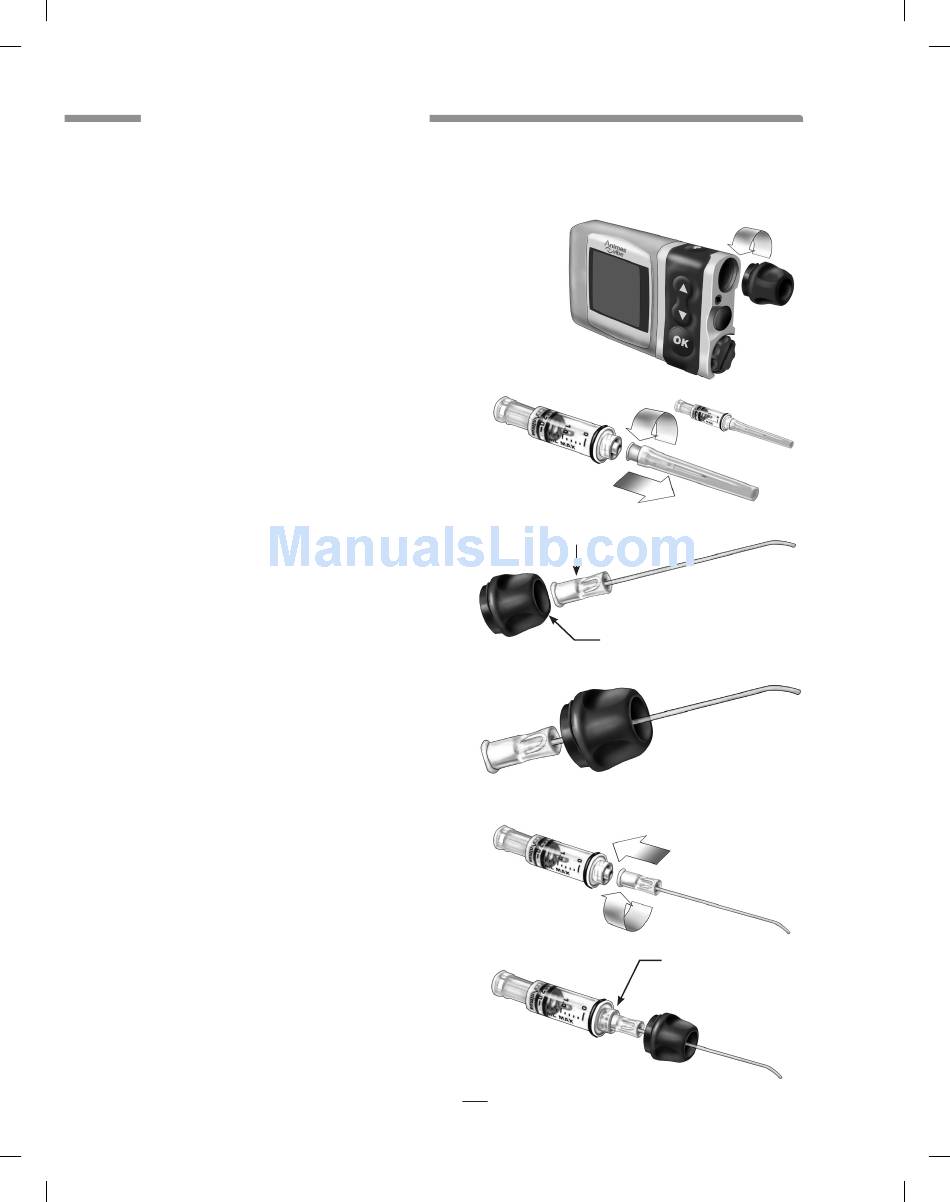

1.
Clean the workspace where you will be connecting the infusion set to the cartridge. Wash your
hands thoroughly with soap and water, and then dry them completely before you handle the infusion
set.
2.
Open the sterile infusion set package and remove its
contents. If the package is damaged or opened, use another
set and contact your supplier.
3.
Completely remove the cartridge compartment cap from
your pump by unscrewing it, using a counter-clockwise motion.
4.
Remove the infusion set tubing protective cap
from the Luer connector. (Not all infusion sets
have these caps.)
5.
After removing protective cap, thread the
Luer connector of the infusion set through
the top (smaller) opening of the cartridge
compartment cap, being careful not to touch
Luer tip with hands or work surface.
6.
Remove cap from the filled cartridge tip.
7.
Attach the infusion set Luer connector to
cartridge tip using a clockwise motion to tighten
the cap until it is snug. Then twist another
quarter of a turn. To avoid insulin spillage and
introduction of air in the cartridge, it should never
be filled beyond the 2.0 mL mark. The plunger is
properly positioned for maximum fill when the
black o-ring nearest to the plunger tip is centered
on the 2.0 mL mark.
P130007
41028900 RevB_OB_VIBE_US_EN_MG_R4.indd 18
Luer connector of infusion set
Top of cartridge compartment cap
Correctly threaded through cap
18
