ANIMAS® VIBE™ SYSTEM

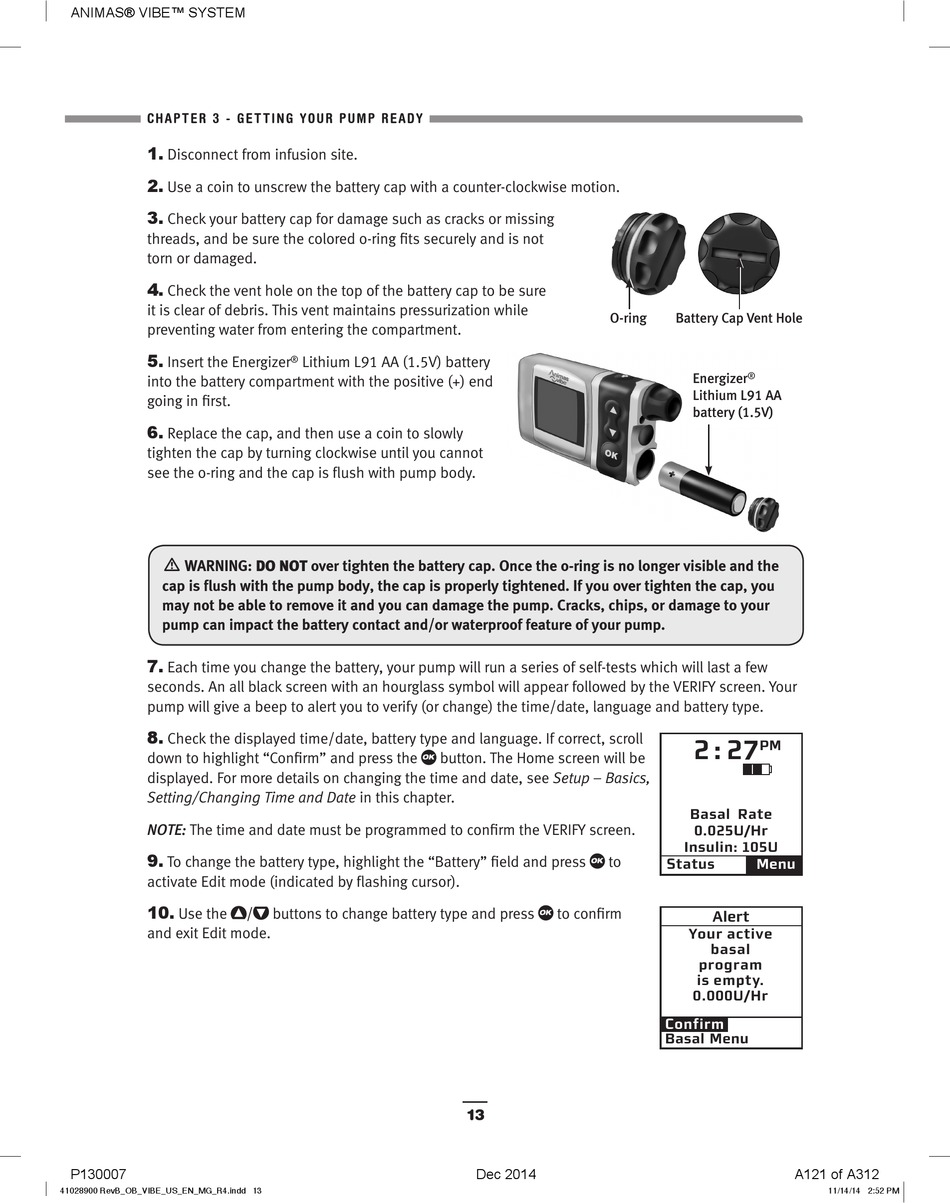

C H AP TE R 3 - GE T TI N G Y O U R PU M P R EA D Y
1.
Disconnect from infusion site.
2.
Use a coin to unscrew the battery cap with a counter-clockwise motion.
3.
Check your battery cap for damage such as cracks or missing
threads, and be sure the colored o-ring fits securely and is not
torn or damaged.
4.
Check the vent hole on the top of the battery cap to be sure
it is clear of debris. This vent maintains pressurization while
preventing water from entering the compartment.
5.
Insert the Energizer
into the battery compartment with the positive (+) end
going in first.
6.
Replace the cap, and then use a coin to slowly
tighten the cap by turning clockwise until you cannot
see the o-ring and the cap is flush with pump body.
m
WARNING: DO NOT over tighten the battery cap. Once the o-ring is no longer visible and the
cap is flush with the pump body, the cap is properly tightened. If you over tighten the cap, you
may not be able to remove it and you can damage the pump. Cracks, chips, or damage to your
pump can impact the battery contact and/or waterproof feature of your pump.
7.
Each time you change the battery, your pump will run a series of self-tests which will last a few
seconds. An all black screen with an hourglass symbol will appear followed by the VERIFY screen. Your
pump will give a beep to alert you to verify (or change) the time/date, language and battery type.
8.
Check the displayed time/date, battery type and language. If correct, scroll
down to highlight "Confirm" and press the
displayed. For more details on changing the time and date, see Setup – Basics,
Setting/Changing Time and Date in this chapter.
NOTE: The time and date must be programmed to confirm the VERIFY screen.
9.
To change the battery type, highlight the "Battery" field and press
activate Edit mode (indicated by flashing cursor).
10.
Use the
and exit Edit mode.
P130007
41028900 RevB_OB_VIBE_US_EN_MG_R4.indd 13
Lithium L91 AA (1.5V) battery
®
/ buttons to change battery type and press
O-ring
button. The Home screen will be
to
to confirm
13
Dec 2014
Battery Cap Vent Hole
Energizer
®
Lithium L91 AA
battery (1.5V)
2 : 27 PM
Basal Rate
0.025U/Hr
Insulin: 105U
Status Menu
Alert
Your active
basal
program
is empty.
0.000U/Hr
Confirm
Basal Menu
A121 of A312
