ANIMAS® VIBE™ SYSTEM
C H AP TE R 3 - GE T TI N G Y O U R PU M P R EA D Y

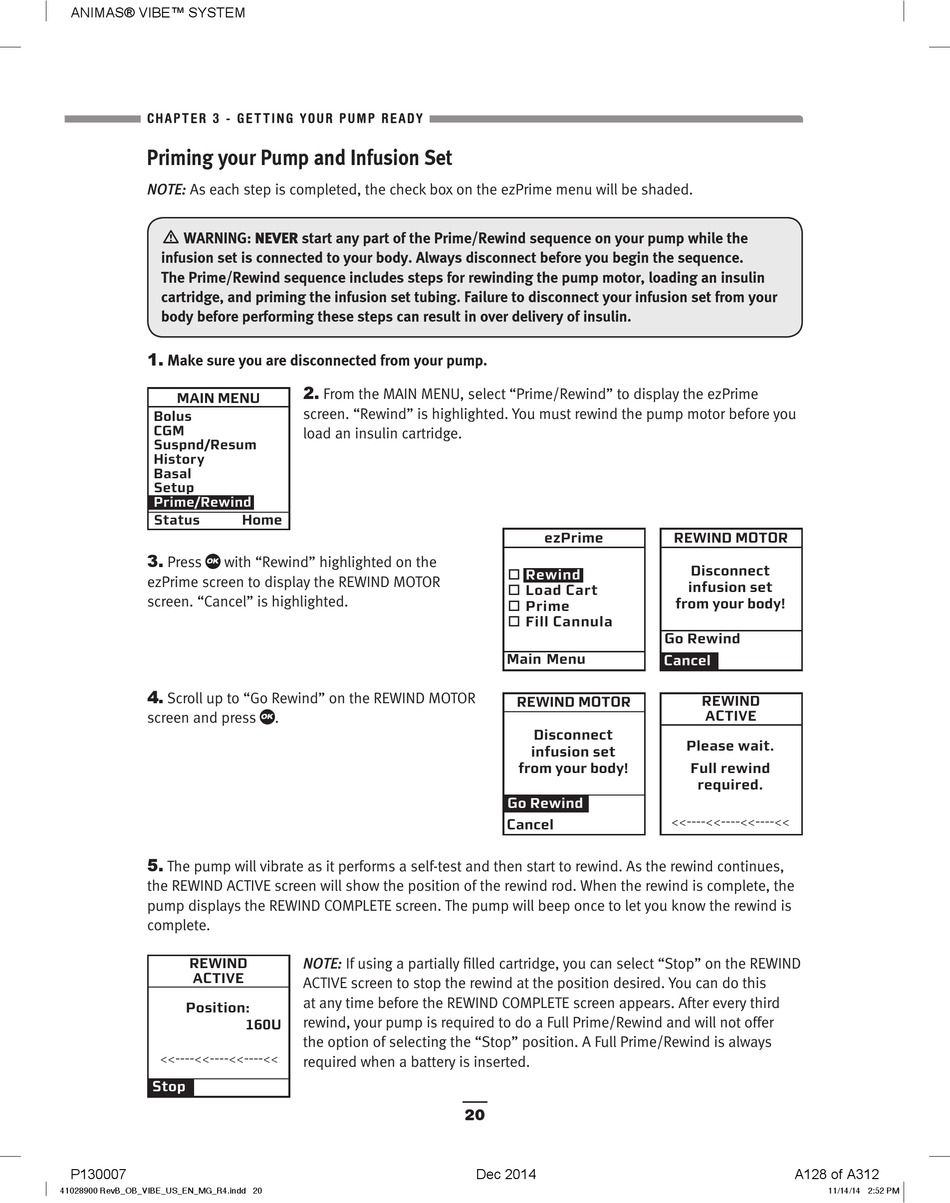

Priming your Pump and Infusion Set
NOTE: As each step is completed, the check box on the ezPrime menu will be shaded.
m
WARNING: NEVER start any part of the Prime/Rewind sequence on your pump while the
infusion set is connected to your body. Always disconnect before you begin the sequence.
The Prime/Rewind sequence includes steps for rewinding the pump motor, loading an insulin
cartridge, and priming the infusion set tubing. Failure to disconnect your infusion set from your
body before performing these steps can result in over delivery of insulin.
1.
Make sure you are disconnected from your pump.
MAIN MENU
Bolus
CGM
Suspnd/Resum
History
Basal
Setup
Prime/Rewind
Status
3.
Press with "Rewind" highlighted on the
ezPrime screen to display the REWIND MOTOR
screen. "Cancel" is highlighted.
4.
Scroll up to "Go Rewind" on the REWIND MOTOR
screen and press
5.
The pump will vibrate as it performs a self-test and then start to rewind. As the rewind continues,
the REWIND ACTIVE screen will show the position of the rewind rod. When the rewind is complete, the
pump displays the REWIND COMPLETE screen. The pump will beep once to let you know the rewind is
complete.
REWIND
ACTIVE
Position:
---- ----
<< << <<
Stop
P130007
41028900 RevB_OB_VIBE_US_EN_MG_R4.indd 20
2.
From the MAIN MENU, select "Prime/Rewind" to display the ezPrime
screen. "Rewind" is highlighted. You must rewind the pump motor before you
load an insulin cartridge.
Home
.
NOTE: If using a partially filled cartridge, you can select "Stop" on the REWIND
ACTIVE screen to stop the rewind at the position desired. You can do this
at any time before the REWIND COMPLETE screen appears. After every third
rewind, your pump is required to do a Full Prime/Rewind and will not offer
160U
the option of selecting the "Stop" position. A Full Prime/Rewind is always
----
<< required when a battery is inserted.
ezPrime
Rewind
Load Cart
Prime
Fill Cannula
Main Menu
REWIND MOTOR
Disconnect
infusion set
from your body!
Go Rewind
Cancel
20
Dec 2014
REWIND MOTOR
Disconnect
infusion set
from your body!
Go Rewind
Cancel
REWIND
ACTIVE
Please wait.
Full rewind
required.
---- ---- ----
<< << << <<
A128 of A312
