Engine Sprocket and Rear Sprocket

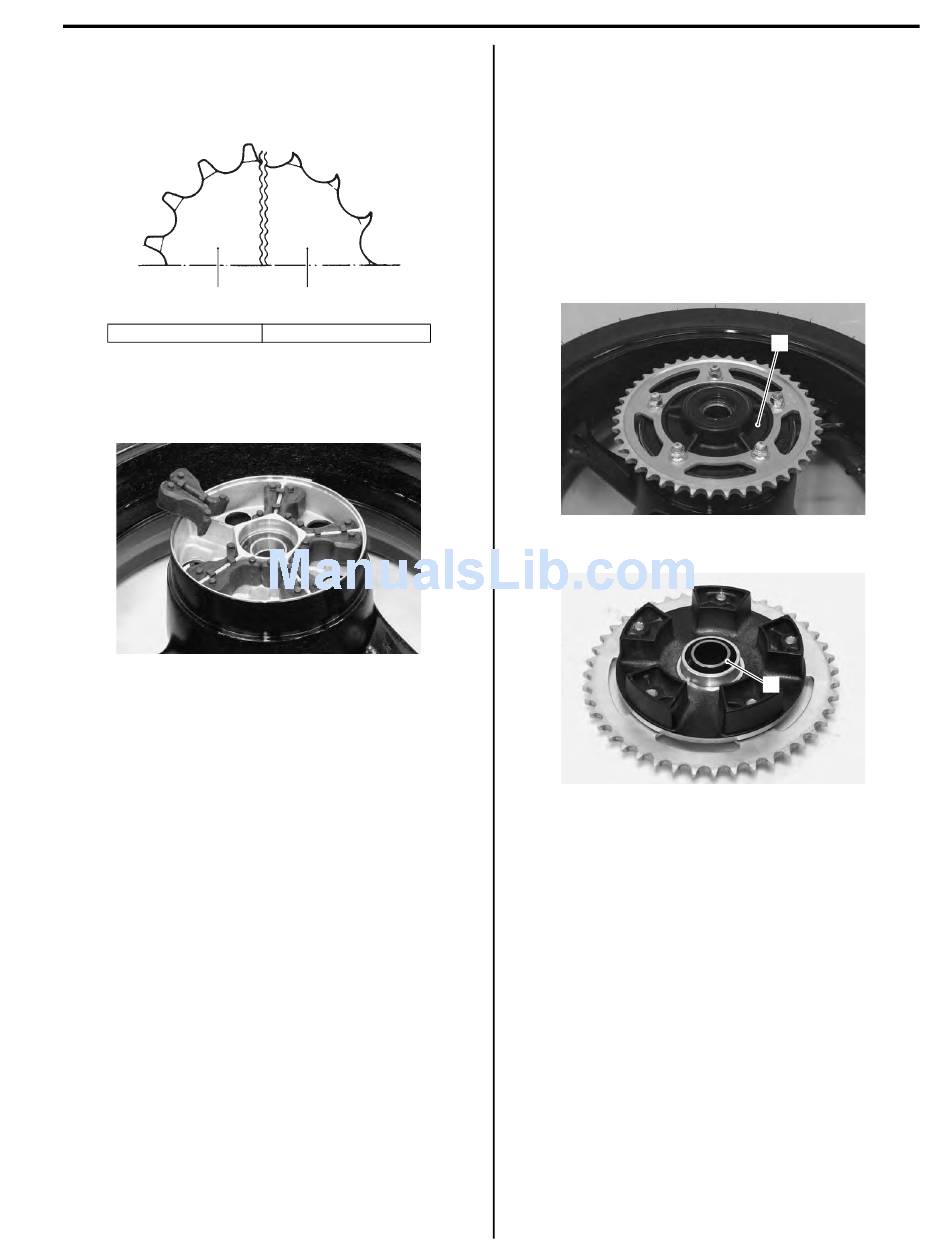

Inspect the sprocket teeth for wear. If they are worn as
shown, replace the engine sprocket, rear sprocket and
drive chain as a set.
"A"
"A": Normal wear
Wheel Damper
Inspect the dampers for wear and damage. Replace the
damper if there is anything unusual.
Drive Chain
Refer to "Drive Chain Inspection and Adjustment in
Section 0B (Page 0B-15)".
"B"
I649G1310016-02
"B": Excessive wear
I837H1310017-01
Drive Chain / Drive Train / Drive Shaft:
Sprocket Mounting Drum Dust Seal / Bearing
Removal and Installation
Removal
1) Remove the rear wheel assembly. Refer to "Rear
Wheel Assembly Removal and Installation in Section
2D (Page 2D-11)".
2) Remove the rear sprocket mounting drum assembly
(1). Refer to "Rear Sprocket / Rear Sprocket
Mounting Drum Removal and Installation (Page 3A-
3)".
3) Remove the retainer (2).
3A-5
B837H13106005
1
I837H1310018-01
2
I837H1310019-01
