1A-30 Engine General Information and Diagnosis:

DTC "C11" (P0340): CMP Sensor Circuit Malfunction

Detected Condition and Possible Cause
Detected Condition
The signal does not reach ECM for 3 sec. or more, after
receiving the starter signal.

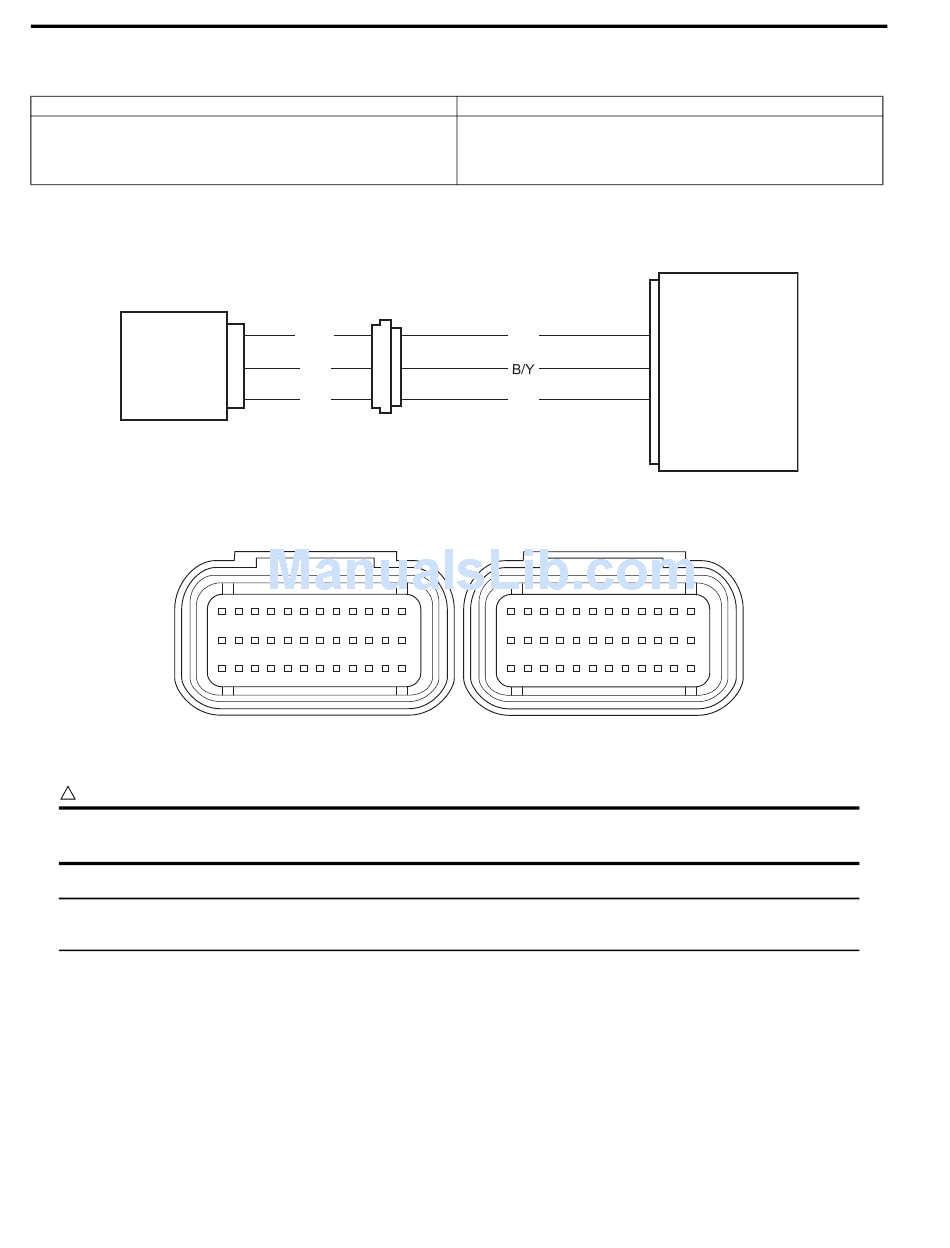

Wiring Diagram
CMP sensor
Troubleshooting
CAUTION
!
When using the multi-circuit tester, do not strongly touch the terminal of the ECM coupler with a
needle pointed tester probe to prevent terminal damage.
NOTE
After repairing the trouble, clear the DTC using SDS tool. Refer to "Use of SDS Diagnosis Reset
Procedures (Page 1A-15)".
Bl/Y
W
B/Bl
ECM coupler (Harness side)
1 2 3 4 5 6 7 8 9 10 11 12
13 14 15 16 17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32 33 34 35 36
Possible Cause
• CMP sensor circuit open or short.
• CMP sensor malfunction.
• ECM malfunction.
R
B/Br
37 38 39 40 41 42 43 44 45 46 47 48
49 50 51 52 53 54 55 56 57 58 59 60
61 62 63 64 65 66 67 68 69 70 71 72
B837H11104010
ECM
7
VCC
8
CMPS
35
E2
I837H1110006-01
I837H1110007-02
