The menus
4.2
PROFI TX

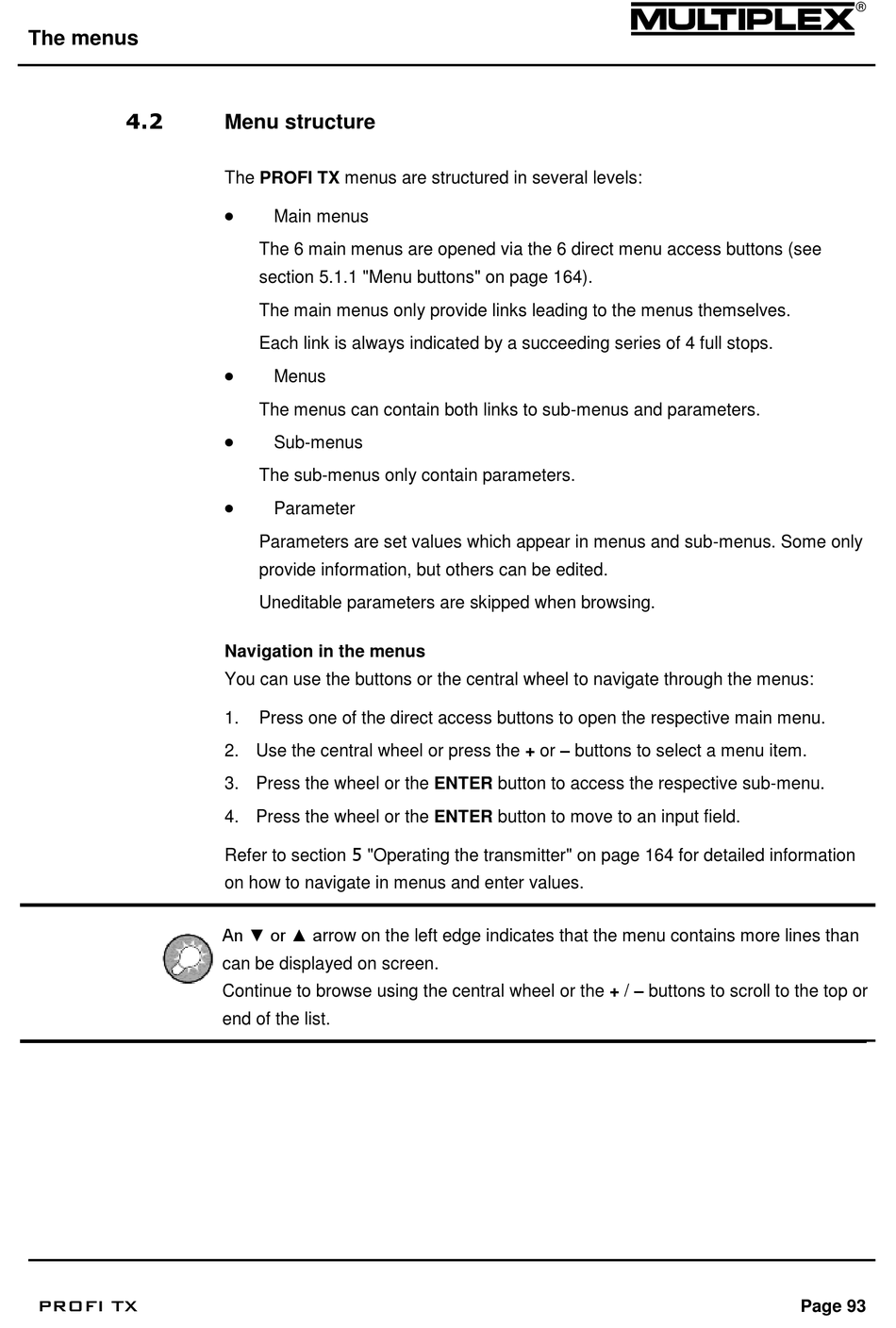

Menu structure

The PROFI TX menus are structured in several levels:

Main menus
The 6 main menus are opened via the 6 direct menu access buttons (see
section 5.1.1 "Menu buttons" on page 164).
The main menus only provide links leading to the menus themselves.
Each link is always indicated by a succeeding series of 4 full stops.

Menus
The menus can contain both links to sub-menus and parameters.

Sub-menus
The sub-menus only contain parameters.

Parameter
Parameters are set values which appear in menus and sub-menus. Some only
provide information, but others can be edited.
Uneditable parameters are skipped when browsing.
Navigation in the menus
You can use the buttons or the central wheel to navigate through the menus:
1. Press one of the direct access buttons to open the respective main menu.
2. Use the central wheel or press the + or – buttons to select a menu item.
3. Press the wheel or the ENTER button to access the respective sub-menu.
4. Press the wheel or the ENTER button to move to an input field.
Refer to section 5 "Operating the transmitter" on page 164 for detailed information
on how to navigate in menus and enter values.
An ▼ or ▲ arrow on the left edge indicates that the menu contains more lines than
can be displayed on screen.
Continue to browse using the central wheel or the + / – buttons to scroll to the top or
end of the list.
Page 93
