Operating the transmitter
5.3.2
5.3.3
PROFI TX

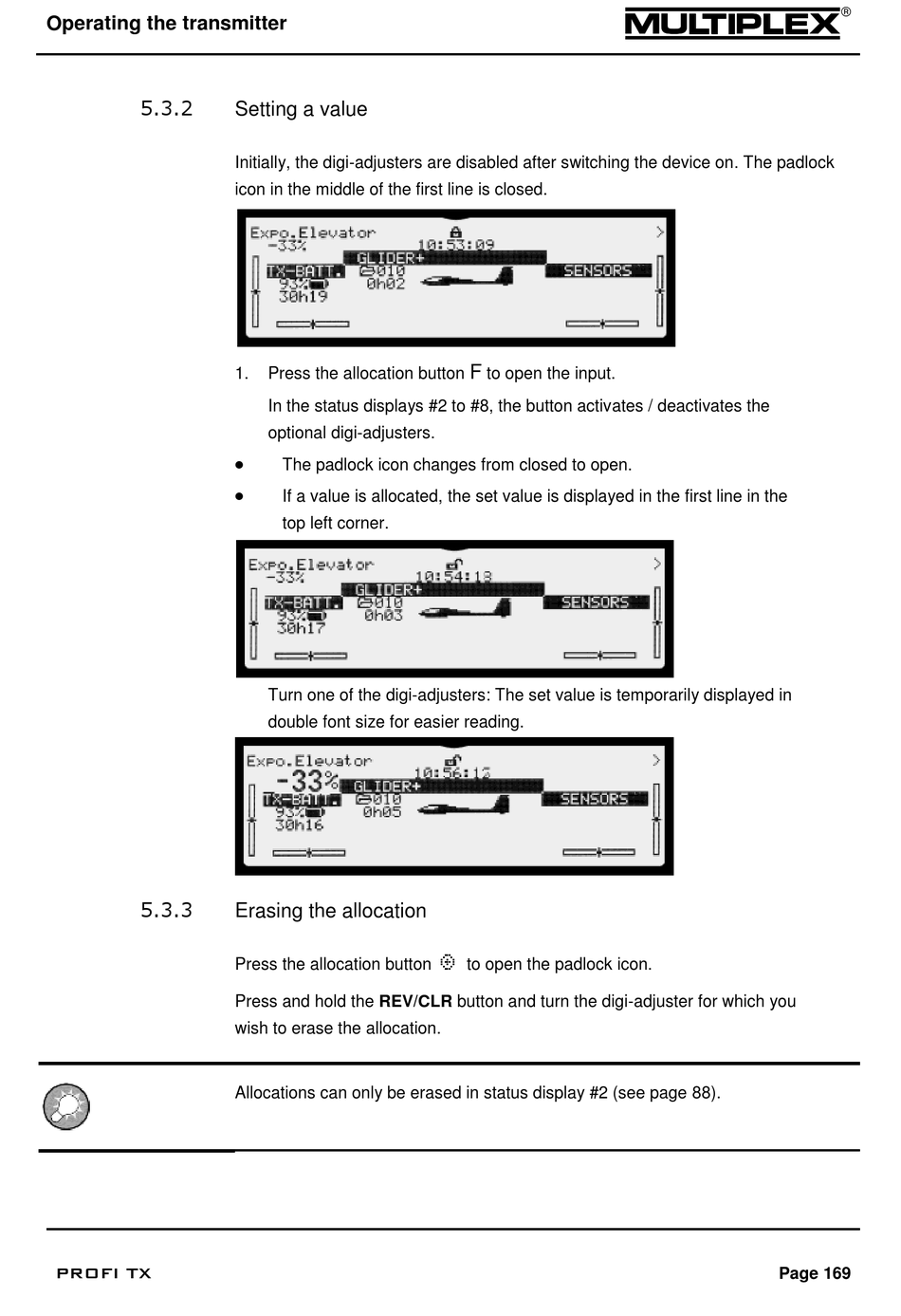

Setting a value

Initially, the digi-adjusters are disabled after switching the device on. The padlock
icon in the middle of the first line is closed.
1. Press the allocation button
In the status displays #2 to #8, the button activates / deactivates the
optional digi-adjusters.

The padlock icon changes from closed to open.

If a value is allocated, the set value is displayed in the first line in the
top left corner.
Turn one of the digi-adjusters: The set value is temporarily displayed in
double font size for easier reading.

Erasing the allocation

Press the allocation button
Press and hold the REV/CLR button and turn the digi-adjuster for which you
wish to erase the allocation.
Allocations can only be erased in status display #2 (see page 88).
F
to open the input.
§
to open the padlock icon.
Page 169
