Delta Wing Model Template - Multiplex Profi TX Operating Instructions Manual

Model templates
3.1.4
Figure 11:
PROFI TX

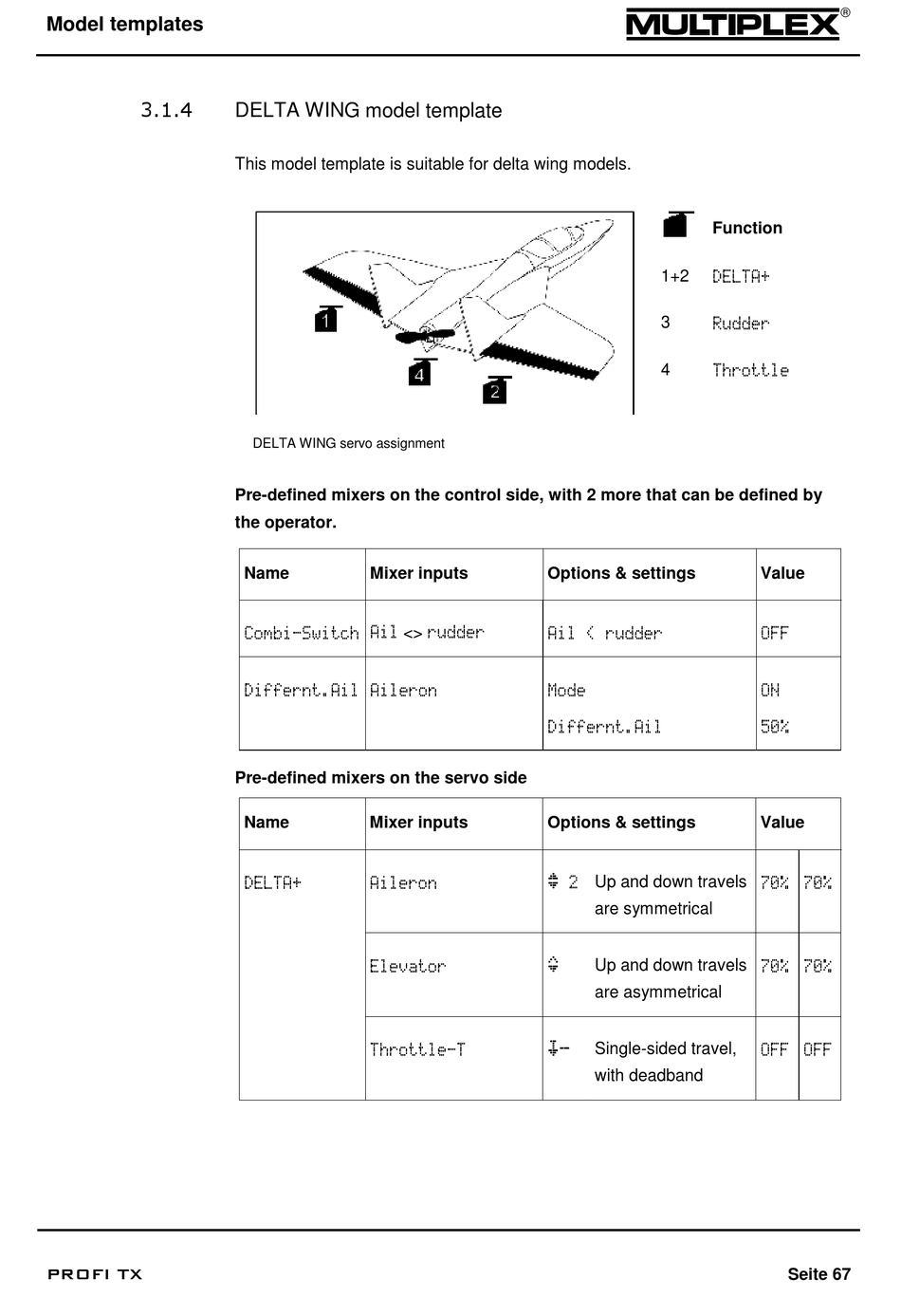

DELTA WING model template

This model template is suitable for delta wing models.
DELTA WING servo assignment
Pre-defined mixers on the control side, with 2 more that can be defined by
the operator.
Name Mixer inputs
Combi-Switch Ail <> rudder
Differnt.Ail Aileron
Pre-defined mixers on the servo side
Name Mixer inputs
DELTA+ Aileron
Elevator
Throttle-T
Function
1+2 DELTA+
3
Rudder
4
Throttle
Options & settings
Ail < rudder
Mode
Differnt.Ail
Options & settings
™
2 Up and down travels
are symmetrical
š
Up and down travels
are asymmetrical
›-
Single-sided travel,
with deadband
Value
OFF
ON
50%
Value
70% 70%
70% 70%
OFF OFF
