2.1.4

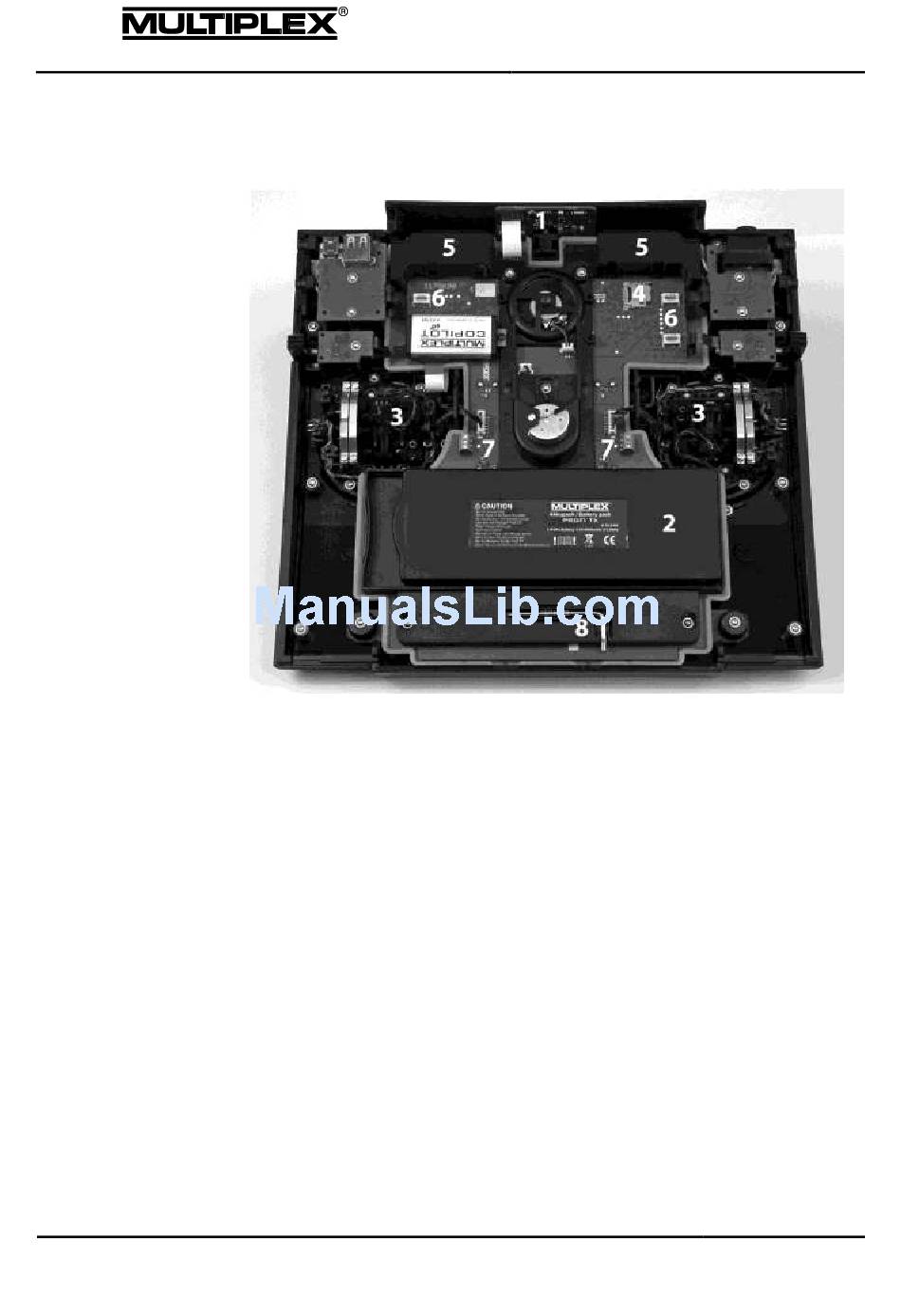

Figure 3:
Page 28
The interior
The interior of the transmitter
1
RF module with
2
Transmitter battery (see section 2.4 "
Transmitter battery" on page 40)
3
Control units
4
microSD card
5
Covers for the slots for controls installable on the front
6
4 slots for additional modules (see section "Installing additional modules" on
page 39)
7
2 clamp terminals for connecting the controls installable on the stick tops
(see section "Installing stick tops with a switch or button" on page 35)
8
TORX screwdriver
aerial
IOAT
Transmitter
PROFI TX
