Transmitter
Binding during startup star B
shown (flashing).
o The annular light of the Power button is flashing in orange.
Press and hold the ¡ button for the full duration of the transmitter startup procedure. If activated, the
4.
Binding during startup star B shown (flashing).
2.7
safety check is not performed during the binding procedure.
o The annular light of the Power button is flashing in orange.
Follow the instructions shown.
o
The (flashing) message "BINDING" is shown in the status displays #2 to #8.
Press and hold the ¡ button for the full duration of the transmitter startup procedure. If activated, the
5.
o
The annular light of the Power button is flashing in orange.
safety check is not performed during the binding procedure.
Follow the instructions shown.
o
The (flashing) message "BINDING" is shown in the status displays #2 to #8.
o
The annular light of the Power button is flashing in orange.
PROFI TX
o
The input field briefly shows the text "OFF" and then indicates the
detected type: "RX", "RX-ID", "MultiFlight", "Teacher" or "Student".
o
The annular light returns to flashing yellow.
o
The receiver LED is flashing slowly.
o
The servos that are connected to the receiver can now be controlled.
If the binding procedure does not complete automatically within a few seconds,
move the transmitter front closer to the receiver aerial(s).
The Setup > M-LINK > Binding menu item indicates if and what type of receiver
is currently connected to the PROFI TX.
The ID is displayed for ID receivers.

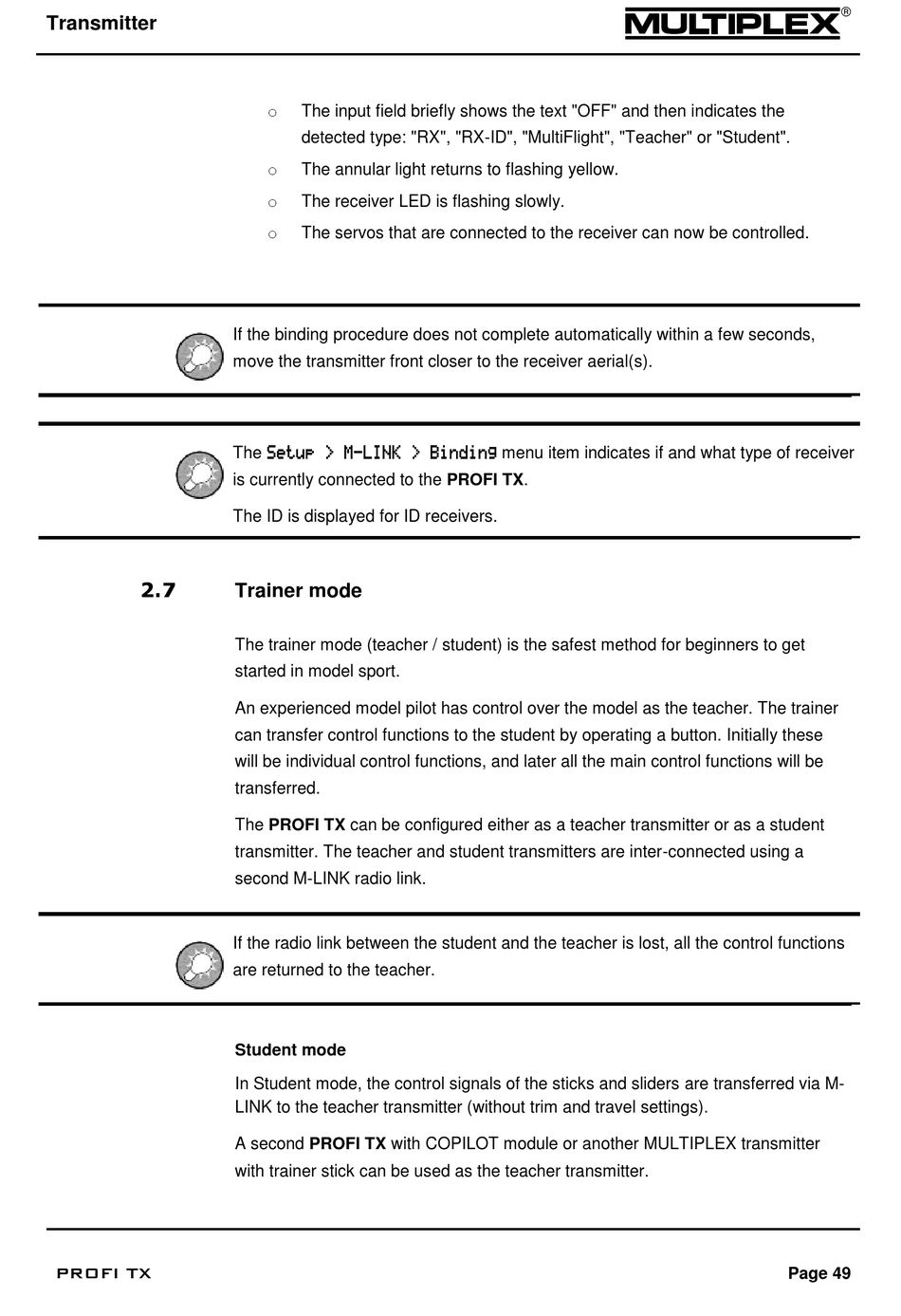

Trainer mode

The trainer mode (teacher / student) is the safest method for beginners to get
started in model sport.
An experienced model pilot has control over the model as the teacher. The trainer
can transfer control functions to the student by operating a button. Initially these
will be individual control functions, and later all the main control functions will be
transferred.
The PROFI TX can be configured either as a teacher transmitter or as a student
transmitter. The teacher and student transmitters are inter-connected using a
second M-LINK radio link.
If the radio link between the student and the teacher is lost, all the control functions
are returned to the teacher.
Student mode
In Student mode, the control signals of the sticks and sliders are transferred via M-
LINK to the teacher transmitter (without trim and travel settings).
A second PROFI TX with COPILOT module or another MULTIPLEX transmitter
with trainer stick can be used as the teacher transmitter.
Page 49
