5.4
5.4.1
Page 170

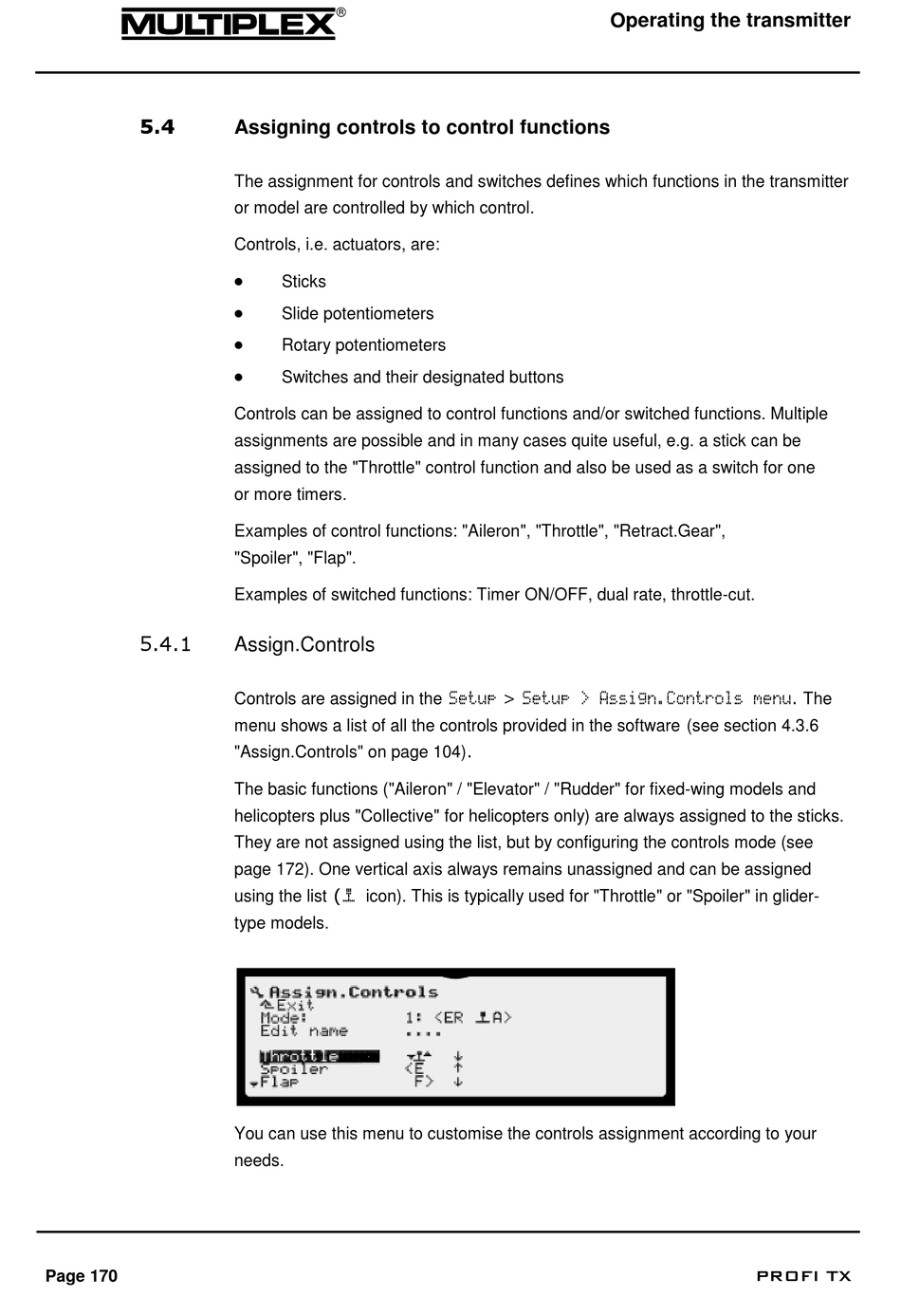

Assigning controls to control functions

The assignment for controls and switches defines which functions in the transmitter
or model are controlled by which control.
Controls, i.e. actuators, are:

Sticks

Slide potentiometers

Rotary potentiometers

Switches and their designated buttons
Controls can be assigned to control functions and/or switched functions. Multiple
assignments are possible and in many cases quite useful, e.g. a stick can be
assigned to the "Throttle" control function and also be used as a switch for one
or more timers.
Examples of control functions: "Aileron", "Throttle", "Retract.Gear",
"Spoiler", "Flap".
Examples of switched functions: Timer ON/OFF, dual rate, throttle-cut.

Assign.Controls

Controls are assigned in the Setup > Setup > Assign.Controls menu. The
menu shows a list of all the controls provided in the software (see section 4.3.6
"Assign.Controls" on page 104).
The basic functions ("Aileron" / "Elevator" / "Rudder" for fixed-wing models and
helicopters plus "Collective" for helicopters only) are always assigned to the sticks.
They are not assigned using the list, but by configuring the controls mode (see
page 172). One vertical axis always remains unassigned and can be assigned
using the list (¢ icon). This is typically used for "Throttle" or "Spoiler" in glider-
type models.
You can use this menu to customise the controls assignment according to your
needs.
