Transmitter
2.9
2.9.1
2.9.2
2.9.3
PROFI TX

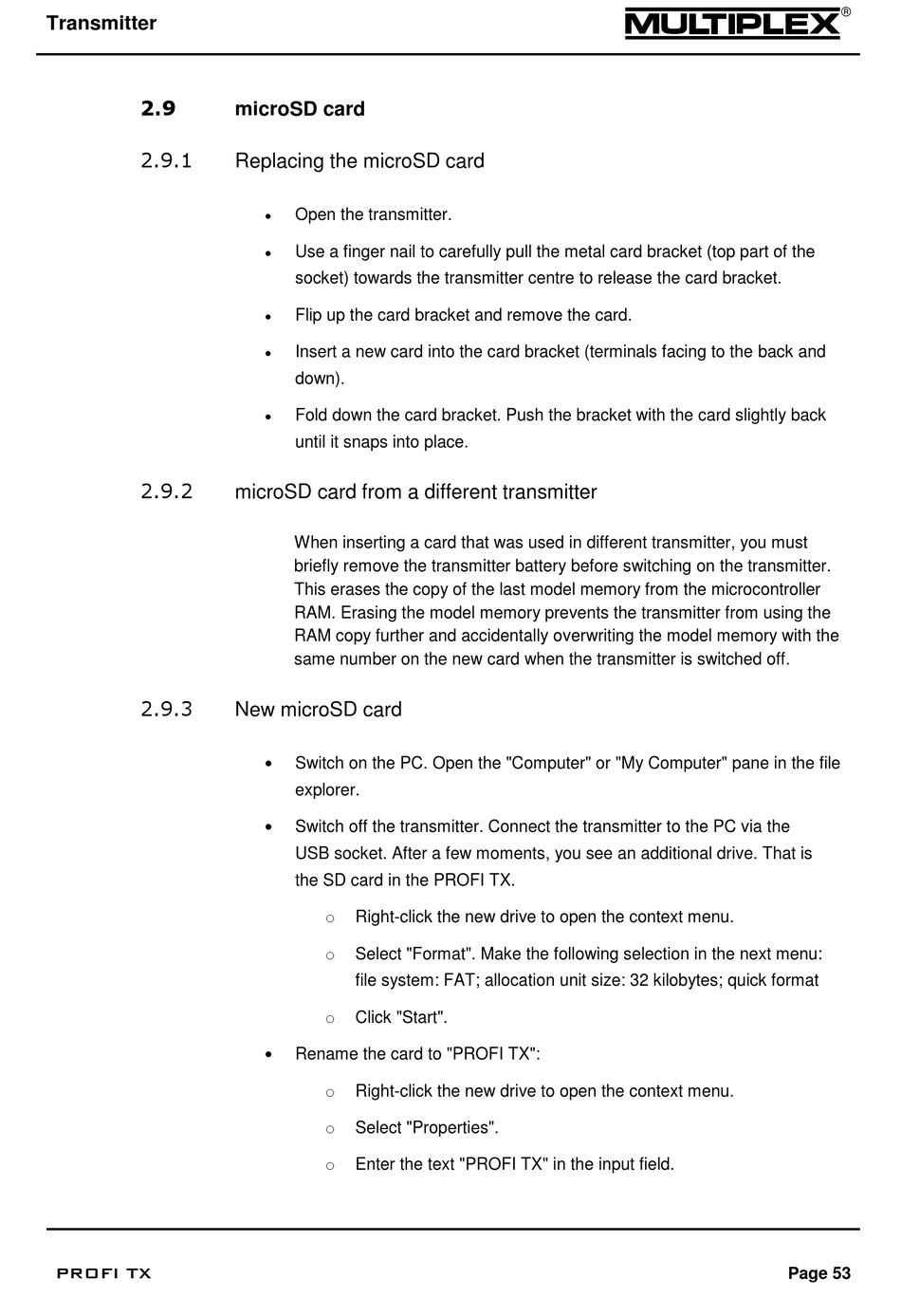

microSD card

Replacing the microSD card


Open the transmitter.

Use a finger nail to carefully pull the metal card bracket (top part of the
socket) towards the transmitter centre to release the card bracket.

Flip up the card bracket and remove the card.

Insert a new card into the card bracket (terminals facing to the back and
down).

Fold down the card bracket. Push the bracket with the card slightly back
until it snaps into place.

microSD card from a different transmitter

When inserting a card that was used in different transmitter, you must
briefly remove the transmitter battery before switching on the transmitter.
This erases the copy of the last model memory from the microcontroller
RAM. Erasing the model memory prevents the transmitter from using the
RAM copy further and accidentally overwriting the model memory with the
same number on the new card when the transmitter is switched off.

New microSD card


Switch on the PC. Open the "Computer" or "My Computer" pane in the file
explorer.

Switch off the transmitter. Connect the transmitter to the PC via the
USB socket. After a few moments, you see an additional drive. That is
the SD card in the PROFI TX.
o
Right-click the new drive to open the context menu.
o
Select "Format". Make the following selection in the next menu:
file system: FAT; allocation unit size: 32 kilobytes; quick format
o
Click "Start".

Rename the card to "PROFI TX":
o
Right-click the new drive to open the context menu.
o
Select "Properties".
o
Enter the text "PROFI TX" in the input field.
Page 53
