7.2.7.1
Page 202

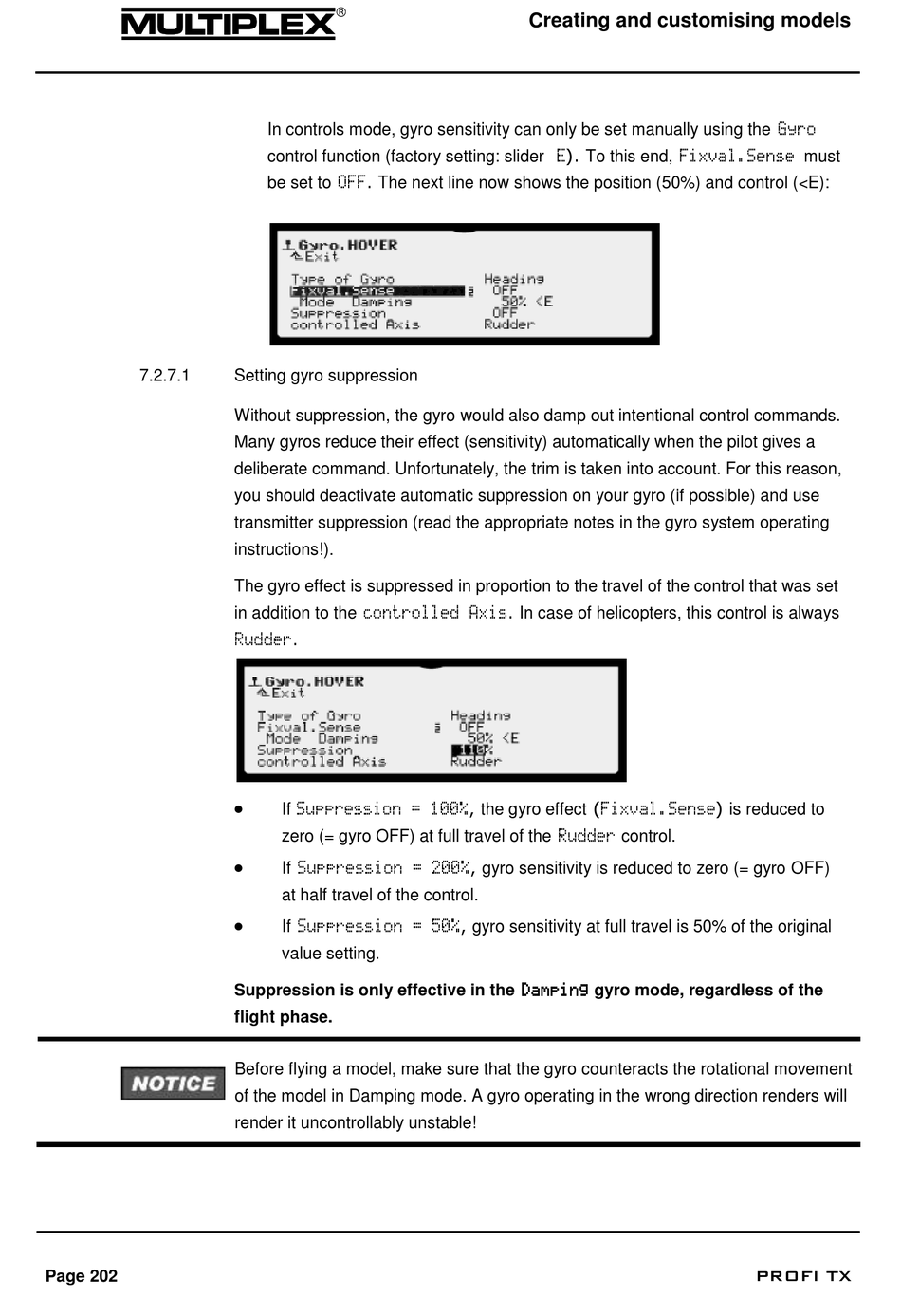

In controls mode, gyro sensitivity can only be set manually using the Gyro
control function (factory setting: slider E). To this end, Fixval.Sense must
be set to OFF. The next line now shows the position (50%) and control (<E):

Setting gyro suppression

Without suppression, the gyro would also damp out intentional control commands.
Many gyros reduce their effect (sensitivity) automatically when the pilot gives a
deliberate command. Unfortunately, the trim is taken into account. For this reason,
you should deactivate automatic suppression on your gyro (if possible) and use
transmitter suppression (read the appropriate notes in the gyro system operating
instructions!).
The gyro effect is suppressed in proportion to the travel of the control that was set
in addition to the controlled Axis. In case of helicopters, this control is always
Rudder.

If Suppression = 100%, the gyro effect (Fixval.Sense) is reduced to
zero (= gyro OFF) at full travel of the Rudder control.

If Suppression = 200%, gyro sensitivity is reduced to zero (= gyro OFF)
at half travel of the control.

If Suppression = 50%, gyro sensitivity at full travel is 50% of the original
value setting.
Suppression is only effective in the Damping gyro mode, regardless of the
flight phase.
Before flying a model, make sure that the gyro counteracts the rotational movement
of the model in Damping mode. A gyro operating in the wrong direction renders will
render it uncontrollably unstable!
