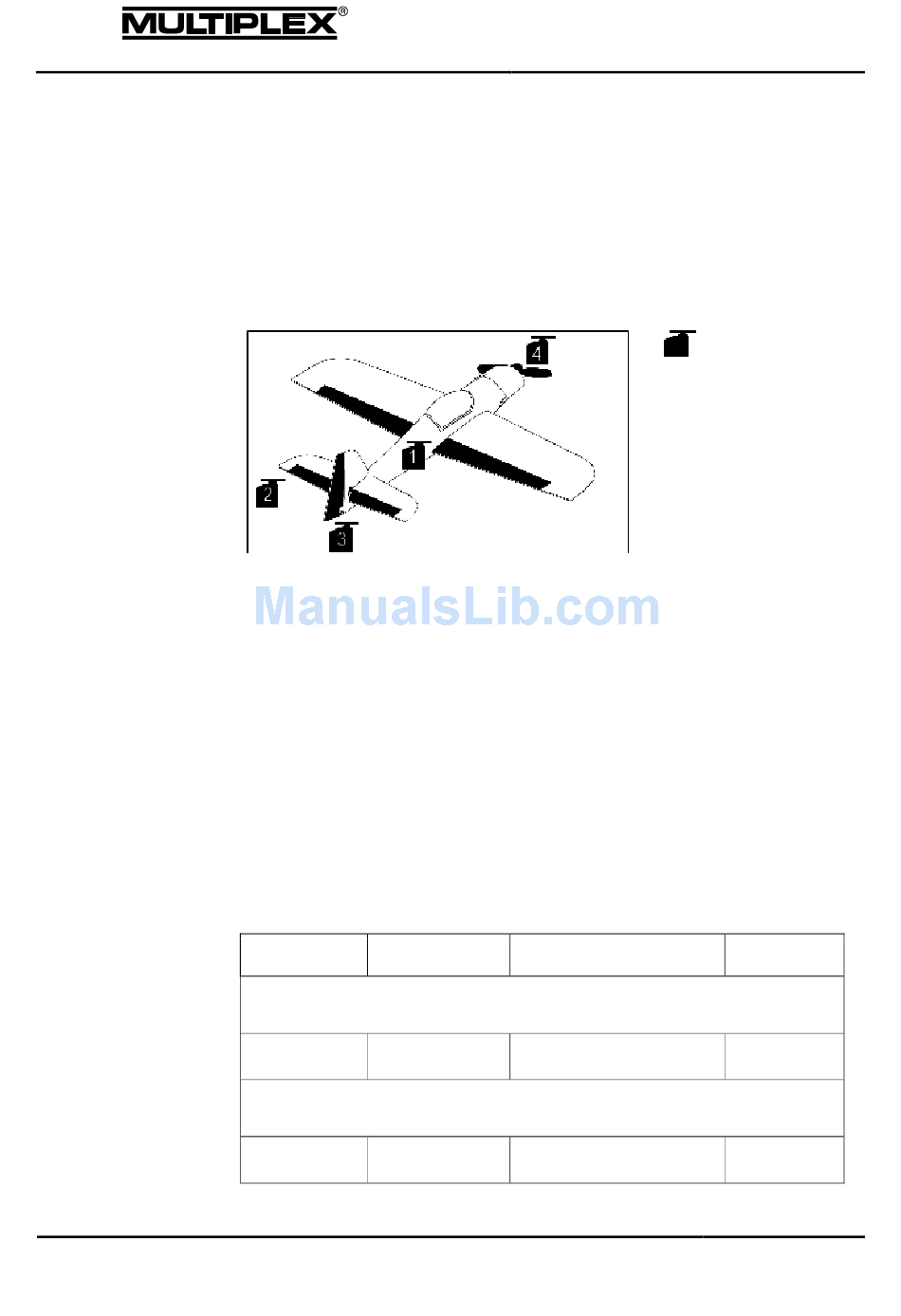

Figure 8:
Seite 58

BASIC model template

This model template is designed for simple power or glider-type models and
for models without aileron.
This model template should also be used for model flying simulators.
Servo assignment
BASIC servo assignment
If you install a second aileron servo to provide separate linkage for the ailerons,
simply assign the Aileron function to a free servo (see "Assign" starting from
page 149). Would you like to raise the ailerons as an airbrake? In that case, assign
the AILERONS+ mixer to both aileron servos at the same position. The extended
airbrake will cause major load distribution changes: Change the elevator to
ELEVATOR+. It is then possible to compensate for the effects of Throttle and
Spoiler (airbrake).
Pre-defined mixers on the control side, with 2 more that can be defined by
the operator.
Mixer inputs
Name
Makes it easier to fly accurate turns:
Ail <> rudder
Combi-Switch
Optimises flying turns:
Aileron
Differnt.Ail
1
2
3
4
Options & settings
Ail < rudder
Mode
Model templates
Function
Aileron
Elevator
Rudder
Power system
Value
OFF
OFF
