4.5
4.5.1
4.5.1.1
Page 132

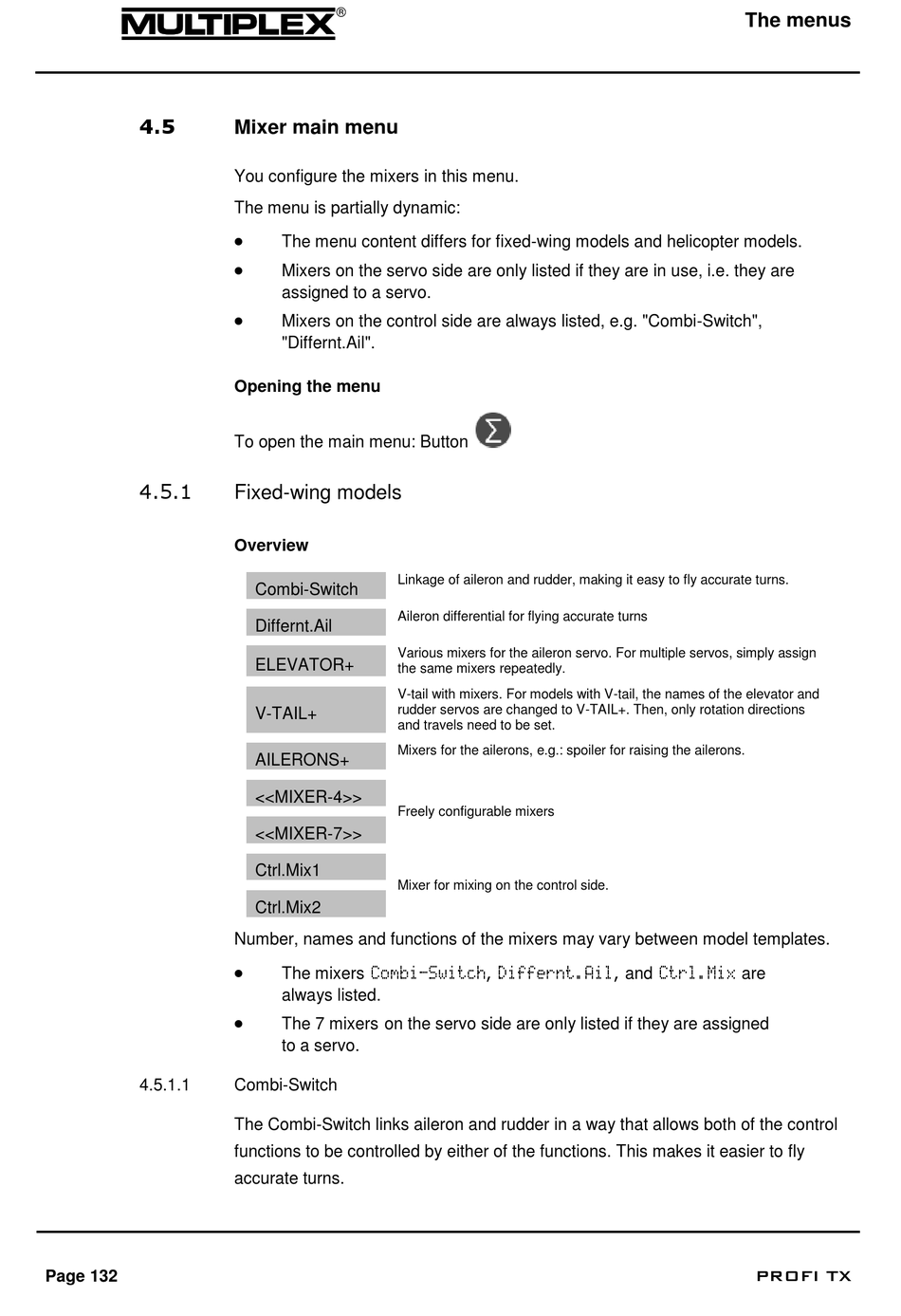

Mixer main menu

You configure the mixers in this menu.
The menu is partially dynamic:

The menu content differs for fixed-wing models and helicopter models.

Mixers on the servo side are only listed if they are in use, i.e. they are
assigned to a servo.

Mixers on the control side are always listed, e.g. "Combi-Switch",
"Differnt.Ail".
Opening the menu
To open the main menu: Button

Fixed-wing models

Overview
Linkage of aileron and rudder, making it easy to fly accurate turns.

Combi-Switch

Aileron differential for flying accurate turns
Differnt.Ail
Various mixers for the aileron servo. For multiple servos, simply assign
ELEVATOR+
the same mixers repeatedly.
V-tail with mixers. For models with V-tail, the names of the elevator and
rudder servos are changed to V-TAIL+. Then, only rotation directions
V-TAIL+
and travels need to be set.
Mixers for the ailerons, e.g.: spoiler for raising the ailerons.
AILERONS+
<<MIXER-4>>
Freely configurable mixers
<<MIXER-7>>
Ctrl.Mix1
Mixer for mixing on the control side.
Ctrl.Mix2
Number, names and functions of the mixers may vary between model templates.

The mixers Combi-Switch, Differnt.Ail, and Ctrl.Mix are
always listed.

The 7 mixers on the servo side are only listed if they are assigned
to a servo.
Combi-Switch
The Combi-Switch links aileron and rudder in a way that allows both of the control
functions to be controlled by either of the functions. This makes it easier to fly
accurate turns.
