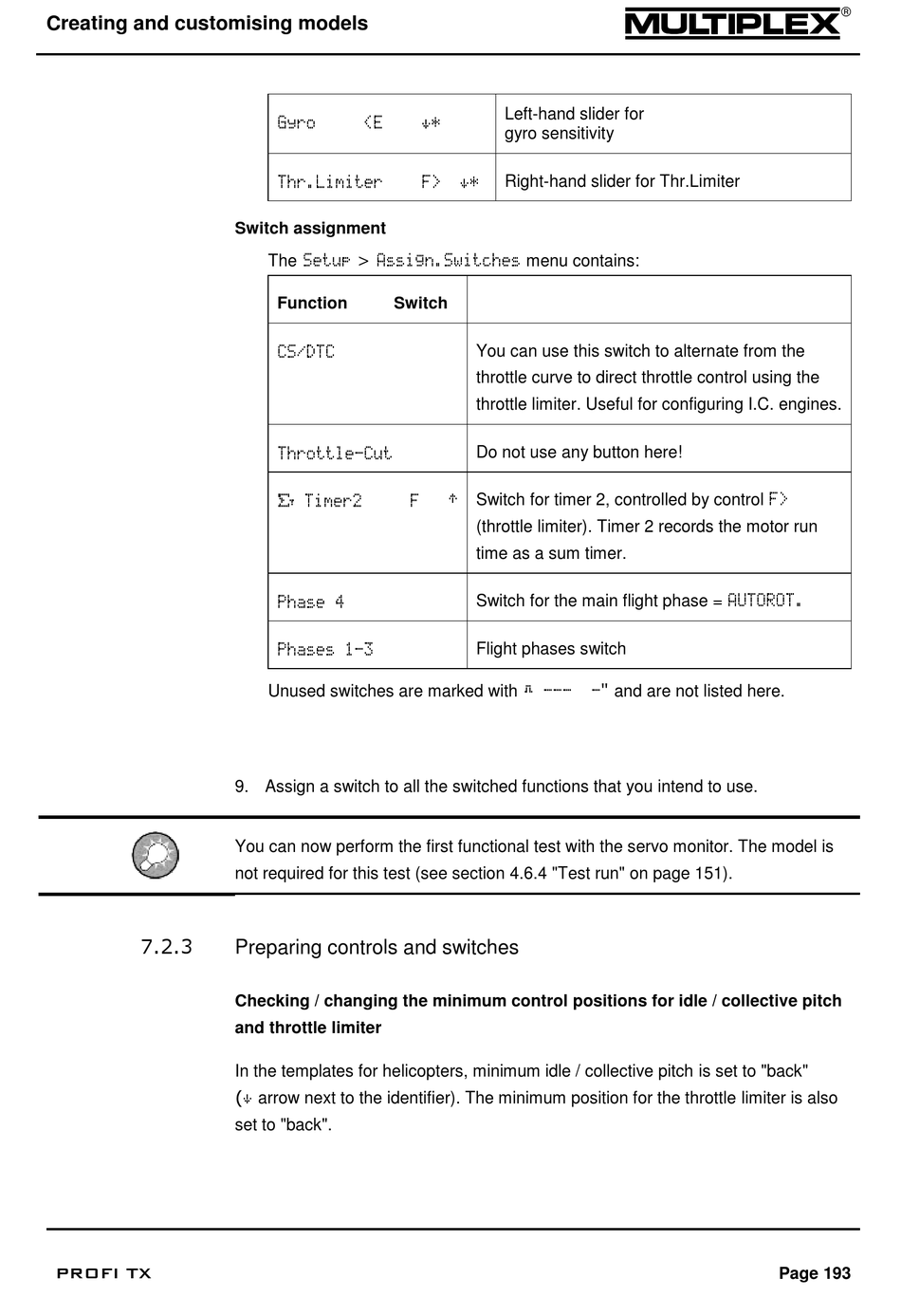

Creating and customising models
7.2.3
PROFI TX
Gyro <E
Thr.Limiter
Switch assignment
The Setup > Assign.Switches menu contains:
Function Switch
CS/DTC
Throttle-Cut
´ Timer2
Phase 4
Phases 1-3
Unused switches are marked with „ ---
9. Assign a switch to all the switched functions that you intend to use.
You can now perform the first functional test with the servo monitor. The model is
not required for this test (see section 4.6.4 "Test run" on page 151).

Preparing controls and switches

Checking / changing the minimum control positions for idle / collective pitch
and throttle limiter
In the templates for helicopters, minimum idle / collective pitch is set to "back"
(# arrow next to the identifier). The minimum position for the throttle limiter is also
set to "back".
Left-hand slider for
#*
gyro sensitivity
Right-hand slider for Thr.Limiter
F> #*
You can use this switch to alternate from the
throttle curve to direct throttle control using the
throttle limiter. Useful for configuring I.C. engines.
Do not use any button here!
Switch for timer 2, controlled by control F>
F '
(throttle limiter). Timer 2 records the motor run
time as a sum timer.
Switch for the main flight phase = AUTOROT.
Flight phases switch
-" and are not listed here.
