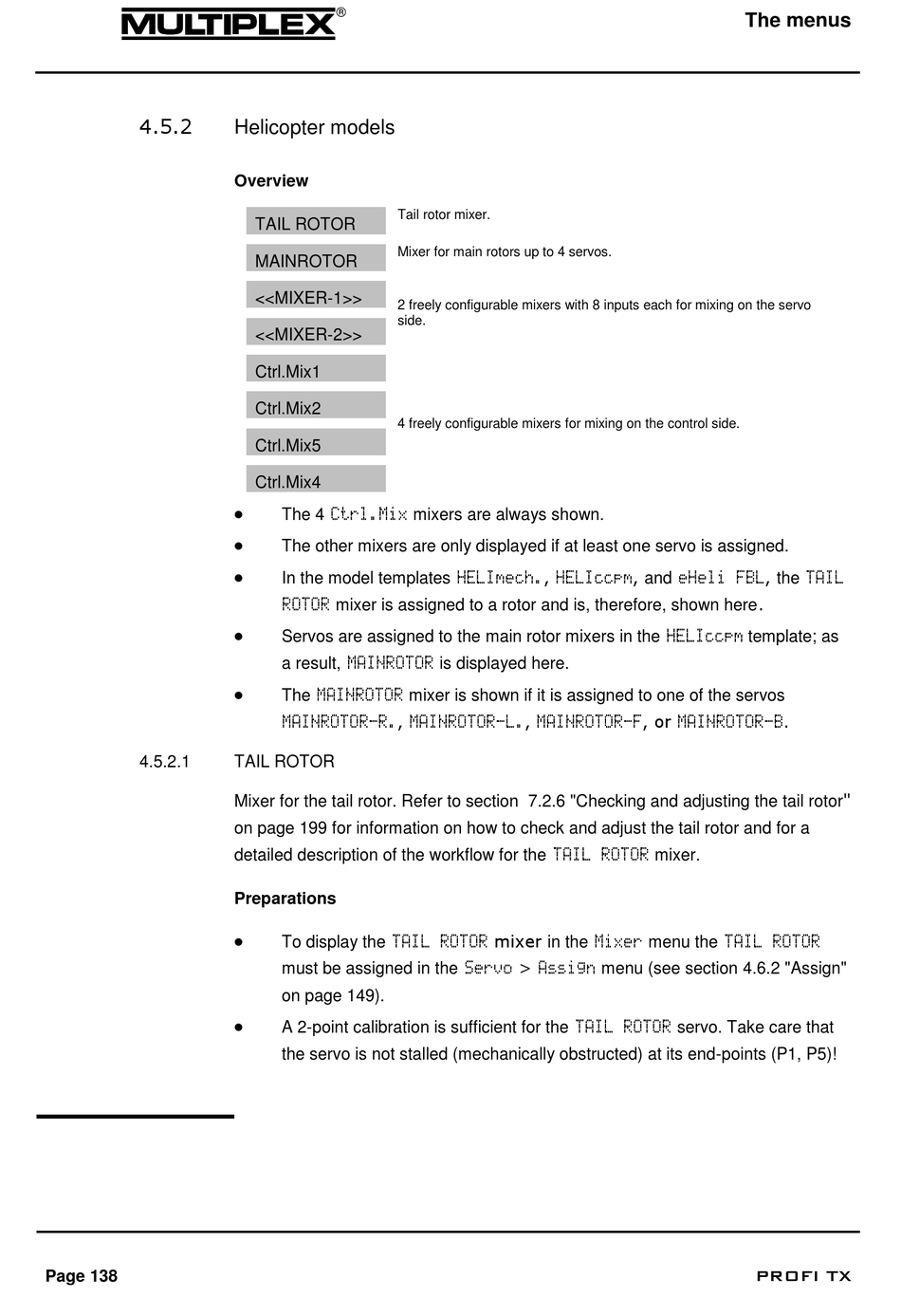

Helicopter models

Overview
Tail rotor mixer.

TAIL ROTOR

Mixer for main rotors up to 4 servos.
MAINROTOR
<<MIXER-1>>
2 freely configurable mixers with 8 inputs each for mixing on the servo
side.
<<MIXER-2>>
Ctrl.Mix1
Ctrl.Mix2
4 freely configurable mixers for mixing on the control side.
Ctrl.Mix5
Ctrl.Mix4

The 4 Ctrl.Mix mixers are always shown.

The other mixers are only displayed if at least one servo is assigned.

In the model templates HELImech., HELIccpm, and eHeli FBL, the TAIL
ROTOR mixer is assigned to a rotor and is, therefore, shown here.

Servos are assigned to the main rotor mixers in the HELIccpm template; as
a result, MAINROTOR is displayed here.

The MAINROTOR mixer is shown if it is assigned to one of the servos
MAINROTOR-R., MAINROTOR-L., MAINROTOR-F, or MAINROTOR-B.
TAIL ROTOR
Mixer for the tail rotor. Refer to section 7.2.6 "Checking and adjusting the tail rotor"
on page 199 for information on how to check and adjust the tail rotor and for a
detailed description of the workflow for the TAIL ROTOR mixer.
Preparations

To display the TAIL ROTOR mixer in the Mixer menu the TAIL ROTOR
must be assigned in the Servo > Assign menu (see section 4.6.2 "Assign"
on page 149).

A 2-point calibration is sufficient for the TAIL ROTOR servo. Take care that
the servo is not stalled (mechanically obstructed) at its end-points (P1, P5)!
