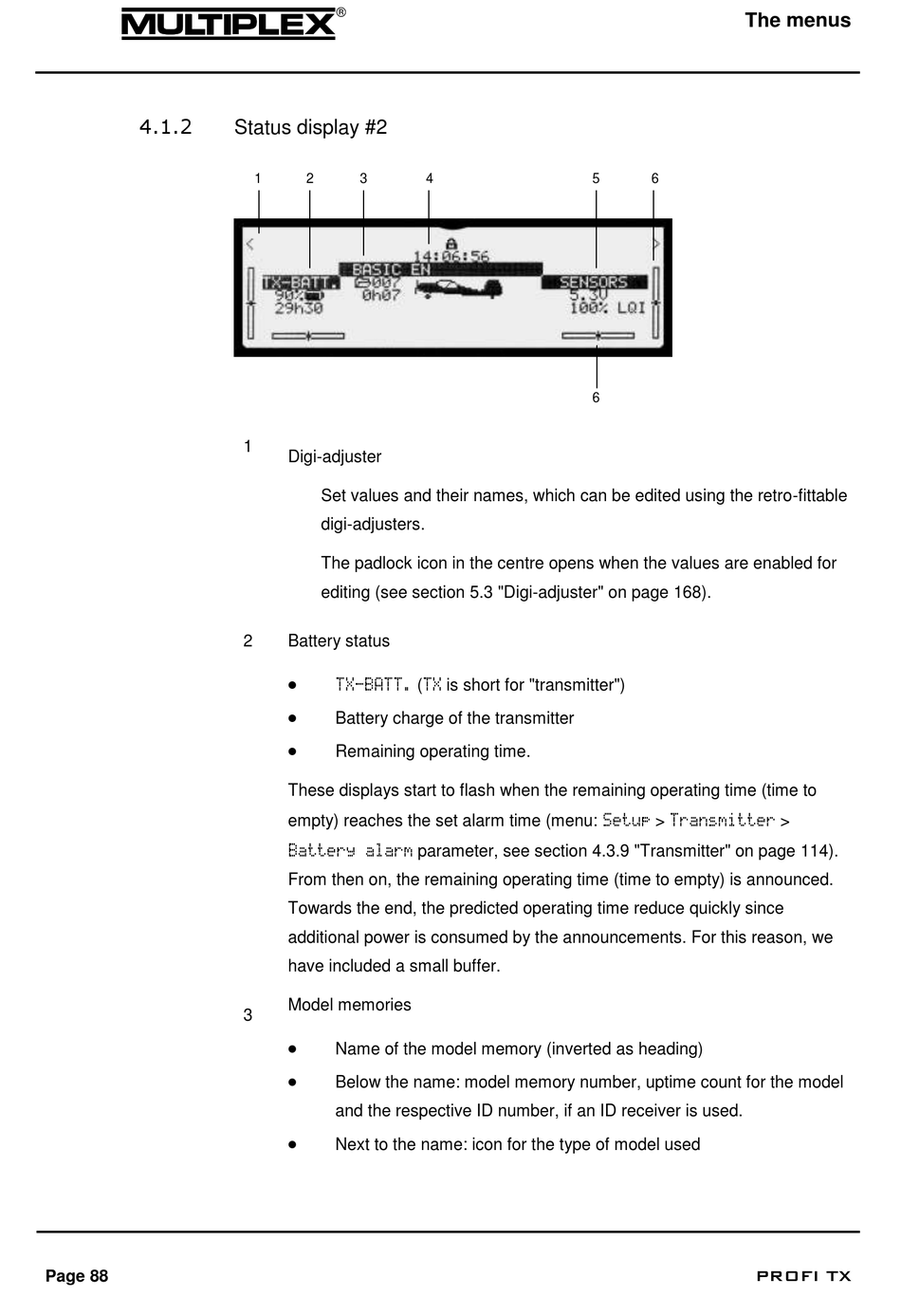

Status display #2

1 2 3
2 2
1
Digi-adjuster
Set values and their names, which can be edited using the retro-fittable
digi-adjusters.
The padlock icon in the centre opens when the values are enabled for
editing (see section 5.3 "Digi-adjuster" on page 168).
2

Battery status


TX-BATT. (TX is short for "transmitter")

Battery charge of the transmitter

Remaining operating time.
These displays start to flash when the remaining operating time (time to
empty) reaches the set alarm time (menu: Setup > Transmitter >
Battery alarm parameter, see section 4.3.9 "Transmitter" on page 114).
From then on, the remaining operating time (time to empty) is announced.
Towards the end, the predicted operating time reduce quickly since
additional power is consumed by the announcements. For this reason, we
have included a small buffer.
Model memories
3

Name of the model memory (inverted as heading)

Below the name: model memory number, uptime count for the model
and the respective ID number, if an ID receiver is used.

Next to the name: icon for the type of model used
