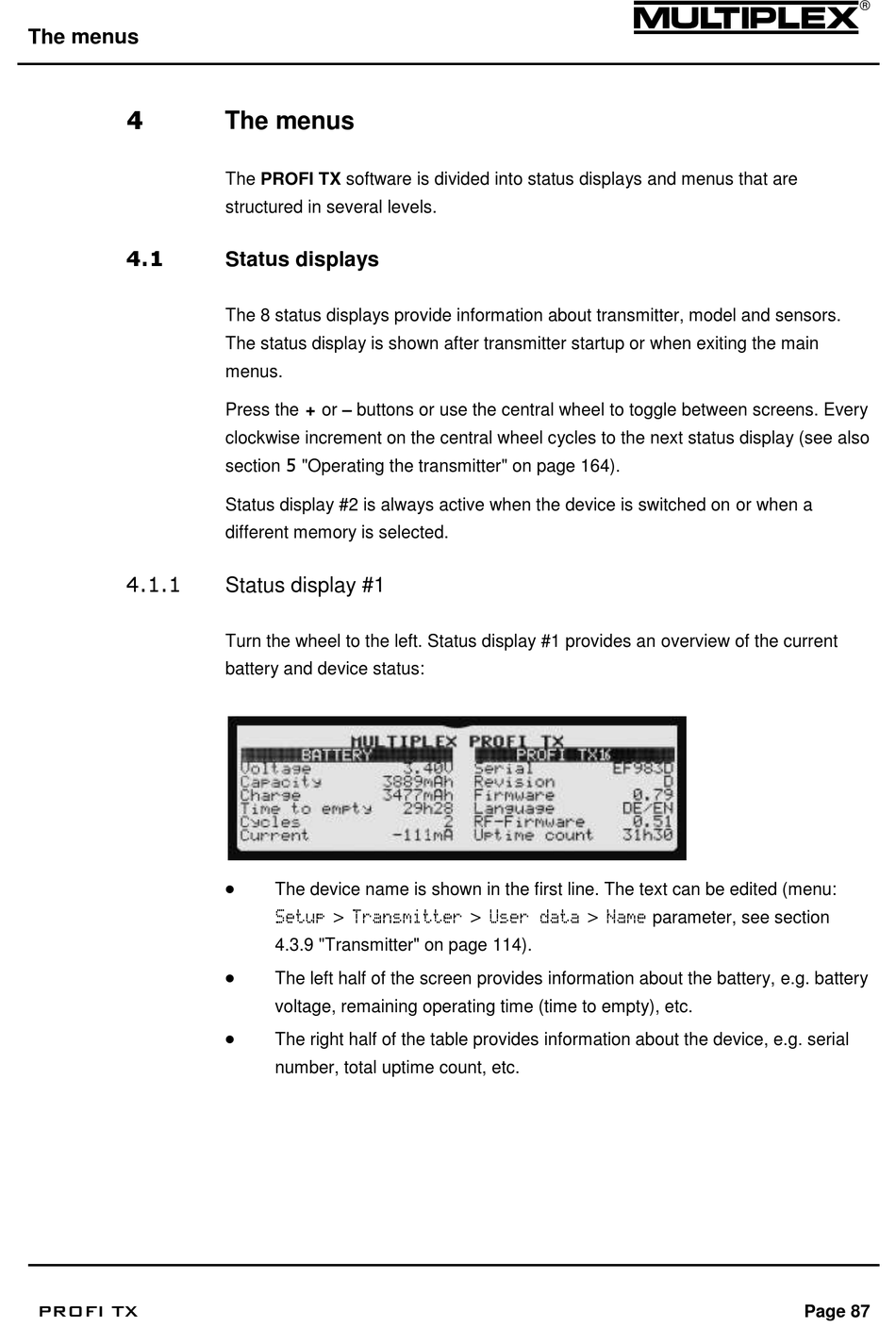

The menus

4
4.1
4.1.1
PROFI TX
The menus
The PROFI TX software is divided into status displays and menus that are
structured in several levels.

Status displays

The 8 status displays provide information about transmitter, model and sensors.
The status display is shown after transmitter startup or when exiting the main
menus.
Press the + or – buttons or use the central wheel to toggle between screens. Every
clockwise increment on the central wheel cycles to the next status display (see also
section 5 "Operating the transmitter" on page 164).
Status display #2 is always active when the device is switched on or when a
different memory is selected.

Status display #1

Turn the wheel to the left. Status display #1 provides an overview of the current
battery and device status:

The device name is shown in the first line. The text can be edited (menu:
Setup > Transmitter > User data > Name parameter, see section
4.3.9 "Transmitter" on page 114).

The left half of the screen provides information about the battery, e.g. battery
voltage, remaining operating time (time to empty), etc.

The right half of the table provides information about the device, e.g. serial
number, total uptime count, etc.
Page 87
