To set a switching threshold proceed as follows:
1. Select the desired control.
2. Open the down switching threshold.
3. Adjust the value by pressing the + or – buttons or using the central wheel.
4. Open the up switching threshold.
5. Adjust the value.

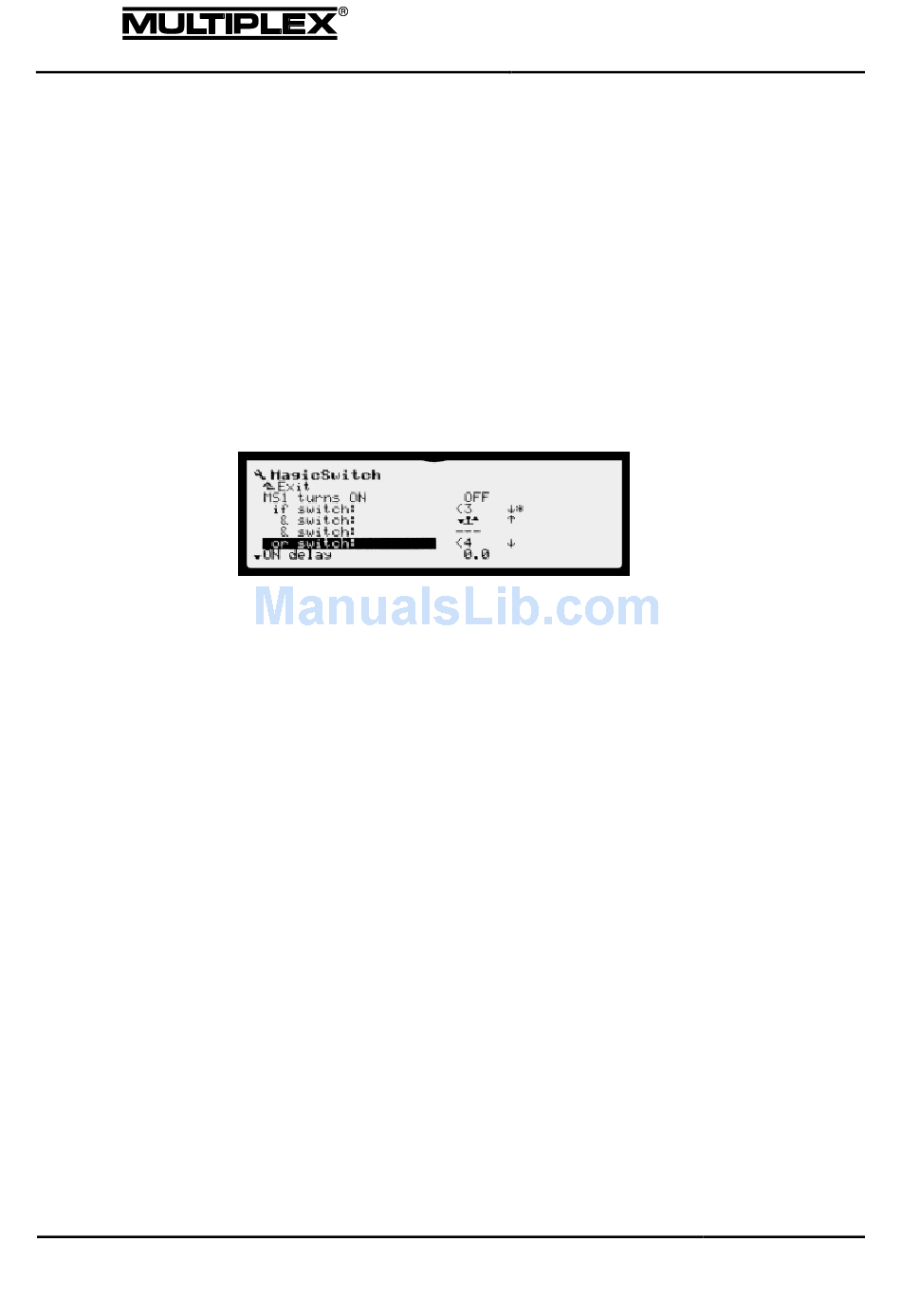

MagicSwitch

You can use the MagicSwitch sub-menu to change the configuration and
settings for the 4 MagicSwitches MS1 to MS4 (see section "MagicSwitch" on
page 175).
The following settings are available:
if / & switch
Assignment of switches that are combined by AND; i.e. the MagicSwitch is
"ON" when all of the switches assigned here are ON.
or switch
Assignment of a switch that is combined by OR. The MagicSwitch is ON when
either this switch is ON or when all of the switches that are combined by AND
are ON.
ON delay, OFF delay
Delay time for switching the MagicSwitch output; OFF and ON delay are
configured separately.
To assign a MagicSwitch proceed as follows:
1. Open the desired input field.
2. Assign the desired switch using the central wheel.
3. Set the switch to the ON position or select it using the REV/CLR button.
4. Close the input field.
MS3 and MS4 were added in version 2. For reasons of backward compatibility,
the additional MagicSwitches were added at the end of the list of switches.
