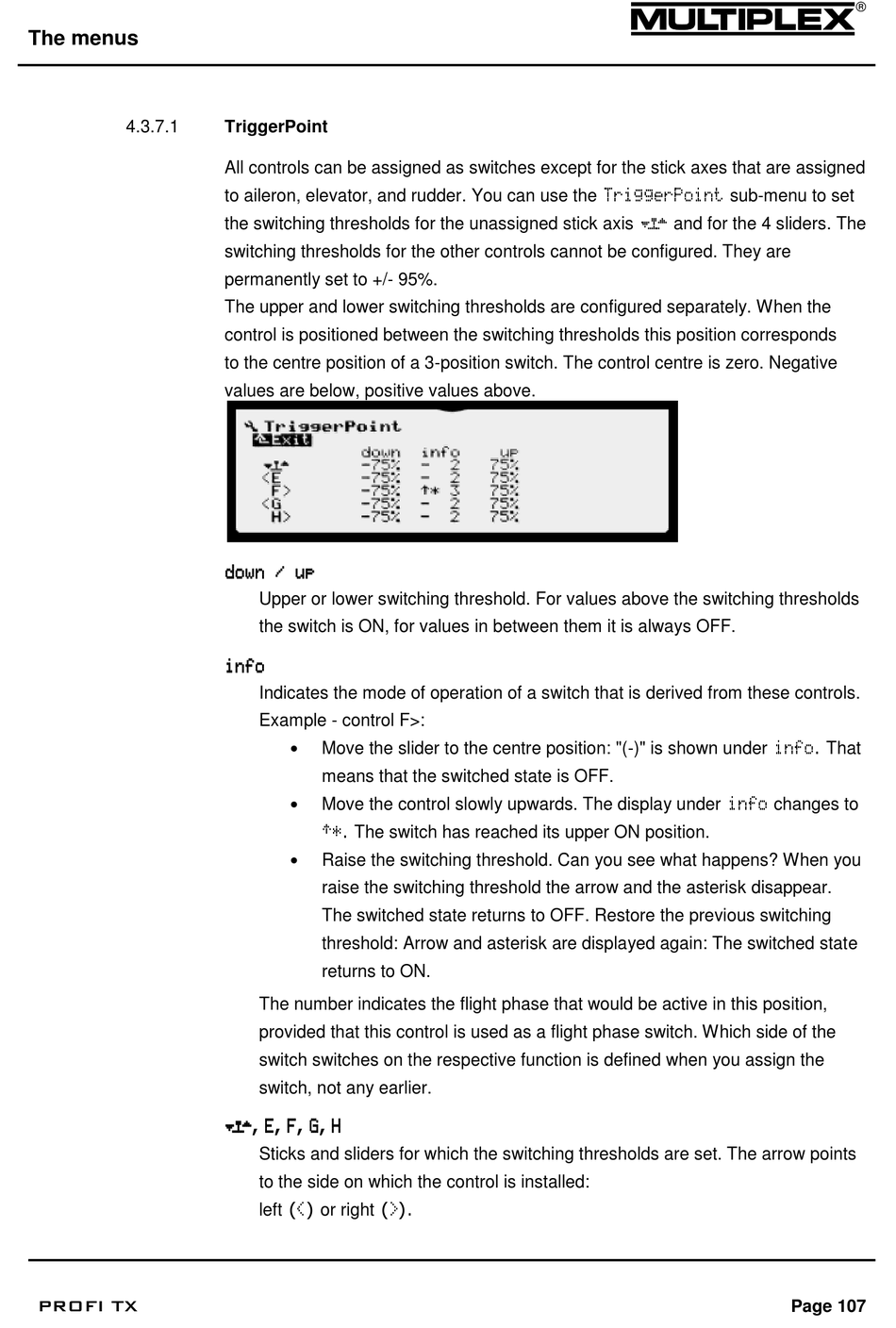

The menus
4.3.7.1
PROFI TX

TriggerPoint

All controls can be assigned as switches except for the stick axes that are assigned
to aileron, elevator, and rudder. You can use the TriggerPoint sub-menu to set
the switching thresholds for the unassigned stick axis ‡ and for the 4 sliders. The
switching thresholds for the other controls cannot be configured. They are
permanently set to +/- 95%.
The upper and lower switching thresholds are configured separately. When the
control is positioned between the switching thresholds this position corresponds
to the centre position of a 3-position switch. The control centre is zero. Negative
values are below, positive values above.
down / up
Upper or lower switching threshold. For values above the switching thresholds
the switch is ON, for values in between them it is always OFF.
info
Indicates the mode of operation of a switch that is derived from these controls.
Example - control F>:

Move the slider to the centre position: "(-)" is shown under info. That
means that the switched state is OFF.

Move the control slowly upwards. The display under info changes to
'*. The switch has reached its upper ON position.

Raise the switching threshold. Can you see what happens? When you
raise the switching threshold the arrow and the asterisk disappear.
The switched state returns to OFF. Restore the previous switching
threshold: Arrow and asterisk are displayed again: The switched state
returns to ON.
The number indicates the flight phase that would be active in this position,
provided that this control is used as a flight phase switch. Which side of the
switch switches on the respective function is defined when you assign the
switch, not any earlier.
‡, E, F, G, H
Sticks and sliders for which the switching thresholds are set. The arrow points
to the side on which the control is installed:
left (<) or right (>).
Page 107
