Helimech. Model Template - Multiplex Profi TX Operating Instructions Manual

Model templates
3.2.5

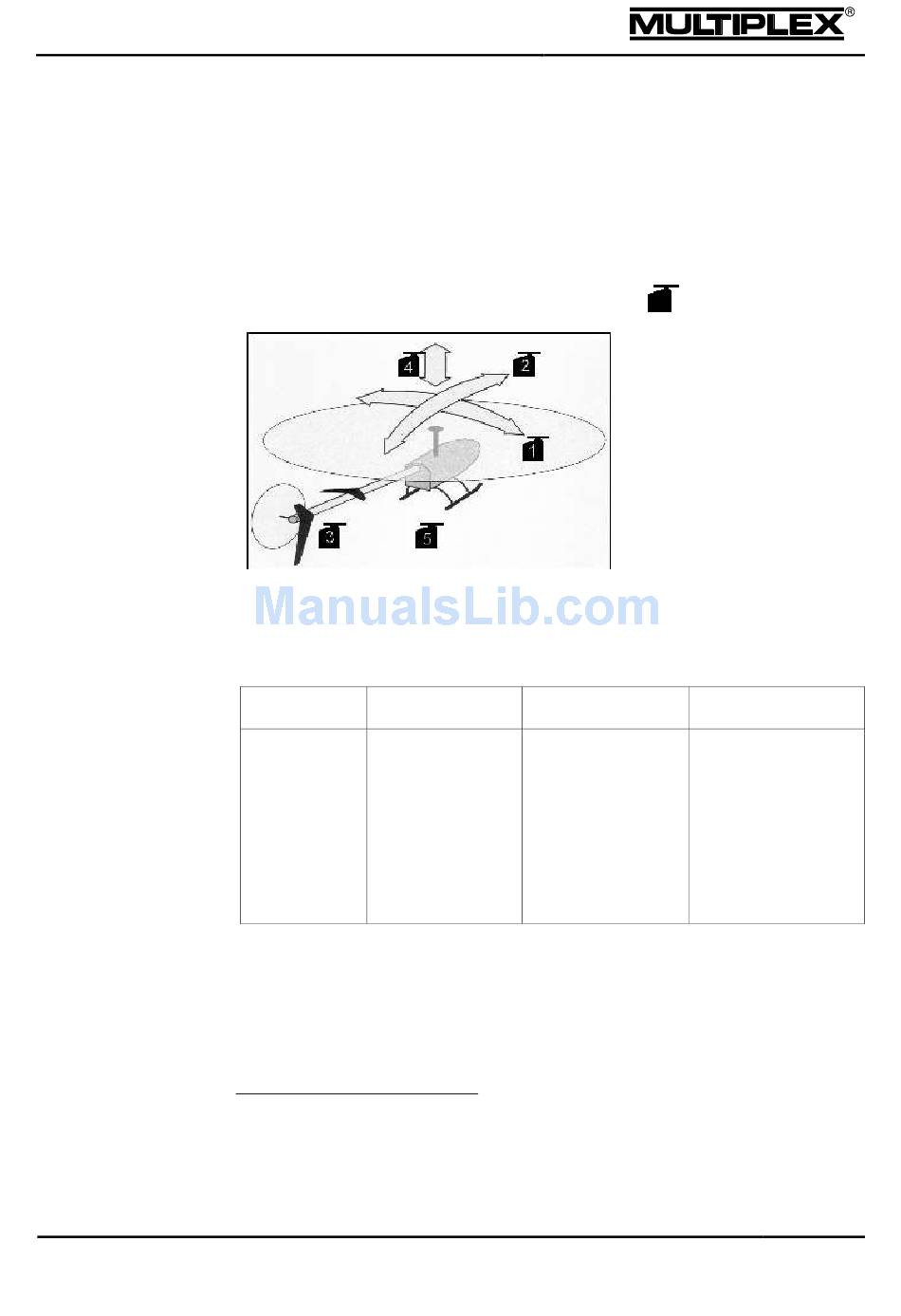

Figure 16:
PROFI TX

HELImech. model template

This template has been optimised for collective pitch-controlled I.C. helicopters with
mechanically mixed main rotor.
Governor mode is switched off in the throttle channel. The Switch-3 control
function was replaced by Mixture for mixture configuration.
HELImech. servo assignment
Mixer
Name Mixer inputs
TAIL ROTOR Aileron
To convert the configured helicopter to electronic mixing, you just need to rename
the Aileron, Elevator, and Collective servos to MAINROTOR-L,
MAINROTOR-R, etc. in the Servo > Assign menu. The main rotor mixer is then
available in the Mixer menu.
1
"Collective" and "Offset" are switched off automatically if the gyro operates in
Heading mode.
Settings
1
, Collective Offset
Coll.+
Coll.-
Origin
Rudd.Diff.
Function
Aileron
1
Elevator
2
Rudder
3
Collective
4
Throttle
5
Value
OFF
OFF
OFF
0%
OFF
