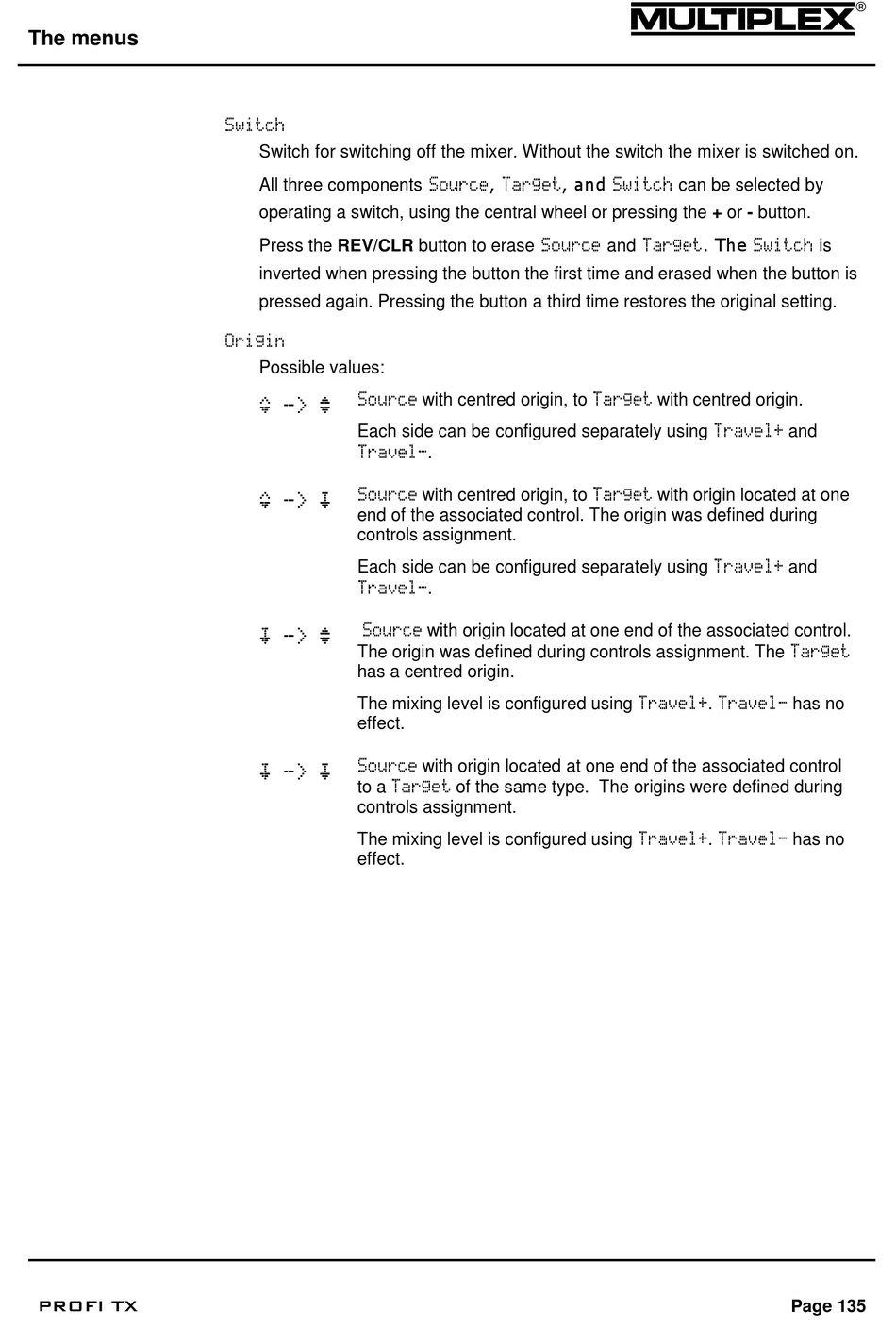

The menus
PROFI TX
Switch
Switch for switching off the mixer. Without the switch the mixer is switched on.
All three components Source, Target, and Switch can be selected by
operating a switch, using the central wheel or pressing the + or - button.
Press the REV/CLR button to erase Source and Target. The Switch is
inverted when pressing the button the first time and erased when the button is
pressed again. Pressing the button a third time restores the original setting.
Origin
Possible values:
Source with centred origin, to Target with centred origin.
š -> ™
Each side can be configured separately using Travel+ and
Travel-.
Source with centred origin, to Target with origin located at one
š -> ›
end of the associated control. The origin was defined during
controls assignment.
Each side can be configured separately using Travel+ and
Travel-.
Source with origin located at one end of the associated control.
› -> ™
The origin was defined during controls assignment. The Target
has a centred origin.
The mixing level is configured using Travel+. Travel- has no
effect.
Source with origin located at one end of the associated control
› -> ›
to a Target of the same type. The origins were defined during
controls assignment.
The mixing level is configured using Travel+. Travel- has no
effect.
