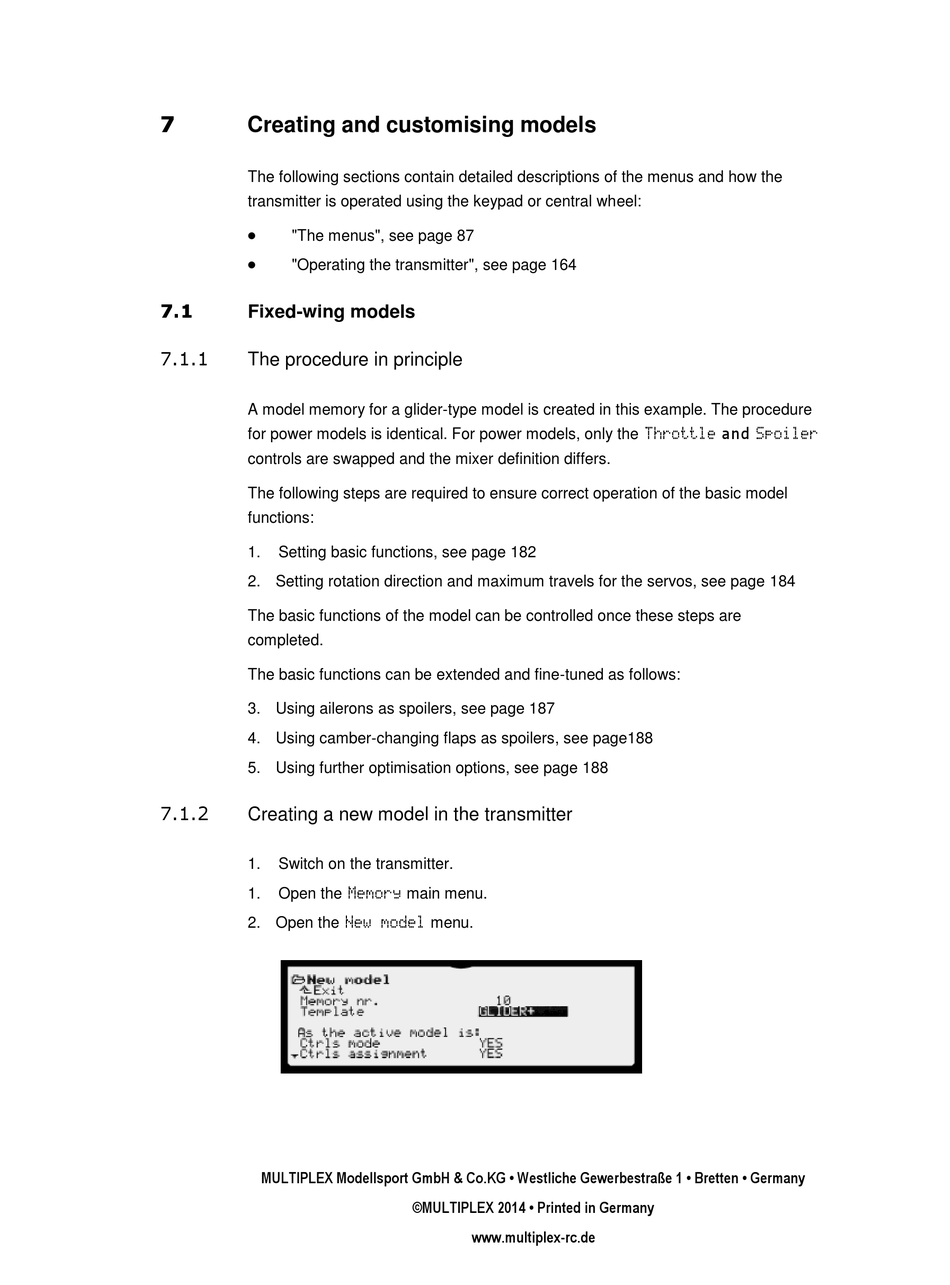

Creating and customising models

The following sections contain detailed descriptions of the menus and how the
transmitter is operated using the keypad or central wheel:

"The menus", see page 87

"Operating the transmitter", see page 164
7.1

Fixed-wing models

7.1.1

The procedure in principle

A model memory for a glider-type model is created in this example. The procedure
for power models is identical. For power models, only the Throttle and Spoiler
controls are swapped and the mixer definition differs.
The following steps are required to ensure correct operation of the basic model
functions:
1. Setting basic functions, see page 182
2. Setting rotation direction and maximum travels for the servos, see page 184
The basic functions of the model can be controlled once these steps are
completed.
The basic functions can be extended and fine-tuned as follows:
3. Using ailerons as spoilers, see page 187
4. Using camber-changing flaps as spoilers, see page188
5. Using further optimisation options, see page 188
7.1.2

Creating a new model in the transmitter

1. Switch on the transmitter.
Open the Memory main menu.
1.
2. Open the New model menu.
