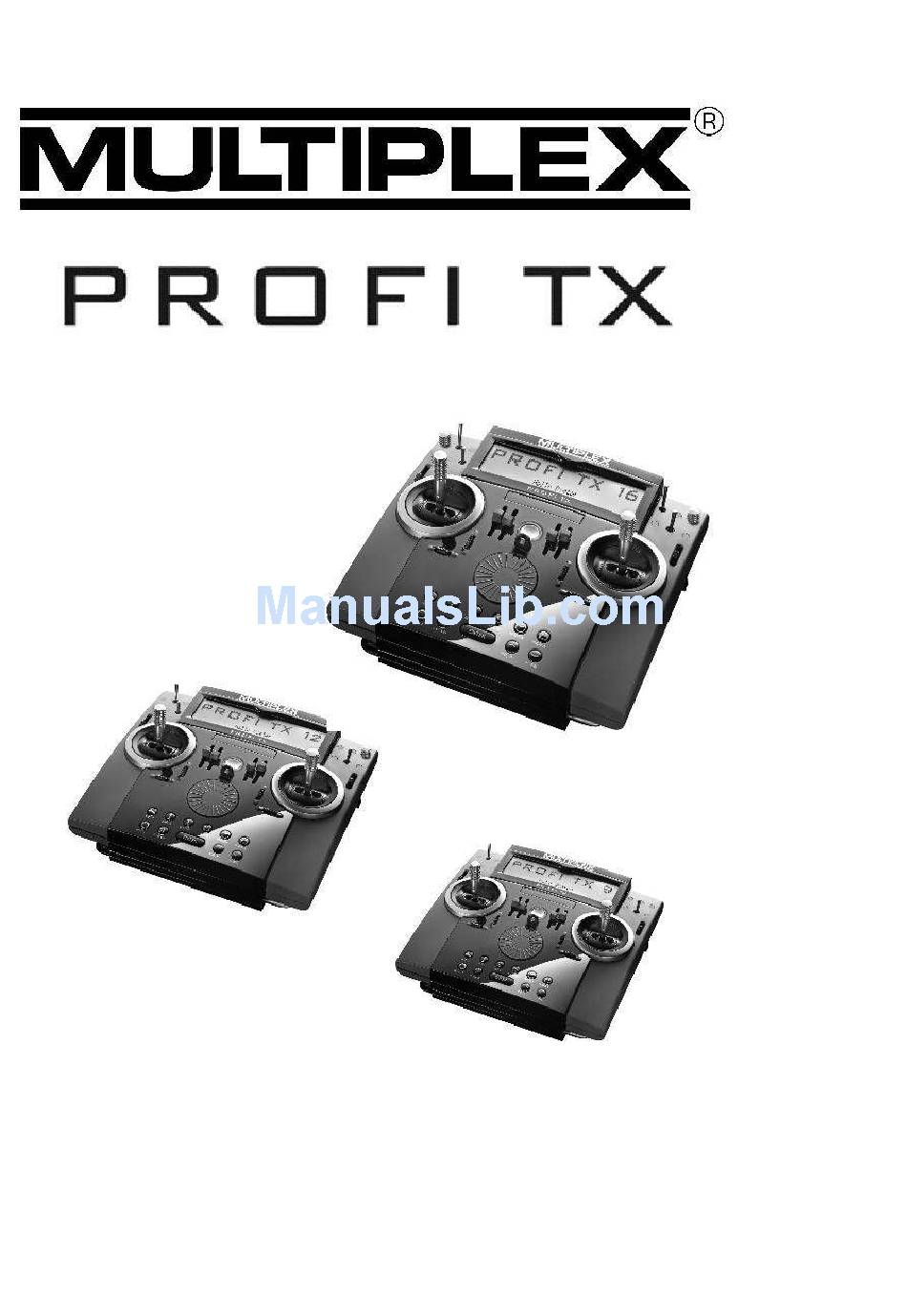

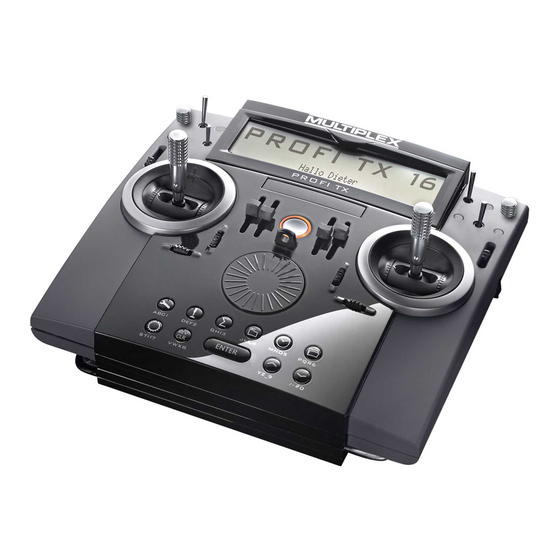

Operating Instructions

Version 2.11
MULTIPLEX Modellsport GmbH & Co.KG • Westliche Gewerbestraße 1 • Bretten • Germany
©MULTIPLEX 2014 • Printed in Germany
www.multiplex-rc.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Profi TX and is the answer not in the manual?

Questions and answers

Related Manuals for Multiplex Profi TX

Summary of Contents for Multiplex Profi TX

  • Page 1: Operating Instructions

    Operating Instructions Version 2.11 MULTIPLEX Modellsport GmbH & Co.KG • Westliche Gewerbestraße 1 • Bretten • Germany ©MULTIPLEX 2014 • Printed in Germany www.multiplex-rc.de...

  • Page 3: Table Of Contents

    The interior ............... 28 2.1.4 Connectors ............... 29 2.1.5 Initial setup ..............30 Mechanical operations on the transmitter ........31 MULTIPLEX Modellsport GmbH & Co.KG • Westliche Gewerbestraße 1 • Bretten • Germany ©MULTIPLEX 2014 • Printed in Germany www.multiplex-rc.de...
  • Page 4 Directory structure on the microSD card ......54 2.9.3.1 Model templates Templates for fixed-wing models ..........56 BASIC model template ..........58 3.1.1 ACRO model template ..........61 3.1.2 GLIDER+ model template..........64 3.1.3 DELTA WING model template ........67 3.1.4 PROFI TX Page 1...
  • Page 5 Teacher mode ............100 4.3.4.2 Sensors ..............102 4.3.5 Vario. & Altitude ............. 102 4.3.5.1 Announce & Alert ........... 103 4.3.5.2 Edit name ............104 4.3.5.3 Assign.Controls ............104 4.3.6 Assign.Switches ............106 4.3.7 TriggerPoint ............107 4.3.7.1 PROFI TX Page 2...
  • Page 6 Differnt.Ail ............133 4.5.1.2 Control mixers (Ctrl.Mix) ........... 134 4.5.1.3 Mixers on the servo side ........... 136 4.5.1.4 Helicopter models ............138 4.5.2 TAIL ROTOR ............138 4.5.2.1 MAINROTOR ............139 4.5.2.2 Control mixers (Ctrl.Mix) ........... 144 4.5.2.3 PROFI TX Page 3...
  • Page 7 Setting a value ............169 5.3.2 Erasing the allocation ..........169 5.3.3 Assigning controls to control functions ........170 Assign.Controls ............170 5.4.1 Assign.Switches ............173 5.4.2 Operating the transmitter using the PC Connecting the transmitter ..........176 PROFI TX Page 4...
  • Page 8 Calibrating servos: setting centre and maximum travel ..196 7.2.5.2 Checking and adjusting the tail rotor ........ 199 7.2.6 7.2.6.1 Checking / changing the direction of servo rotation for the tail rotor ..............199 TAIL ROTOR mixer ..........199 7.2.6.2 PROFI TX Page 5...
  • Page 9 Announcing sensor values ..........209 Announcing altitude............210 Other announcements ............211 Teacher / student ............211 8.8.1 Safety check ............211 8.8.2 Maintenance and care Appendix Specifications ..............212 10.1 Accessories ..............213 10.2 Glossary of technical terms Index PROFI TX Page 6...

  • Page 10: Introduction

    Introduction We are pleased that you have decided to purchase the PROFI TX radio control system. The new PROFI TX tray-type transmitter offers numerous innovative and pioneering features:  Integrated aerial technology (IOAT)  Secure, ultra-fast signal transmission  Clean, clearly arranged menu structure ...
  • Page 11  2 timers for model and transmitter operating time.  Convenient model memory management Free-text model names, up to 18 characters Copy and erase functions Model templates for creating new models. Differences between transmitter versions PROFI TX Page 8...

  • Page 12: V2 Software

    Introduction PROFI TX PROFI TX PROFI TX Channels Model memories Other Volume control using mixers V2 software 1.2.1 Update from V1 to V2 Additional files must be installed when updating from software version 1 to version 2. Refer to section 6.3 "Software update" on page 178 for details.

  • Page 13: Volume

     The timers can be renamed as desired. Contact Should you still have any questions regarding your PROFI TX, please feel free to contact your specialist dealer who will be happy to assist you. Service partners The addresses of our service partners are available on our website: www.multiplex-rc.de...

  • Page 14: About These Operating Instructions

    These operating instructions describe the PROFI TX tray-type transmitter and contain the following sections:  Section 1 "Introduction" provides an overview of the PROFI TX concept and information regarding the current firmware version.  Section "Safety instructions" contains important information concerning safety, intended use and warranty.
  • Page 15 CAUTION identifies a possible dangerous situation with a low risk that might result in minor or moderate personal injury if not avoided. NOTICE indicates the possibility of misuse which could cause damage to the product. INFORMATION that is important for the PROFI TX operator. PROFI TX Page 12...

  • Page 16: Basic Safety Instructions

    First identify the error and troubleshoot it. In particular, have the radio control transmitter and the receiver inspected at an authorised MULTIPLEX Service Centre (see section 10.1 "Specifications" on page 212) at regular intervals (every 2 to 3 years).
  • Page 17 (up to a few days). Thereafter, perform a careful functional test. In case of major condensation, have the device inspected at an authorised MULTIPLEX Service Centre (see section "1.2" on page 9).

  • Page 18: Safety Instructions For The Transmitter Battery

    Observe of the permissible temperature range for the battery. Mishandling the battery incurs the risk of combustion, explosion, chemical burns and fire. PROFI TX Page 15...

  • Page 19: Esd Notes For Electronic Sub-Assemblies

    Once removed from the basic device, the sub-assembly should only be stored in the conductive anti-static bag in which it was delivered. Never allow the sub-assembly to make direct contact with a conventional, non-ESD compatible container made of foam, Styrofoam or other plastic. PROFI TX Page 16...

  • Page 20: Intended Use

    Introduction Intended use The PROFI TX transmitter is intended exclusively for operation of models by radio control. Always follow the switching on/off sequence in order to avoid any uncontrolled, dangerous startup of the power system: Switching on sequence using the BEC: 1.
  • Page 21 Take care to maintain sufficient distance between cables carrying heavy currents (e.g. electric power system) and the RC system. Especially the cables between brushless electric motors and their actuators must be kept as short as possible (guide value: max. 10 to 15 cm). PROFI TX Page 18...
  • Page 22 Do not carry out any high-risk flying or driving manoeuvres.  Know your limits: do not over-estimate your abilities and skills.  If you detect any sign of a problem or interference, land or cease operations immediately. PROFI TX Page 19...

  • Page 23: Liability And Indemnification

    MULTIPLEX goods that were directly affected by whatever incident gave rise to the damage. This does not apply if MULTIPLEX is obliged to accept unlimited liability in accordance with mandatory law for deliberate or gross negligence.

  • Page 24: Warranty

    Observe the information leaflets included in the relevant transmitter documentation! 1.11 EC declaration of conformity The PROFI TX devices were assessed in accordance with the relevant harmonised European directives. You are therefore the owner of a product whose design fulfils the protective aims of the European Community relating to the safe operation of equipment.

  • Page 25: Disposal

    Recycling of rechargeable batteries Do not dispose of depleted rechargeable batteries in household waste. Take them to a suitable recycling system. Rechargeable batteries must be discharged and short-circuit safe. Tape over the terminals with non-conducting adhesive tape. PROFI TX Page 22...

  • Page 26: Transmitter

    114), and the screen can be raised as required. Warning lights for the sensors used on the model. The warning lights indicate whether the alarm values for certain sensor groups have been exceeded (see section "Warning lights" on page 25). PROFI TX Page 23...
  • Page 27 Flashing orange light: A binding procedure is in progress (see page 47).  Solid light: A PC is or was connected. No RF is generated. Yellow: Battery charging is in progress. Red: The battery is not charged. PROFI TX Page 24...
  • Page 28 The following warning lights are assigned to the sensors:  Battery icon: voltage sensors  Thermometer: temperature sensors  Petrol pump: level and battery charge sensors  IC icon: ECU (Engine Control Unit)  Warning sign: speed and current sensors PROFI TX Page 25...

  • Page 29: Underside View

    Underside view of the transmitter Recessed control for the sliding latch for USB sockets (see section 2.1.5 "Connectors" on page 29) Fasteners for opening the case (see section 2.3.1 "Opening and closing the case" on page 31) Carry bars PROFI TX Page 26...

  • Page 30: Carry Handle / Bars

    Only in this position of the drawer (figure) are the carry bars unlocked. In all other positions, the carry bars cannot and must not be swivelled out. Using force will damage the swivel mechanism! PROFI TX Page 27...

  • Page 31: The Interior

    4 slots for additional modules (see section "Installing additional modules" on page 39) 2 clamp terminals for connecting the controls installable on the stick tops (see section "Installing stick tops with a switch or button" on page 35) TORX screwdriver PROFI TX Page 28...

  • Page 32: Connectors

    Headset connector (stereo jack); when a headset is connected, the loudspeaker of the PROFI TX is switched off Mini USB socket for connecting the PROFI TX to a PC and for charging the battery via the charging socket (see section 2.4.1 "Charging the battery" on...

  • Page 33: Initial Setup

    Transmitter Initial setup The following steps should be performed during initial setup of your PROFI TX. Refer to the relevant sections listed below for a detailed description. Briefly charge the battery. It is sufficient to charge the battery for one hour on the PC (500mA) or for 20 minutes via the plug-in charger (1.5A): Refer to section 2.4...

  • Page 34: Mechanical Operations On The Transmitter

    3. Place the transmitter upside down on a soft surface. 4. Press and hold the two fasteners on the side of the screen and gently lift the back case cover. 5. Release the fasteners, flip up the back case cover and remove it. PROFI TX Page 31...
  • Page 35 8. Move the controls on the side to the centre position. 9. Place the lower edge of the back case cover vertically onto the case. 10. Swivel the back case cover to the front, push down and press gently to snap it into place. PROFI TX Page 32...

  • Page 36: Adjusting Stick Units

    Swivelling stick units The "natural working axis" of your hands is at a more or less pronounced angle. The stick units of the PROFI TX can be swivelled to perfectly suit your ergonomic preferences. The swivelling range is approx. 15°.

  • Page 37: Adjusting Ratchet, Friction And Centring Force

    Adjuster screws on the stick Ratchet and friction The PROFI TX is supplied as standard with self-centring sticks. The springs for use with a ratchet or friction system are already fitted to both stick units, and can be activated quickly and easily.

  • Page 38: Installing Stick Tops With A Switch Or Button

    6. Slide the stick top onto the stick shaft, simultaneously pulling the flexible wire completely through. 7. Tighten the grub screw on the stick top. 8. You can see one three-pin terminal clamp next to every After re-inserting the battery, date and time need to be set again. PROFI TX Page 35...

  • Page 39: Installing Additional Controls

    Item No. 85942 2.3.4 Installing additional controls You can install 8 controls on each side of the PROFI TX (see section 2.1 "Transmitter overview" on page 23).  The 7 controls can be buttons, 2- or 3-position dip-switches, or rotary potentiometers in any arrangement.
  • Page 40 Replace the circuit boards and secure them using the screws. Replace the cover over the headset socket and make sure that the clips snap into place. Refit the connectors of the controls. Close the cap on the slots. Insert the battery and close the transmitter. PROFI TX Page 37...
  • Page 41 Date and time have to be set again in the Timer menu, as the battery was removed. Additional controls The following additional controls can be installed in the PROFI TX (see also section 10.2 "Accessories" on page 213):  2-position switch (micro), short Item No.

  • Page 42: Installing Additional Modules

    Transmitter 2.3.5 Installing additional modules You can add four modules to the PROFI TX. Never install two identical modules! When these operating instructions were released for print, only the COPILOT module (item no. 45184) was available (see section 10.2 "Accessories" on page 213).

  • Page 43: Transmitter Battery

    2.4.1 Charging the battery The PROFI TX features two USB sockets at the front on the right-hand side of the case, which are protected by a sliding latch. The mini USB socket is used for charging (see section 2.1.5 "Connectors" on page 29).

  • Page 44: Charging Via The Pc

    The PROFI TX starts automatically in charging mode. The figure below is shown on the screen. Maximum current: 500mA. The PROFI TX logs into the PC as mass storage with the name "PROFI TX". Upon first time use, the PC automatically installs device drivers. Do not switch off the PC and/or the transmitter and do not disconnect the USB cable while the installation is in progress.

  • Page 45: Charging The Battery Using The Plug-In Charger

    2. Slide the sliding latch towards the device centre. 3. Connect the supplied USB cable to the plug-in charger and to the mini USB socket on the PROFI TX. 4. Connect the plug-in charger to a mains outlet. The plug-in charger icon is shown on the right side of the screen and the state of charge and the charging current are displayed on the left.

  • Page 46: Battery Management

    Transmitter 2.4.4 Battery management The PROFI TX records the current during transmitter operation and while charging the transmitter battery. The available battery charge is calculated on the basis of the power meter reading, the temperature and the voltage. The remaining operating time (time to empty) is calculated from charge and current and is shown on status display #2 (see page 88).

  • Page 47: Switching The Transmitter On / Off

    Transmitter Switching the transmitter on / off Charge the transmitter battery! The PROFI TX is supplied with a partially charged transmitter battery. You should charge the battery prior to setup. Please observe the notes on charging (see section 2.4 "...

  • Page 48: Switching Off

    (see section 2.6 "Range check" on page 46). Switching on for the first time The very first time you switch on the PROFI TX is a special case. A language selection menu is shown on the screen after startup. Here, you select the language for: 1.

  • Page 49: Range Check

    A second person must always be present for the range check to secure and observe the model. Large metal objects within or in close proximity to the checking range (wire fences, cars) affect the result of the range check. PROFI TX Page 46...
  • Page 50 The binding procedure binds the receiver with the transmitter. M-LINK uses "frequency hopping" and "spread spectrum". No fixed transmission channel is used for "frequency hopping", but all 39 channels are used in a sequence that is defined by the transmitter. PROFI TX Page 47...
  • Page 51 The previous condition is restored. 2. Now, switch on the receiver while pressing and holding the Set button (connect the power supply). The receiver LED is flashing rapidly. 3. The binding procedure is completed within a few seconds: PROFI TX Page 48...

  • Page 52: Trainer Mode

    The annular light of the Power button is flashing in orange. transferred. The PROFI TX can be configured either as a teacher transmitter or as a student transmitter. The teacher and student transmitters are inter-connected using a second M-LINK radio link.

  • Page 53: Digital Trim

    Example The model aircraft should fly straight and level when you leave the sticks exactly at centre. If this is not the case, the neutral point of the causal control function should be corrected / trimmed. PROFI TX Page 50...

  • Page 54: Trim Buttons

    2.8.2 Trim buttons On the PROFI TX, trimming is carried out using the trim buttons arranged below and to the side of each stick unit (see section 2.1.1 " Top view" on page 23). Every time you press a button the associated control axis is trimmed in the direction in which the pressure is applied to the button.
  • Page 55 This means if you alter the trim increment size, you must remember to re-trim the model. The design of the graphic trim display can be selected (Setup > Transmitter > Screen, Trim graph parameter, see section 4.3.9 "Transmitter" on page 114). PROFI TX Page 52...

  • Page 56: Microsd Card

    FAT; allocation unit size: 32 kilobytes; quick format Click "Start".  Rename the card to "PROFI TX": Right-click the new drive to open the context menu. Select "Properties". Enter the text "PROFI TX" in the input field. PROFI TX Page 53...

  • Page 57: Directory Structure On The Microsd Card

    Transmitter Click "OK".  Now, copy the directory structure to the PROFI TX that is described below. A zip file containing this directory structure is available in the Downloads section of our home page. 2.9.3.1 Directory structure on the microSD card...

  • Page 58: Model Templates

    TRACKED V., see page 84 Switch assignment In the PROFI TX, all the switches can be installed and connected as needed. For this reason, switched functions that are usually assigned to dip-switches or buttons cannot be pre-set in the model templates. You have to configure these assignments yourself according to the existing switches.

  • Page 59: Templates For Fixed-Wing Models

    Step size 1.5% Expo 100% Travel 100% Trim Rudder [Mode] Step size 1.5% Expo 100% Travel 100% Trim Throttle BASIC, ACRO, DELTA WING, BIG SCALE: Step size 1.5% stick Mode HALF GLIDER+: <E Expo Slow 0.0s PROFI TX Seite 56...
  • Page 60 Wheel Brake Gyro Type of Gyro Heading Damping/Headin Control Suppression Mixture Aux-1 Slow 0.0s Fixed value Aux-2 Slow 0.0s Fixed value Aux-3 Slow 0.0s Fixed value Aux-4 Slow 0.0s Fixed value = 4 flight phases Camber-changing flap PROFI TX Seite 57...

  • Page 61: Basic Model Template

    Pre-defined mixers on the control side, with 2 more that can be defined by the operator. Mixer inputs Options & settings Value Name Makes it easier to fly accurate turns: Ail <> rudder Ail < rudder Combi-Switch Optimises flying turns: Aileron Mode Differnt.Ail PROFI TX Seite 58...
  • Page 62 2 directions Throttle-T ›- Single-sided (untrimmed) travel, with deadband Spoiler œ Single-sided travel, with intermediate point For airbrake and aileron differential. Requires 2 AILERONS+ servos. Aileron ™ 2 Travels are 100% 100% AILERONS+ symmetrical PROFI TX Seite 59...
  • Page 63 Model templates Spoiler ›+ Single-sided travel, with offset PROFI TX Seite 60...

  • Page 64: Acro Model Template

    Combi-Switch Ail <> rudder Ail < rudder Differnt.Ail Aileron Mode +SPOILER Differnt.Ail Pre-defined mixers on the servo side Name Mixer inputs Options & settings Value (%) š Up and down ELEVATOR+ Elevator 100% 100% travels are asymmetrical PROFI TX Seite 61...
  • Page 65 2 directions ›- Single-sided Throttle-T (untrimmed) travel, with deadband œ Single-sided Landing flaps travel, with intermediate point œ Spoiler Single-sided travel, with intermediate point AILERONS+ Aileron ™+2 Travel is 100% 100% symmetrical, 2 directions, with offset PROFI TX Seite 62...
  • Page 66 FLAPS+ Single-sided 100% lift) travel, with offset š 2 Aileron Up and down travels are asymmetrical, 2 directions œ Spoiler (airbrake) Single-sided travel, with intermediate point š Elevator-T (snap Up and down flap) travels are asymmetrical PROFI TX Seite 63...

  • Page 67: Glider+ Model Template

    Options & settings Value Combi-Switch Ail <> rudder Ail < rudder Differnt.Ail Aileron Mode Differnt.Ail Pre-defined mixers on the servo side Name Mixer inputs Options & settings š ELEVATOR+ Elevator Up and down travels are asymmetrical PROFI TX Seite 64...
  • Page 68 š 2 Right and left Rudder travels are asymmetrical ›+ Single-sided Spoiler travel, with offset ›- Throttle-T Single-sided (untrimmed) travel, with deadband ™ AILERONS+ Aileron 2 Travel is symmetrical, 2 directions ›+ Spoiler Single-sided travel, with offset PROFI TX Seite 65...
  • Page 69 š FLAP_INNR+ Flap Up and down travels OFF OFF are asymmetrical FLAP_CNTR+ ›+ Single-sided travel, Spoiler OFF OFF with offset š 2 Aileron Up and down travels 50% 50% are asymmetrical For centre flap pairs. PROFI TX Seite 66...

  • Page 70: Delta Wing Model Template

    Mixer inputs Options & settings Value ™ 2 Up and down travels DELTA+ Aileron 70% 70% are symmetrical š Elevator Up and down travels 70% 70% are asymmetrical ›- Single-sided travel, Throttle-T OFF OFF with deadband PROFI TX Seite 67...
  • Page 71 Mixer inputs Options & settings Value š Up and down travels V-TAIL+ Elevator 70% 70% are asymmetrical š 2 Rudder Right and left travels 70% 70% are asymmetrical ›- Throttle-T Single-sided travel, OFF OFF with deadband PROFI TX Seite 68...

  • Page 72: Flying Wing Model Template

    FLYING WING servo assignment Pre-defined mixers on the control side, with 2 more that can be defined by the operator. Name Mixer inputs Options & settings Value Combi-Switch Ail <> rudder Ail < rudder Differnt.Ail Aileron Mode Differnt.Ail 100% PROFI TX Seite 69...
  • Page 73 Outboard flap (inboard) symmetrical pair š Up and down Elevator travels are asymmetrical š Flap Up and down travels are (camber-changing asymmetrical flaps) ›+ Spoiler Single-sided travel, with offset ›- Single-sided Throttle-T travel, with deadband PROFI TX Seite 70...

  • Page 74: Big Scale Model Template

    Pre-defined mixers on the servo side Name Mixer inputs Options & settings Value (%) ELEVATOR+ Elevator Up and down 100% 100% š travels are asymmetrical Spoiler Single-sided travel, œ with centre Flap Up and down š travels are asymmetrical PROFI TX Seite 71...
  • Page 75 100% ›+ (increase in lift) with offset Aileron Up and down š 2 travels are asymmetrical, 2 directions Spoiler (airbrake) Single-sided travel, œ with intermediate point Up and down Elevator-T (snap š travels are flap) asymmetrical PROFI TX Seite 72...

  • Page 76: Templates For Helicopter Models

    Step size 1.5% Mode HALF Expo Slow 0.0s Aux-1 Slow 0.0s Fixed value Aux-2 Slow 0.0s Fixed value Retract.Gear Slow 0.0s Fixed value Switch-1 Switch-2 Gyro <E Type of Gyro Heading Heading Control: <E Damping /Control Suppression PROFI TX Seite 73...
  • Page 77 Main rotor mixer Name Mixer inputs Settings Value TAIL ROTOR Rudder, Collective Offset Coll.+/- Coll. origin Rudd.Diff. MAINROTOR-R. Rudder, Elevator, Geometry Rotation 0° Collective Lever +/- MAINROTOR-L. Rudder, Elevator, Collective MAINROTOR-FB Rudder, Elevator, Collective MAINROTOR-4 Rudder, Elevator, Collective PROFI TX Seite 74...

  • Page 78: Funcopter Model Template

    This model template is suitable for throttle-controlled helicopters with electric motor. This template cannot be adapted to the other helicopter templates as the collective pitch channel is not available. Servo assignment Servo FUNCOPTER assignment Aileron Elevator Rudder Collective Throttle Gyro --------- (free) 7..16 PROFI TX Seite 75...

  • Page 79: Eheli Fbl Model Template

    Switch off this option if you prefer to work with throttle curves (see "Throttle (helicopter)", page 124). Servo assignment Servo FBL assignment Classic assignment with mixers (restore to flybars) Aileron MAINROTOR-FB Elevator MAINROTOR-L. Rudder TAIL ROTOR Collective MAINROTOR-R. Throttle Throttle Gyro Gyro --------- (free) 7..16 PROFI TX Seite 76...

  • Page 80: Eheliccpm Model Template

    MAINROTOR-R. Rudder, Elevator, Geometry 120% Collective Rotation 0° MAINROTOR-L. Rudder, Elevator, Collective Lever +/- MAINROTOR-FB Rudder, Elevator, Collective Rudder, Elevator, MAINROTOR-4 Collective = 4 flight phases; for helicopters, the fourth flight phase is always AUTOROT (auto-rotation). PROFI TX Seite 77...

  • Page 81: Heliccpm Model Template

    MAINROTOR-R. Rudder, Elevator, Collective Geometry 120% MAINROTOR-L. Rudder, Elevator, Collective Rotation 0° MAINROTOR-FB Rudder, Elevator, Collective Lever +/- MAINROTOR-4 Rudder, Elevator, Collective = 4 flight phases; in templates for helicopters, the fourth flight phase is always AUTOROT (auto-rotation). PROFI TX Seite 78...

  • Page 82: Helimech. Model Template

    Aileron, Elevator, and Collective servos to MAINROTOR-L, MAINROTOR-R, etc. in the Servo > Assign menu. The main rotor mixer is then available in the Mixer menu. "Collective" and "Offset" are switched off automatically if the gyro operates in Heading mode. PROFI TX Seite 79...

  • Page 83: Templates For Land- Or Water-Based Models And Tracked Vehicles

    Vertical stick axis. Gimbal v Trim Assignment by means 1.5% Step size of controls mode. Expo 100% 100% Travel Horizontal stick axis. Steering Trim Assignment by means 1.5% Step size of controls mode. Expo 100% 100% Travel PROFI TX Seite 80...
  • Page 84 Aux-1 Slow 0.0s Fixed value Aux-2 Slow 0.0s Fixed value Aux-3 Slow 0.0s Fixed value Aux-4 Slow 0.0s Fixed value = 4 flight phases Servo assignment Servo Control function / mixer Curve points Steering Throttle unused PROFI TX Seite 81...

  • Page 85: Ship / Boat Model Template

    Assignment by 1.5% Step size means of controls mode. Expo 100% 100% Travel Horizontal stick Rudder Trim axis. Assignment 1.5% Step size by means of controls mode. Expo 100% 100% Travel Throttle ¢ Trim 1.5% Step size PROFI TX Seite 82...
  • Page 86 Fixed value Aux-1 Slow 0.0s Fixed value Aux-2 Slow 0.0s Fixed value Aux-3 Slow 0.0s Fixed value = 4 flight phases Servo assignment Servo Control function / mixer Curve points Rudder Throttle not assigned 3 - 16 PROFI TX Seite 83...

  • Page 87: Tracked V. Model Template

    Trim Assignment by 1.5% Step size means of controls Expo mode. 100% 100% Travel Throttle ¢ Trim 1.5% Step size CNTR Mode Expo 0.0s Slow Weapon sel. Slow 0.0s Fixed value Gear Slow 0.0s Fixed value PROFI TX Seite 84...
  • Page 88 Turret turn Gun up/down Weapon sel. 6 - 16 unused Mixer Name Mixer inputs Options & settings Value ™-2 TRACK+ Steering Travel is symmetrical, 2 directions, with deadband š Throttle Forward and backward travels are asymmetrical PROFI TX Seite 85...
  • Page 89 MULTIPLEX Modellsport GmbH & Co.KG • Westliche Gewerbestraße 1 • Bretten • Germany ©MULTIPLEX 2014 • Printed in Germany www.multiplex-rc.de...

  • Page 90: The Menus

    The menus The menus The PROFI TX software is divided into status displays and menus that are structured in several levels. Status displays The 8 status displays provide information about transmitter, model and sensors. The status display is shown after transmitter startup or when exiting the main menus.

  • Page 91: Status Display #2

    Name of the model memory (inverted as heading)  Below the name: model memory number, uptime count for the model and the respective ID number, if an ID receiver is used.  Next to the name: icon for the type of model used PROFI TX Page 88...
  • Page 92 If the sensor clears the alarm the value stops flashing. The vibration alarm and warning light remain active until they are cleared by pressing the ENTER button. Notice: In other status displays the ENTER button has different functions. PROFI TX Page 89...
  • Page 93 The menus Trim display Trim settings for the 4 stick axes. The trim display can be customised in the Setup > Transmitter menu. PROFI TX Page 90...

  • Page 94: Status Display #3

    Values for the sensor addresses 0, 1, and 15 (see section 4.1.2 "Status display #2" on page 88) Trim display (see section 4.1.2 "Status display #2" on page 88). Pressing the REV/CLR button in status display #3 resets all timers. PROFI TX Page 91...

  • Page 95: Status Displays #4 To #8

    Name of the model memory, if no digi-adjuster is assigned. Trim display (see section 4.1.2 "Status display #2" on page 88). All minimum / maximum memories are erased when you press the REV/CLR button in the status displays #4 to #8. PROFI TX Page 92...

  • Page 96: Menu Structure

    The menus Menu structure The PROFI TX menus are structured in several levels:  Main menus The 6 main menus are opened via the 6 direct menu access buttons (see section 5.1.1 "Menu buttons" on page 164). The main menus only provide links leading to the menus themselves.

  • Page 97: Setup Main Menu

    Trigger points of the proportional controls MagicSwitch Logical combination of switches Assignments Which switch switches which function? Define mixer Transmitter Sounds Switching off specific sounds and announcements Miscellaneous Battery alarm, Contrast, etc. settings User data PIN, name of the owner, language PROFI TX Page 94...

  • Page 98: Volume

    Variometer tone: When the volume is switched on using a control, the altitude is announced once.  PROFI TX 16 only: Servo 16 can be used as volume actuator. Complex volume control scenarios can be implemented using mixers, e.g. the variometer tone can be muted when pushing/pulling and opening the throttle.

  • Page 99: M-Link

    If Failsafe positions were stored in the receiver, the servos return to these positions after 0.5 seconds. Use the respective PROFI TX controls to move the servos (control surfaces) of your model to the desired positions. Set the value to ON. After a few moments, it reverts to OFF.

  • Page 100: Flight Phases

    It is useful to have different settings and trims for specific flight phases when flying models. The flight phases technology in the PROFI TX provides an easy and convenient way to realize this. You can copy settings for one flight phase to another, disable flight phases if they are not needed, assign switches to flight phases, etc.
  • Page 101 The control commands by the pilot are not slowed down. Possible range: 0.1 to 6.0 seconds Pressing REV/CLR Disables or enables the selected flight phase. PROFI TX Page 98...

  • Page 102: Training (Principle)

    The teacher transmitter requires a receiving device for the student signal. On older transmitters with DIN socket, the trainer stick is the receiving device; the PROFI TX uses the COPILOT module. The trainer stick or the COPILOT module are bound in the same way to the student transmitter (binding procedure) as receivers.

  • Page 103: Teacher Mode

    After a few seconds, the display should change from seeking.. via OFF to Student. If this is not the case, hold the PROFI TX over the aerial of the student transmitter (the COPILOT module is positioned below).
  • Page 104 Teacher mode by switching on the transmitter and take control of your model. Besides, the power consumption of the COPILOT module reduces the operating time significantly. In Student mode, trim is switched off as long as the training system is switched on. PROFI TX Page 101...

  • Page 105: Sensors

    High tone; pitch and interval frequency increase proportionally with the climb rate. Descending Low tone (hum); From "0 m/s" to "Sink rate": pitch and interval frequency are proportional to the climb rate. Below sink rate: continuous low tone without interval. From "-3 m/s": no tone. PROFI TX Page 102...

  • Page 106: Announce & Alert

    Sensors that trigger alarms are always announced even if they are not activated. Break The break interval between two announcement sequences can be set to a value between 30s and 180s. Sensor 0 to sensor 15 Here, you activate the announcement for each sensor individually. PROFI TX Page 103...

  • Page 107: Edit Name

    You can customise the names of the control functions as needed for your model: Select a name or an empty line. Confirm your selection. The sub-menu is opened. Enter a name or edit the name as desired (see section 5.1.3 "Text input" on page 166). Confirm your input. PROFI TX Page 104...
  • Page 108 To set the actuation direction keep the control in the desired zero position and close the input field. Alternatively, you can invert or erase the input by pressing the REV/CLR button, if required. PROFI TX Page 105...

  • Page 109: Assign.switches

    MagicSwitch. Overview Assign.Switches TriggerPoint Upper / lower trigger points of the controls: ¢, E to H MagicSwitch 4 MagicSwitches 3x Dual-Rate Assignment list Combi-Switch Throttle-Cut 3x Timer Teacher Phases 1-3 Phase 4 Vibration (OFF) Altimeter PROFI TX Page 106...

  • Page 110: Triggerpoint

    ‡, E, F, G, H Sticks and sliders for which the switching thresholds are set. The arrow points to the side on which the control is installed: left (<) or right (>). PROFI TX Page 107...

  • Page 111: Magicswitch

    3. Set the switch to the ON position or select it using the REV/CLR button. 4. Close the input field. MS3 and MS4 were added in version 2. For reasons of backward compatibility, the additional MagicSwitches were added at the end of the list of switches. PROFI TX Page 108...

  • Page 112: Switch

    (FP1.. FP4) cannot be assigned by operating them. The wheel must be used to do so. 3. Set the switch to the ON position or select it using the REV/CLR button. 4. Close the input field. PROFI TX Page 109...

  • Page 113: Define Mixer

    You can enter a new name or edit the name as desired (see section 5.1.3 "Text input" on page 166). 4.3.8.2 Mixer inputs The name of the mixer is followed by eight numbered lines with three input fields each. PROFI TX Page 110...
  • Page 114 š Bilateral option: The neutral position of the control function is in the centre (aileron, elevator, rudder). The travels on both sides of the neutral position can be configured separately. PROFI TX Page 111...
  • Page 115 The offset is used to shift the neutral position of the mixer down. This option can be combined ™ › with Deadband option: Mixing does not start immediately at the neutral position, but after the control has passed the set deadband. PROFI TX Page 112...
  • Page 116 Single-sided, with additional set point at half travel Curve mixer: The mixer input passes through one of 8 Cu1 to Cu8 control curves. Curve mixer for surface pairs moving in opposite Cu1 2 to Cu8 2 directions. PROFI TX Page 113...

  • Page 117: Transmitter

    The announcement interval reduces with decreasing remaining operating time (time to empty). To save power, a shortened announcement is issued in the last minutes. Please note that several charge/discharge cycles are required before the remaining operating time (time to empty) can be determined accurately. PROFI TX Page 114...

  • Page 118: Contrast

    Optimise the contrast. Possible values: +8 to -8 Factory setting: 0 4.3.9.4 Trim graph Trim graph The 6 trim display designs. 4.3.9.5 Menu direction Direction of menu navigation (see section 5 "Operating the transmitter" on page 164). PROFI TX Page 115...

  • Page 119: User Data

    4.3.10.2 Language Used for changing menu language and speech output. The PROFI TX uses language pairs: always English and an alternative language (German, French). You can use the update function to change the language pair (see section 6.3 "Software update" on page 178).

  • Page 120: Name

    Any text, e.g. the name of your device; this text is shown in status display #1 in line 1 (see page 87). Max. length: 32 characters. Refer to section 5.1.3 "Text input" on page 166 for details. PROFI TX Page 117...

  • Page 121: Controlfunctions Main Menu

    Control functions that do not have configurable parameters are not shown (Wheel Brake, Mixture, Towing dog). Refer to section "Control functions of the model templates" on page 172 for a list of the control functions offered by the PROFI TX model templates. Overview of controls functions - fixed-wing models Aileron...
  • Page 122 Retract.Gear Aux-1 Aux-2 Slow, Fixed value Aux-3 Aux-4 Gyro Type of Gyro, Fixval. Sense , Suppression, controlled Axis = with flight phase switching Opening the menu To open the main menu: Button Fixed-wing models: Helicopter models: PROFI TX Page 119...
  • Page 123 The effect of all settings is visualized in the graph on the right side of the screen. The graph illustrates the behaviour of the control function. The dotted vertical line indicates the current position of the control. PROFI TX Page 120...

  • Page 124: Aileron, Elevator, Rudder

    You can use the Travel parameter to influence the control sensitivity of a control for specific flight phases. That means you can configure a separate value for each flight phase, e.g. in the flight phase NORMAL = 100% for PROFI TX Page 121...
  • Page 125 The effect of positive Expo values is that control surface travels are increased around the centre position. The end-travels remain unchanged when Expo is used. So, full travel is still available when required. PROFI TX Page 122...

  • Page 126: Throttle (Fixed-Wing Models, Vehicles, Boats, And Funcopters)

    Idle trim; the trim is effective for idle to full throttle. FULL Expo -100% to +100%, see page 122. Run-up Time Delay time: 0.0s to 6.0s As its name implies, the delay time is only effective when the throttle is opened. PROFI TX Page 123...

  • Page 127: Throttle (Helicopter)

    Exception: In the auto-rotation flight phase (AUTOROT) all curve points have the same values. Refer to section 4.4.3.1 "Throttle curves (Governor OFF)" on page 125 for a description of the throttle curves. Governor ON Throttle Fixed value, flight phase specific: 0.0% to 100.0% PROFI TX Page 124...

  • Page 128: Throttle Curves (Governor Off)

    Tip: Allocate a digi-adjuster to the curve point to be configured. Refer to page 168 in section "Digi-adjuster" for details. To assist configuration the current position of the collective pitch stick is displayed in the graph as a vertical dotted line. PROFI TX Page 125...
  • Page 129 A positive collective pitch (= climbing) requires the highest motor power (in the example: P7 = 85.5%). Example: throttle curve in the 3D flight phase Symmetrical V-shaped throttle curve for increased throttle when climbing in normal and inverted flight: PROFI TX Page 126...

  • Page 130: Spoiler, Flap, Retract.gear, Speed, Aux-1 To Aux-4

    Allows setting a control function to fixed positions that are specific to the flight phase. If OFF is selected, the function is controlled by the assigned control, provided an assignment exists. If this is not the case, refer to page 104. PROFI TX Page 127...

  • Page 131: Gyro

    Heading-hold gyro This gyro type dampens the rotational This gyro type supports two operating movement of a model around the axis to modes ("Mode"): "Damping" and which the stabilisation is applied. "Heading". You can switch between the PROFI TX Page 128...
  • Page 132 Setting range for heading-hold: -100% to -1% Setting range for damping: 0% to +100% Only the value of the activated flight phase can be displayed. When implementing changes make sure to activate the desired flight phase first. PROFI TX Page 129...
  • Page 133 If the rudder or tail rotor servo moves to an end-point, the gyro operates in Heading- hold mode. If this is not the case, the gyro operates in Damping mode: The rotation direction of the Gyro servo channel must be reversed! The respective procedure is described on page 146. PROFI TX Page 130...

  • Page 134: Collective (Only Helicopters)

    Here, you define the time needed for the throttle limiter to run up. Setting range: 0.0s to 6.0s PROFI TX Page 131...

  • Page 135: Mixer Main Menu

    4.5.1.1 Combi-Switch The Combi-Switch links aileron and rudder in a way that allows both of the control functions to be controlled by either of the functions. This makes it easier to fly accurate turns. PROFI TX Page 132...

  • Page 136: Differnt.ail

    The switch used and its respective switch position are displayed here. The switches are assigned in the Setup > Assign.Switches menu. 4.5.1.2 Differnt.Ail You use the Differnt.Ail menu to configure the aileron differential. Refer to section 7.1.3.1 "Configuring aileron differential" on page 184 for differential information. PROFI TX Page 133...

  • Page 137: Control Mixers (Ctrl.mix)

    Increment: 1% Setting range: -100% - OFF - +100% Source Control function to be mixed in. The mixer is added without any control settings (Expo, D/R, Travel, Trim). Target Control function to be mixed into the Source. PROFI TX Page 134...
  • Page 138 Source with origin located at one end of the associated control › -> › to a Target of the same type. The origins were defined during controls assignment. The mixing level is configured using Travel+. Travel- has no effect. PROFI TX Page 135...

  • Page 139: Mixers On The Servo Side

    Usually, this mixer should be switchable. As we do not know the type and location of the switches installed in your transmitter it is not possible to assign switches in the templates. However, PROFI TX Page 136...
  • Page 140 The menus you can assign switches in the Setup > Define mixer menu (see section 4.3.8 "Define mixer" on page 110). PROFI TX Page 137...

  • Page 141: Helicopter Models

    Servo > Assign menu (see section 4.6.2 "Assign" on page 149).  A 2-point calibration is sufficient for the TAIL ROTOR servo. Take care that the servo is not stalled (mechanically obstructed) at its end-points (P1, P5)! PROFI TX Page 138...

  • Page 142: Mainrotor

    You control the main rotor of your helicopter model with the MAINROTOR mixer. The PROFI TX features a universal swashplate mixer (CCPM) which can be used to control all types of swashplate fitted with 3 to 4 linkage points / servos.
  • Page 143 The angle must be entered with a negative prefix "-" if the MAINROTOR-FB servo is at the front when seen from the tail (see example 2). Example 1: 3-point 120º swashplate +120 Geometry +0 Rotation MAINROTOR-R. MAINROTOR- 120 Flight direction MAINROTOR-FB PROFI TX Page 140...
  • Page 144 The model rolls (aileron movement) when an elevator control command is given, and vice versa.  For virtual rotation in the clockwise direction: set negative values  For virtual rotation in the anti-clockwise direction: set positive values PROFI TX Page 141...
  • Page 145 Distance for MAINROTOR-R. / MAINROTOR-L.: 50 mm (= 100%) The lever for the fore-and-aft linkage (MAINROTOR-FB) is 20% shorter than the levers for the two side-mounted linkages. So, you apply the following setting: Lever +/- -20%. PROFI TX Page 142...
  • Page 146 Then the front/back swashplate servo is controlled directly by the Elevator. Set Geometry to 90° in the MAINROTOR mixer. This means that the MAINROTOR-L. or MAINROTOR-R. servos are only controlled by the Aileron and Collective functions. PROFI TX Page 143...

  • Page 147: Control Mixers (Ctrl.mix)

    If they are assigned to a servo, these mixers can be configured in the Mixer menu according to the requirements of the particular model. Refer to page for instructions on how to configure mixers136 on the servo side. PROFI TX Page 144...

  • Page 148: Servo Main Menu

    The menus Servo main menu You can use this menu to configure, manage and monitor servos. Overview Opening the menu To open the main menu: Button PROFI TX Page 145...

  • Page 149: Calibrate

    The set trim value results in a parallel shift of the curve. The curve points are limited to +/- 110%. The shape of the curve remains unchanged until the limit is reached. The effect is the same as the standard trim procedure. PROFI TX Page 146...
  • Page 150 2. Select a calibration point (P1 to P5) and open the input field. 3. Press the allocation button for the digi-adjusters. The servo—and all the other servos to which the same control function or mixer is assigned—automatically assume the position corresponding to the PROFI TX Page 147...
  • Page 151 If you activate a value using the allocation button the vertical line jumps to the corresponding point and remains there until you press the allocation button again or operate the associated control. PROFI TX Page 148...

  • Page 152: Assign

    Assignment procedure Select the servo. 2. Press the wheel or the ENTER button. 3. Select the function (control function or mixer). 4. Press the wheel or the ENTER button. 5. Select the number of calibration points. PROFI TX Page 149...

  • Page 153: Monitor

    Press the + / – buttons or use the central wheel to toggle between the two screen types. The figure shows the servo monitor for the PROFI TX 16. The display varies according to the number of available servo channels.

  • Page 154: Test Run

    Open the ControlFunction selection and press the REV/CLR button: The control function is shown crossed out.  Open the ControlFunction selection and select a different control function: The control function is shown crossed out.  Open Slow and set it to OFF. PROFI TX Page 151...

  • Page 155: Timer Main Menu

    The menus Timer main menu You can use this menu to set the current time and manage the PROFI TX timers. Overview Model uptime count Model Timer 1 Three freely configurable timers. Operating modes: frame, sum, interval. Timer 2 Options: Up, Count down, Save value, Announce.

  • Page 156: Model Uptime Count

    You can select operating mode, counting mode (Up or Count down), etc. as required. Each timer has time markers at 5-4-3-2-1 minute(s) and 30-20-15-10-5-0 seconds. Mode Select the operating mode for the timer: frame, sum, or interval PROFI TX Page 153...
  • Page 157 When Count down is activated, the timer starts at the specified alarm time, counts down to zero and then up again. The alarm is issued when zero is reached. Otherwise, the timer starts at zero and counts up. Save value PROFI TX Page 154...

  • Page 158: Set Alarm Clock

    4.7.3 Set Alarm Clock The clock in the PROFI TX (see section 4.7.4 "Date & Time" on page 156) has an alarm clock function. When the set alarm clock time is reached, the alarm clock rings in brief intervals for 10 minutes and the time is announced.

  • Page 159: Date & Time

    4.7.4 Date & Time The PROFI TX features a clock with calendar that continues to run when the device is switched off. The clock (RTC) is used for the alarm clock function and for the file system on the SD card. The clock must be reset after removing the battery.

  • Page 160: Memory Main Menu

    The menus Memory main menu You can use this menu to manage the model memories in your PROFI TX. Overview Here, you switch between model memories. Select Copy the model memory. Copy Create a new model memory. New model Edit name Edit the name of the current model memory.

  • Page 161: Select

    You can copy the model memory to a different memory cell in this menu. The menu shows a list of all the available model memories. The current memory is bolded. Select a model memory. 2. Confirm your selection by pressing the wheel or the ENTER button. PROFI TX Page 158...

  • Page 162: New Model

    It is not possible to choose at will. You can copy the model to a different memory cell later (see section 4.8.2 "Copy" on page 158). If all the memories are in use, the following information is displayed on screen: Memory nr.-1 PROFI TX Page 159...
  • Page 163 The scrollable field shows a list of all the model templates available in the PROFI TX (see section 3 "Model templates" on page 55). As the active model Here, you specify the setting areas to be inherited from the current model.

  • Page 164: Edit Name

    If you decide that you do not wish to create a model template, close the input screen using ¨Exit. 4.8.4 Edit name You can use the Edit name menu to change the name of the currently selected model. The name can have up to 18 characters. PROFI TX Page 161...

  • Page 165: Erase

    The safety check allows you to check the position of all the controls before establishing a wireless connection. Pay special attention to the control for throttle and landing gear. Refer to page 44 for more details. PROFI TX Page 162...

  • Page 166: Error Messages

    The menus Error messages The PROFI TX checks the condition of the current memory when it is switched on or the model memory is switched. If it detects a problem, the following error message appears: If this error message is displayed, proceed as follows: ...

  • Page 167: Operating The Transmitter

    Operating the transmitter Operating the transmitter The PROFI TX is operated using the keypad and the central wheel. Operation using the keypad Figure 17: Keypad 5.1.1 Menu buttons The keypad is arranged in two rows. The upper row provides quick and direct access to the 6 main menus.

  • Page 168: Buttons For Special Functions

    Every time you press the button the cursor is moved to the previous menu item.  In a scrollable field: Every time you press the button the value or the content of the scrollable field is reduced. PROFI TX Page 165...

  • Page 169: Text Input

    Press the REV/CLR button for "Yes". Press the ENTER button for "No". The prompt is not displayed if the input cursor is positioned on the first character. PROFI TX Page 166...

  • Page 170: Operation Using The Wheel

    Press the wheel to open / close an input field or to trigger a function. Pressing the wheel has the same effect as pressing the ENTER button (see section 5.1.2 "Buttons for special functions" on page 165). PROFI TX Page 167...

  • Page 171: Digi-Adjuster

    3. Turn the desired digi-adjuster. The ƒ icon disappears. If you change your mind and decide not to allocate a digi-adjuster, simply close the input field. The allocation icon disappears and the value is displayed again. PROFI TX Page 168...

  • Page 172: Setting A Value

    Press the allocation button to open the padlock icon. Press and hold the REV/CLR button and turn the digi-adjuster for which you wish to erase the allocation. Allocations can only be erased in status display #2 (see page 88). PROFI TX Page 169...

  • Page 173: Assigning Controls To Control Functions

    172). One vertical axis always remains unassigned and can be assigned using the list (¢ icon). This is typically used for "Throttle" or "Spoiler" in glider- type models. You can use this menu to customise the controls assignment according to your needs. PROFI TX Page 170...
  • Page 174 Alternatively, you can invert, erase or reset the control by pressing the REV/CLR button, if required. You can freely assign 21 physical and 6 logical controls to the following control functions: Icon Control ‡ Free stick that is not assigned to "Aileron", "Rudder" or "Elevator". PROFI TX Page 171...
  • Page 175 Fp1, Fp2, Fp3, Fp4 Flight phases (logical controls) Control functions of the model templates The following control functions are defined in the PROFI TX model templates. The control functions 1 to 3 are assigned using the controls mode. Fixed-wing Vehicles...

  • Page 176: Assign.switches

    To assign a switch proceed as follows: Move the input cursor to the control function you wish to assign a switch to. Open the desired input field. 3. Assign the desired switch by operating it. PROFI TX Page 173...
  • Page 177 For transferring control functions to the student Phases 1-3 For switching between the flight phases. Phase 4 Switches from every other flight phase to phase 4 Vibration Switches the vibration alarm off Altimeter Switches the altitude announcement on PROFI TX Page 174...
  • Page 178 Operating the transmitter MagicSwitch The PROFI TX features 4 MagicSwitches. A MagicSwitch is a logical switch which can be assigned to a switched or control like a real control. It combines up to 4 switches (including other MagicSwitches and flight phases).

  • Page 179: Operating The Transmitter Using The Pc

    Operating the transmitter using the PC Operating the transmitter using the PC You can use the supplied USB cable to connect the PROFI TX to any PC or tablet featuring an operating system that supports USB mass storage and an USB port that is compliant with the USB standard (4.5-5.5V / 500mA).

  • Page 180: Editing Model Memories

    You can delete or archive the model data sets on the PC or edit the numbers to reorganise the memory. Do not change the file name format. The PROFI TX only recognises file names in this format: PTXxxx.MDL (where "xxx" represents the memory number with...

  • Page 181: Software Update

    "PROFI TX". Press and hold the power button until the annular ring is fully lit to switch to normal mode: The PROFI TX logs off from the PC as USB mass storage and logs in again as a game controller.

  • Page 182: Model Flying Simulator

    Operating the transmitter using the PC Model flying simulator You can use the PROFI TX to control a model flying simulator in two ways:  Via USB cable  Via M-LINK in conjunction with the MULTIFlight stick In both cases, you have the following options: ...

  • Page 183: Via Usb Cable

    6.5.1 Via USB cable If the PROFI TX transmitter is operating in normal mode and is connected to the PC via USB cable, it logs into the PC as a game controller. Upon first time use, Windows automatically installs the required drivers. This may take several minutes.

  • Page 184: Using The Multiflight Stick

    Mode to Student. The MULTIFlight simulator automatically recognises the MULTIFlight stick and PROFI TX. If you have questions regarding the use of PROFI TX with third-party simulators, please contact the manufacturer of the third-party simulator. PROFI TX Page 181...

  • Page 185: Creating And Customising Models

    Creating a new model in the transmitter Switch on the transmitter. Open the Memory main menu. 2. Open the New model menu. MULTIPLEX Modellsport GmbH & Co.KG • Westliche Gewerbestraße 1 • Bretten • Germany ©MULTIPLEX 2014 • Printed in Germany www.multiplex-rc.de...
  • Page 186 The arrow next to the control name (F>, <E, etc.) points in the direction of the zero position. 6. Connect the servos as shown in the following figure. Do not connect the electric motors yet!  Perform the binding procedure (see section "Binding" on page 47). PROFI TX Page 183...

  • Page 187: Adjusting Rotation Direction And Maximum Travels For The Servos / Control Surfaces

    The AILERONS+ mixer is defined as follows: Name of Mixer: AILERON+ Parts 1 Aileron 2 Spoiler 3 Flap 4 Elevator-T additional 5 ------- servos if required Figure 18: Principle of the AILERONS+ mixer Open the Servo > Calibrate > 1: AILERONS+ menu. PROFI TX Page 184...
  • Page 188 If the left aileron does not move up, reverse the servo using the REV/CLR button. 13. Move the aileron stick to the centre position. Move the control surface to the neutral position using the central wheel or the + / – buttons. PROFI TX Page 185...

  • Page 189: Adjusting Elevators

    The setting range is +/-10%. Offsets exceeding 5% should be corrected mechanically. 4. Correct the maximum servo travels using P1 and P5 (see section 7.1.3.2 "Adjusting control surface travel and maximum servo travel" on page 184). PROFI TX Page 186...

  • Page 190: Adjusting Rudders

    The control surfaces move in the correct direction.  Maximum travels and neutral positions are adjusted.  The ailerons move synchronously. 7.1.4 Using ailerons as spoilers To raise the ailerons as airbrakes (spoilers) proceed as follows: Open the Mixer > AILERONS+ menu. PROFI TX Page 187...

  • Page 191: Using Camber-Changing Flaps As Spoilers

    Increase the travels for Elevator in the mixers AILERONS+ and FLAPS+. You can configure the mixer input as switchable by assigning a switch to the Elevator mixer input in the SETUP > Define mixer > AILERONS+ menu PROFI TX Page 188...
  • Page 192 The virtual switch is ON when the associated flight phase is active.  Control functions: Further options—many of which are flight phase specific—are available in the ControlFunctions menu (see section 4.4 "ControlFunctions main menu" on page 118). PROFI TX Page 189...

  • Page 193: Helicopter Models

    Switch to a similar model in the Select menu. If no model is available yet or if the current model is quite similar to the new model, simply proceed with the next step. Open the New model menu in the Memory main menu. PROFI TX Page 190...
  • Page 194 The device stores your selection. In most cases, you just have to check the selection switches. Confirming settings 6. Confirm the setting with OK: The model memory is created and immediately activated. The display automatically switches to safety check and status display. PROFI TX Page 191...
  • Page 195 The servo assignments can be changed and amended as required (Servo > Assign menu). Controls assignment from the template Controls are assigned to control functions in the Setup > Assign.Controls menu: Function Control Collective is assigned to the same control Throttle ‡ as Throttle PROFI TX Page 192...

  • Page 196: Preparing Controls And Switches

    Checking / changing the minimum control positions for idle / collective pitch and throttle limiter In the templates for helicopters, minimum idle / collective pitch is set to "back" (# arrow next to the identifier). The minimum position for the throttle limiter is also set to "back". PROFI TX Page 193...

  • Page 197: Checking And Changing Servo Assignment

    Throttle and tail rotor have 2 curve points for a linear characteristic (only end-points must be set). Procedure Open the Servo main menu. 2. Open the Assign menu. In this menu, the assignments for all the receiver outputs can be changed as required. PROFI TX Page 194...

  • Page 198: Checking And Adjusting The Main Rotor

    7.2.5.1 Checking / changing direction of servo rotation on the main rotor The directions of travel for the servos must be checked and changed (if required) before centre and travel are set. PROFI TX Page 195...

  • Page 199: Calibrating Servos: Setting Centre And Maximum Travel

    Use the Servo > Calibrate menu (see page 146) to adjust the travels (P1 and P5) and the centres (P3) for all the servos so that the servos assume the correct idle position, move evenly across their range of travel, and reach the appropriate end-travels. PROFI TX Page 196...
  • Page 200 6. Use the wheel to set the servo to the desired centre. Any changes you make are immediately visible on the model itself. 7. If the centre is correct, confirm the change and exit the menu. 8. Select the next servo to be edited. PROFI TX Page 197...
  • Page 201 If required, servo travel can be increased to up to 110% on both sides. 6. Complete the calibration for P1. 7. Repeat the procedure for point P5, starting from step 4. 8. Exit the menu and set up the other servos accordingly. PROFI TX Page 198...

  • Page 202: Checking And Adjusting The Tail Rotor

    7.2.6.2 TAIL ROTOR mixer The TAIL ROTOR mixer of the PROFI TX conceals the function "static tail rotor compensation", which is also sometimes referred to as REVO-MIX (revolution mixer). The TAIL ROTOR mixer is always displayed in the Mixer main menu when you create a model based on the model templates HELImech.
  • Page 203 "Rudder" is usually weaker when the model is required to turn against the rotation direction of the main rotor. A separate value can be set for each flight phase. PROFI TX Page 200...

  • Page 204: Gyro

    Refer to section 4.4.5 "Gyro" on page 128 for more information.  Damping mode The gyro operates in Damping mode if sensitivity is set to positive values.  The gyro operates in Heading-hold mode if you set the sensitivity to a negative value.  Controls mode PROFI TX Page 201...

  • Page 205: Setting Gyro Suppression

    Suppression is only effective in the Damping gyro mode, regardless of the flight phase. Before flying a model, make sure that the gyro counteracts the rotational movement of the model in Damping mode. A gyro operating in the wrong direction renders will render it uncontrollably unstable! PROFI TX Page 202...

  • Page 206: Throttle

    The idle limit is switched off in the AUTOROT flight phase, even if flight phase specific trim was or is set to 0.0%. Sometimes, it can be useful to operate the throttle directly without any restrictions. To do so, assign a switch to the CS/DTC switched function as described on PROFI TX Page 203...

  • Page 207: Setting The Collective Pitch Curve

    In the "climb" area (stick centre to collective pitch maximum) only 70% of possible collective pitch travel is used. This also contributes to fine control during the hover. Example 2: collective pitch curve in the CRUISE flight phase PROFI TX Page 204...

  • Page 208: Working With Flight Phases

    Flight phase specific settings can only be configured for control functions and control mixers. The servo settings are identical in all the flight phases. 7.2.10.1 Defaults in the Flight phases menu Open the Setup main menu. 2. Open the Flight phases menu. PROFI TX Page 205...

  • Page 209: Assigning Switches For Flight Phases

    (announcement every minute, for as long as the switch remains in this position). The active flight phase—marked with an x—cannot be disabled. Open the Setup main menu. 2. Open the Flight phases menu. PROFI TX Page 206...

  • Page 210: Copying Flight Phases

    7.2.10.5 Changing flight phase names You can select any of the 13 pre-set names for the flight phases: NORMAL SPEED1 HOVER PROFI TX Page 207...

  • Page 211: Setting The Transition Time

    2. Open the Flight phases menu. 3. Select the Slow menu item. 4. Switch to the desired flight phase. 5. Press the + / – buttons or use the central wheel to set the transition time. 6. Confirm your settings. PROFI TX Page 208...

  • Page 212: Speech Output & Sounds

    Battery monitor You can use the Setup > Transmitter menu to set the time to empty value at which the remaining operating time of the PROFI TX will start to be announced. Refer to page 114 for details. Announcing trim You can have the device announce the trim position (increments) after trimming.

  • Page 213: Announcing Altitude

    (see section 4.3.1 "Volume" on page 95). When you mute the variometer volume and then turn it up again, the altitude is announced once. Refer to section 4.3.5.1 "Vario. & Altitude" on page 102 for more information. PROFI TX Page 210...

  • Page 214: Other Announcements

    The transmitter does not require any special maintenance or care. However, we strongly recommend that you have the transmitter checked by an authorised MULTIPLEX Service Centre at regular intervals (every 2-3 years), depending on the intensity of use. Regular functional and range checks are mandatory (see section 2.6 "Range check"...

  • Page 215: Appendix

    Appendix Appendix 10.1 Specifications PROFI TX PROFI TX PROFI TX Channels Model memories Transmission type M-LINK 2.4GHz spread spectrum + frequency hopping Servo pulse width at UNI 1.5 ± 0.55ms +/- 100% servo travel Power supply 3.3V LiFePO4 4000mAh Current consumption approx.

  • Page 216: Accessories

    Item No.: 75751 3-position ON/OFF/ON switch, short Item No.: 75752 3-position ON/OFF/ON switch, short Item No.: 75753 COPILOT Item No.: 45184 Digi-adjuster Item No.: 75755 Rotary knob Item No.: 75756 PROFI TX hand-rest Item No.: 85701 PROFI TX Seite 213...
  • Page 217 Transmitter case Item No.: 763323 Lanyard transmitter neckstrap Item No.: 85710 Standard transmitter neckstrap Item No.: 85711 Push-button Item No.: 75754 USB plug-in charger 100-240V Item No.: 145534 USB car plug-in charger 12V DC Item No.: 145533 PROFI TX Seite 214...

  • Page 218: Glossary Of Technical Terms

    This makes it easier to fly accurate turns. Control Any transmitter control which can be assigned to a control function or switched function: Sticks Slide potentiometers Rotary potentiometers Switches and their designated buttons Control function PROFI TX Seite 215...
  • Page 219 The correct trims are immediately available. If the PROFI TX is used with a model for which you have set up multiple flight phases, each flight phase has its own trim memory, i.e. it is simple to trim each flight phase accurately, and independently of the trims in the other phases.
  • Page 220 (Hold function). If Failsafe positions were stored in the receiver, the servos return to these positions after 0.75 seconds. This time setting is stored in the receiver. It can be edited using the MULTIPLEX Launcher. FastResponse Reduces the transmission cycle from 21ms to 14ms. This reduces the response time for control commands.
  • Page 221 Mixer For combining control functions (e.g. elevator, aileron, etc.) in various percentages. In the PROFI TX, 7 freely configurable mixers with 8 inputs each for mixing on the servo side. Mode Defines the assignment of the main control functions Aileron, Elevator, and Rudder to the stick units.
  • Page 222 "student" has gained sufficient skill. If individual control functions are transferred, the teacher retains control over the remaining control functions. When the TEACHER button is released, the teacher resumes full control of the model—typically if a dangerous situation PROFI TX Seite 219...
  • Page 223 Thus, unlike centre trim, the servo travel cannot be fully used. Variometer Device in the model aircraft that indicates the climbing and descending rate through audible signals. PROFI TX Seite 220...

  • Page 224: Index

    216, 218 mixer · 113 Airbrake · 58, 59, 63, 72 servo · 146, 218 Aux · 57, 73, 74, 80, 81, 82, 83, 85, 118, 119, 127, 172, throttle · 124, 125, 126, 127, 205, 219 PROFI TX Seite 221...
  • Page 225 · 23, 24, 30, 41, 44, 45, 46, 48, 49, 178 124, 138, 199 carry bars · 26, 27 ships & boats · 55, 82 carry handle · 27 tanks & tracked vehicles · 55, 84 PROFI TX Seite 222...
  • Page 226 · 51, 123, 215, 220 simulator mode · 176, 179, 180, 181 trim buttons · 50, 51, 216 software · 8, 9, 11, 87, 109, 116, 170, 173, 176, 177, 178 trim graph · 52, 115 stick PROFI TX Seite 223...
  • Page 227 Appendix PROFI TX Seite 224...

Table of Contents
