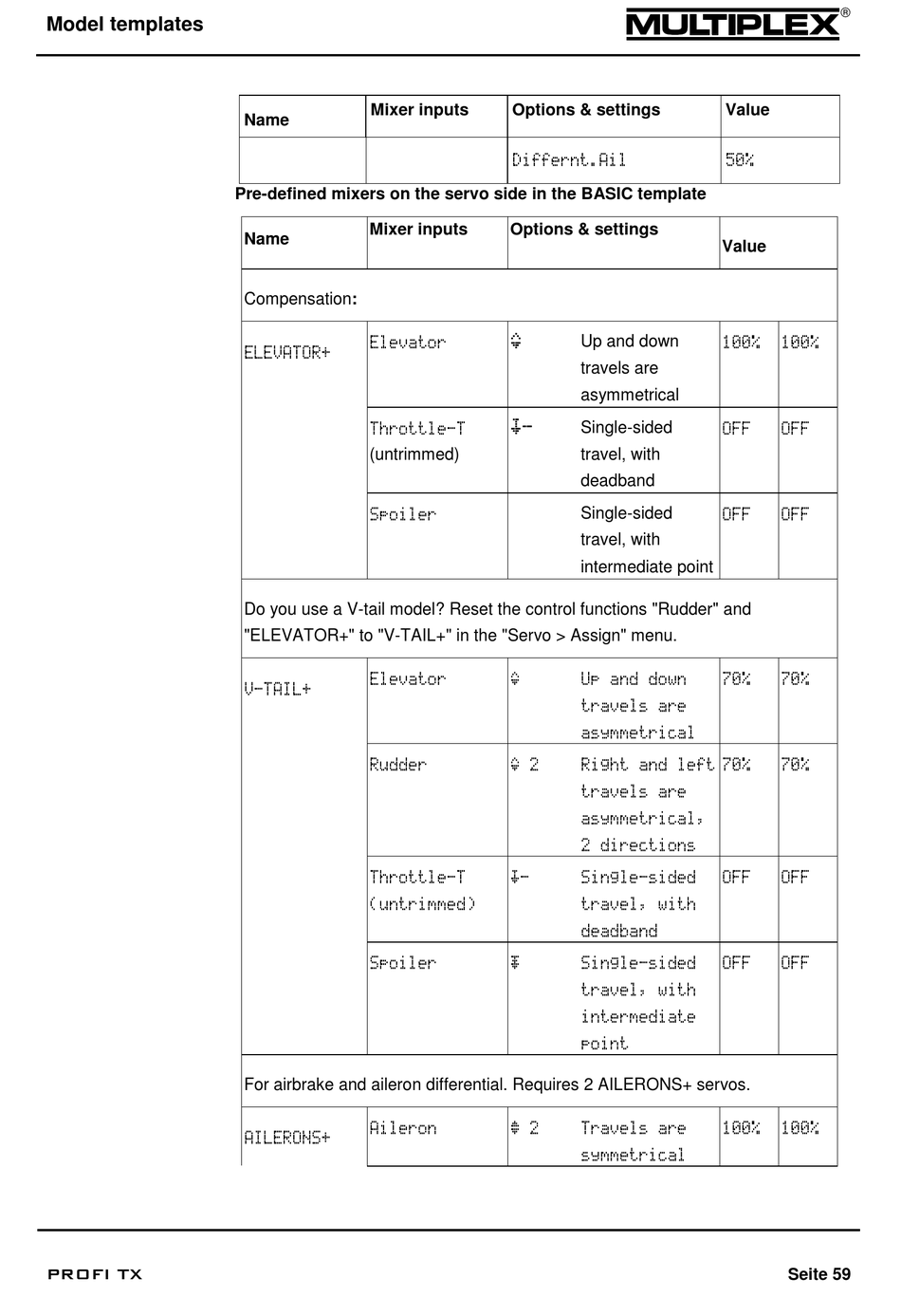

Model templates
PROFI TX
Mixer inputs
Name
Pre-defined mixers on the servo side in the BASIC template
Mixer inputs
Name
Compensation:
Elevator
ELEVATOR+
Throttle-T
(untrimmed)
Spoiler
Do you use a V-tail model? Reset the control functions "Rudder" and
"ELEVATOR+" to "V-TAIL+" in the "Servo > Assign" menu.
Elevator
V-TAIL+
Rudder
Throttle-T
(untrimmed)
Spoiler
For airbrake and aileron differential. Requires 2 AILERONS+ servos.
Aileron
AILERONS+
Options & settings
Differnt.Ail
Options & settings
š
Up and down
travels are
asymmetrical
›-
Single-sided
travel, with
deadband
Single-sided
travel, with
intermediate point
š Up and down
travels are
asymmetrical
š 2 Right and left
travels are
asymmetrical,
2 directions
›- Single-sided
travel, with
deadband
œ Single-sided
travel, with
intermediate
point
™ 2 Travels are
symmetrical
Value
50%
Value
100% 100%
OFF OFF
OFF OFF
70% 70%
70% 70%
OFF OFF
OFF OFF
100% 100%
Seite 59
