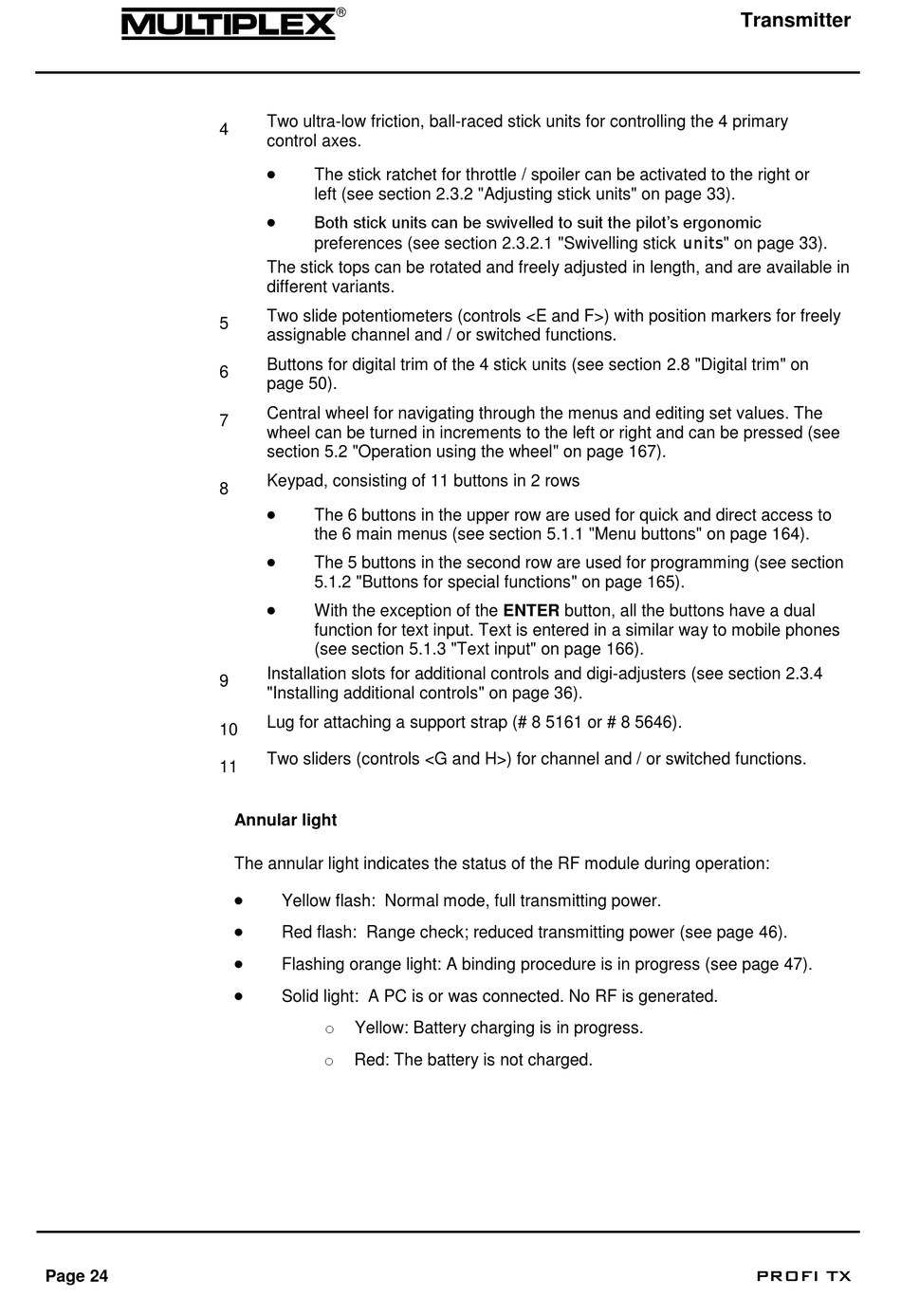

Two ultra-low friction, ball-raced stick units for controlling the 4 primary
4
control axes.

The stick ratchet for throttle / spoiler can be activated to the right or
left (see section 2.3.2 "Adjusting stick units" on page 33).

Both stick units can be swivelled to suit the pilot's ergonomic
preferences (see section 2.3.2.1 "Swivelling stick units" on page 33).
The stick tops can be rotated and freely adjusted in length, and are available in
different variants.
Two slide potentiometers (controls <E and F>) with position markers for freely
5
assignable channel and / or switched functions.
Buttons for digital trim of the 4 stick units (see section 2.8 "Digital trim" on
6
page 50).
Central wheel for navigating through the menus and editing set values. The
7
wheel can be turned in increments to the left or right and can be pressed (see
section 5.2 "Operation using the wheel" on page 167).
Keypad, consisting of 11 buttons in 2 rows
8

The 6 buttons in the upper row are used for quick and direct access to
the 6 main menus (see section 5.1.1 "Menu buttons" on page 164).

The 5 buttons in the second row are used for programming (see section
5.1.2 "Buttons for special functions" on page 165).

With the exception of the ENTER button, all the buttons have a dual
function for text input. Text is entered in a similar way to mobile phones
(see section 5.1.3 "Text input" on page 166).
Installation slots for additional controls and digi-adjusters (see section 2.3.4
9
"Installing additional controls" on page 36).
Lug for attaching a support strap (# 8 5161 or # 8 5646).
10
Two sliders (controls <G and H>) for channel and / or switched functions.
11
Annular light
The annular light indicates the status of the RF module during operation:

Yellow flash: Normal mode, full transmitting power.

Red flash: Range check; reduced transmitting power (see page 46).

Flashing orange light: A binding procedure is in progress (see page 47).

Solid light: A PC is or was connected. No RF is generated.
o
Yellow: Battery charging is in progress.
o
Red: The battery is not charged.
