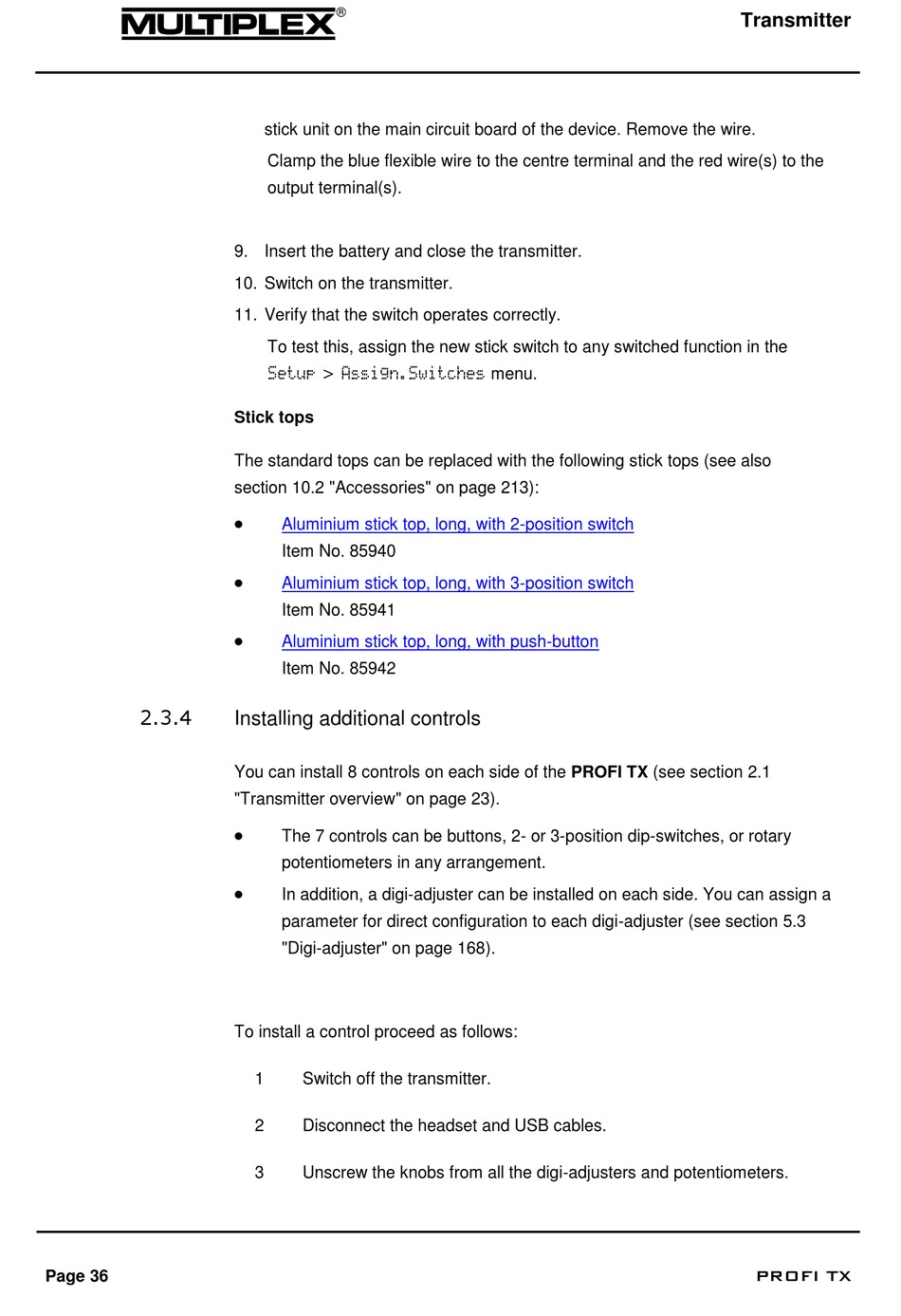

stick unit on the main circuit board of the device. Remove the wire.
Clamp the blue flexible wire to the centre terminal and the red wire(s) to the
output terminal(s).
9. Insert the battery and close the transmitter.
10. Switch on the transmitter.
11. Verify that the switch operates correctly.
To test this, assign the new stick switch to any switched function in the
Setup > Assign.Switches menu.
Stick tops
The standard tops can be replaced with the following stick tops (see also
section 10.2 "Accessories" on page 213):

Aluminium stick top, long, with 2-position switch
Item No. 85940

Aluminium stick top, long, with 3-position switch
Item No. 85941

Aluminium stick top, long, with push-button
Item No. 85942

Installing additional controls

You can install 8 controls on each side of the PROFI TX (see section 2.1
"Transmitter overview" on page 23).

The 7 controls can be buttons, 2- or 3-position dip-switches, or rotary
potentiometers in any arrangement.

In addition, a digi-adjuster can be installed on each side. You can assign a
parameter for direct configuration to each digi-adjuster (see section 5.3
"Digi-adjuster" on page 168).
To install a control proceed as follows:
1 Switch off the transmitter.
2 Disconnect the headset and USB cables.
3 Unscrew the knobs from all the digi-adjusters and potentiometers.
