Throttle (Helicopter) - Multiplex Profi TX Operating Instructions Manual

4.4.3
Page 124

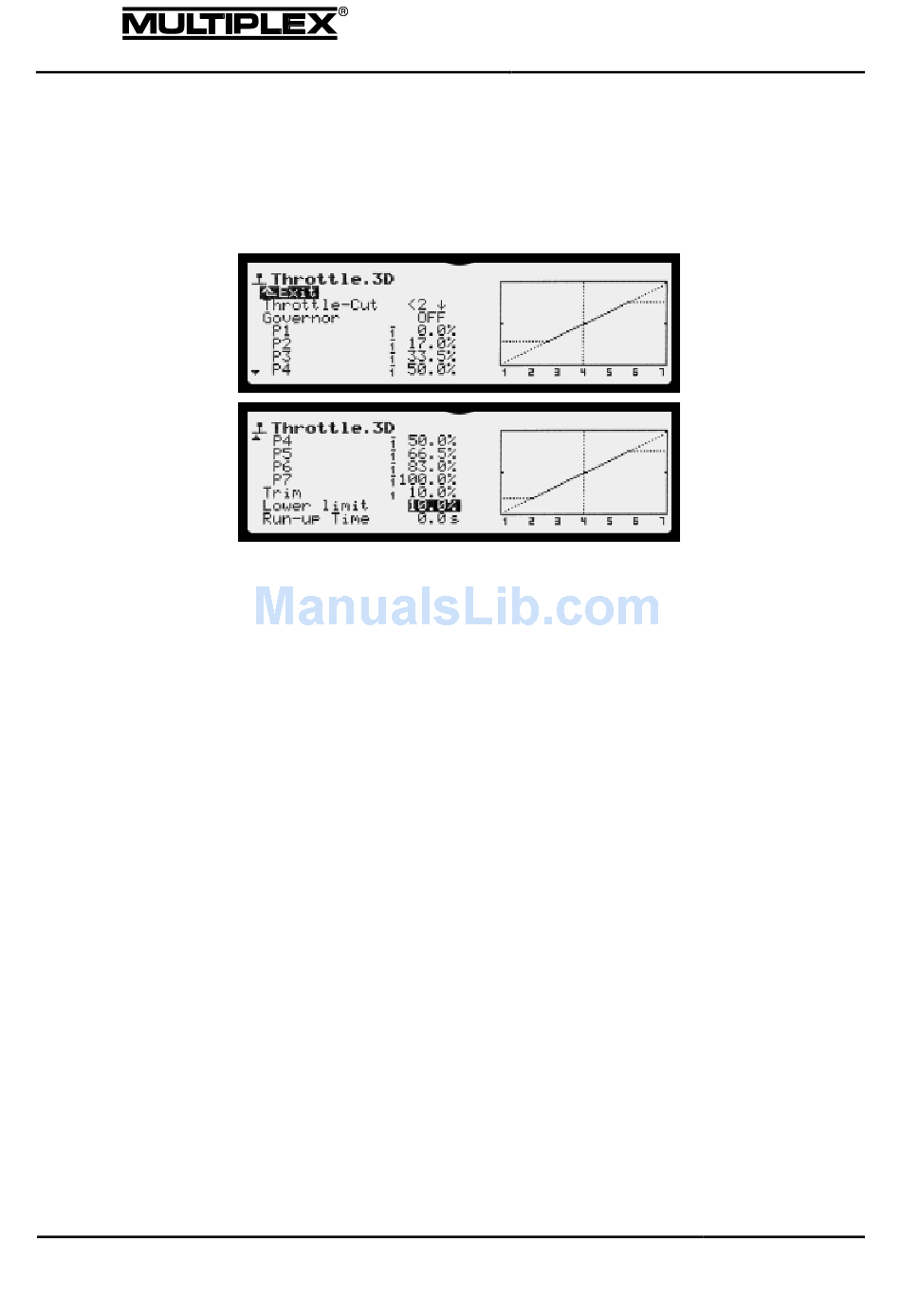

Throttle (helicopter)

The Throttle control function provides the following functions for the templates
eHELI FBL, eHELIccpm, HELIccpm, and HELImech.:
Governor
Choose between throttle curve or controller with active Governor mode
(speed controller).
OFF
The throttle curve is used. Individual curves are used for each flight
phase.
ON
A controller with active Governor mode is used: Each flight phase
has a fixed value.
Governor OFF
P1 to P7
7-point curve, flight phase specific:
0.0% to 100.0% (= full throttle) for all points on the curve P1 to
P7.
Resolution: 0.5%.
Exception: In the auto-rotation flight phase (AUTOROT) all curve points
have the same values.
Refer to section 4.4.3.1 "Throttle curves (Governor OFF)" on page 125
for a description of the throttle curves.
Governor ON
Throttle
Fixed value, flight phase specific: 0.0% to 100.0%
