Big Scale Model Template - Multiplex Profi TX Operating Instructions Manual

Model templates
3.1.6
Figure 13:
PROFI TX

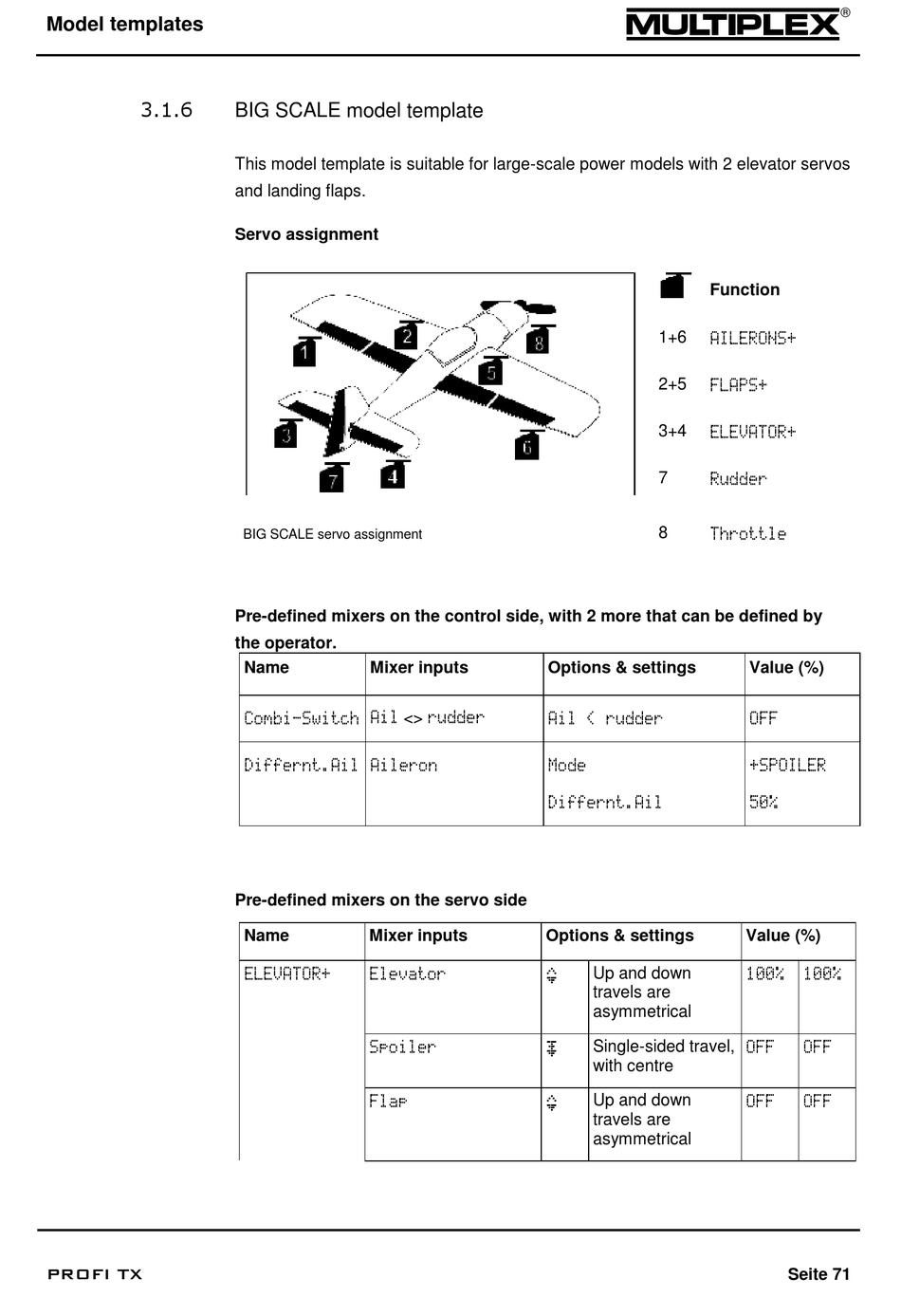

BIG SCALE model template

This model template is suitable for large-scale power models with 2 elevator servos
and landing flaps.
Servo assignment
BIG SCALE servo assignment
Pre-defined mixers on the control side, with 2 more that can be defined by
the operator.
Name Mixer inputs
Combi-Switch Ail <> rudder
Differnt.Ail Aileron
Pre-defined mixers on the servo side
Name Mixer inputs
ELEVATOR+ Elevator
Spoiler
Flap
Function
1+6 AILERONS+
2+5 FLAPS+
3+4
ELEVATOR+
7 Rudder
8
Throttle
Options & settings
Ail < rudder
Mode
Differnt.Ail
Options & settings
Up and down
š
travels are
asymmetrical
Single-sided travel,
œ
with centre
Up and down
š
travels are
asymmetrical
Value (%)
OFF
+SPOILER
50%
Value (%)
100% 100%
OFF OFF
OFF OFF
