Operating The Transmitter; Operation Using The Keypad; Menu Buttons - Multiplex Profi TX Operating Instructions Manual

5
5.1
Figure 17:
5.1.1
Page 164

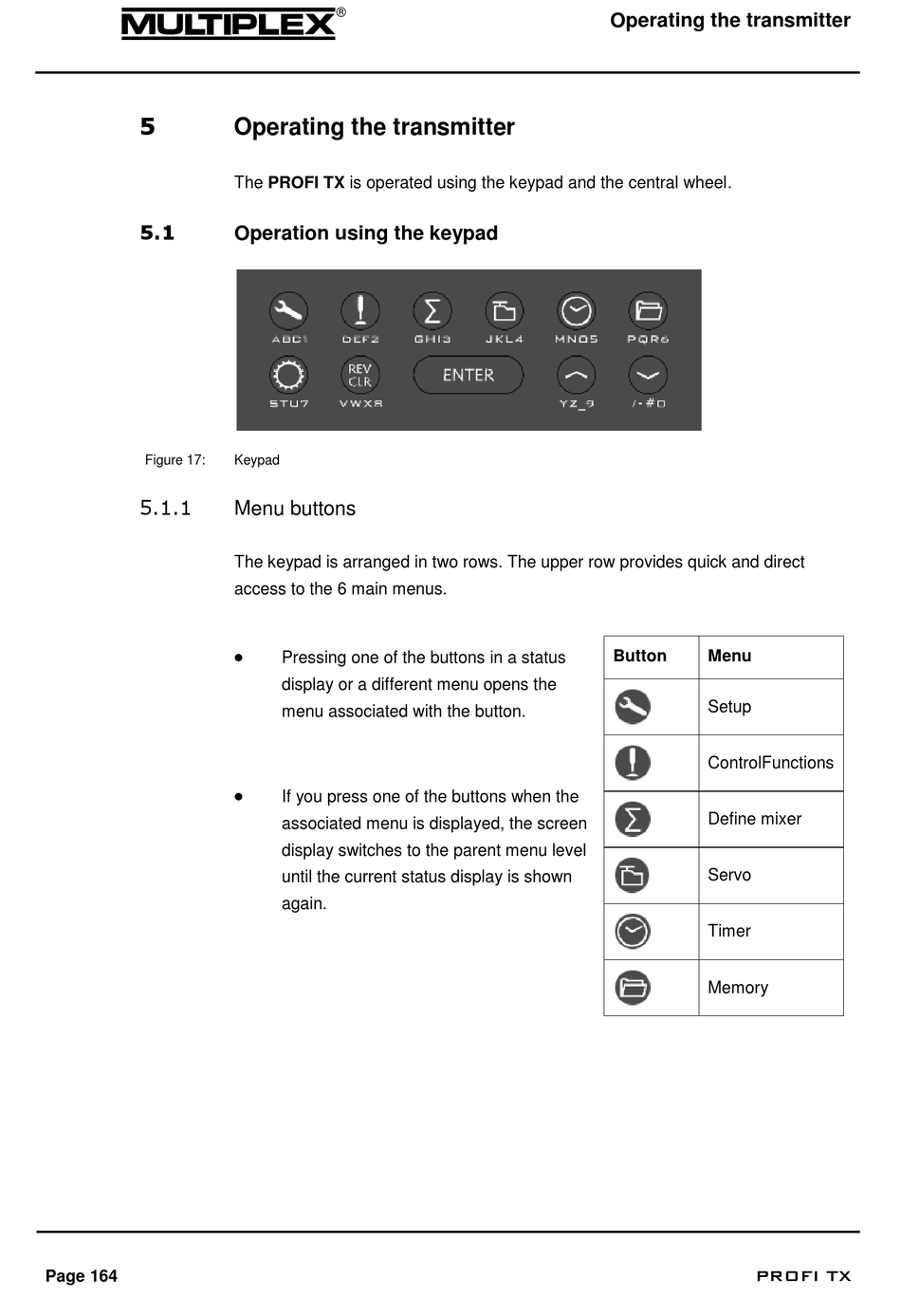

Operating the transmitter

The PROFI TX is operated using the keypad and the central wheel.

Operation using the keypad

Keypad

Menu buttons

The keypad is arranged in two rows. The upper row provides quick and direct
access to the 6 main menus.

Pressing one of the buttons in a status
display or a different menu opens the
menu associated with the button.

If you press one of the buttons when the
associated menu is displayed, the screen
display switches to the parent menu level
until the current status display is shown
again.
Operating the transmitter
Button Menu
Setup
ControlFunctions
Define mixer
Servo
Timer
Memory
PROFI TX
