Page 112
›

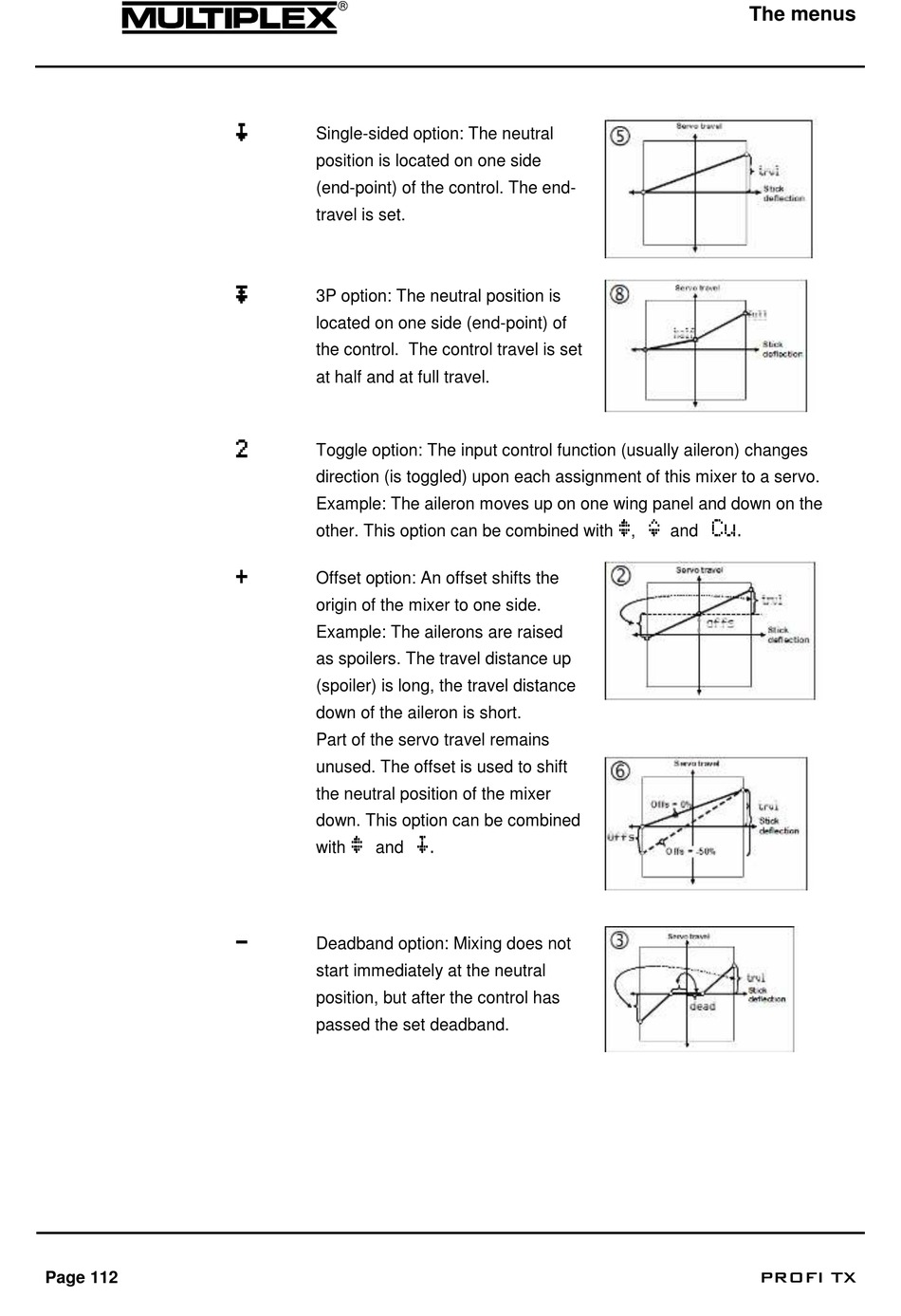

Single-sided option: The neutral
position is located on one side
(end-point) of the control. The end-
travel is set.
œ
3P option: The neutral position is
located on one side (end-point) of
the control. The control travel is set
at half and at full travel.
2
Toggle option: The input control function (usually aileron) changes
direction (is toggled) upon each assignment of this mixer to a servo.
Example: The aileron moves up on one wing panel and down on the
other. This option can be combined with
+
Offset option: An offset shifts the
origin of the mixer to one side.
Example: The ailerons are raised
as spoilers. The travel distance up
(spoiler) is long, the travel distance
down of the aileron is short.
Part of the servo travel remains
unused. The offset is used to shift
the neutral position of the mixer
down. This option can be combined
™
with and
-
Deadband option: Mixing does not
start immediately at the neutral
position, but after the control has
passed the set deadband.
› .
The menus
™ š Cu
.
, and
PROFI TX
